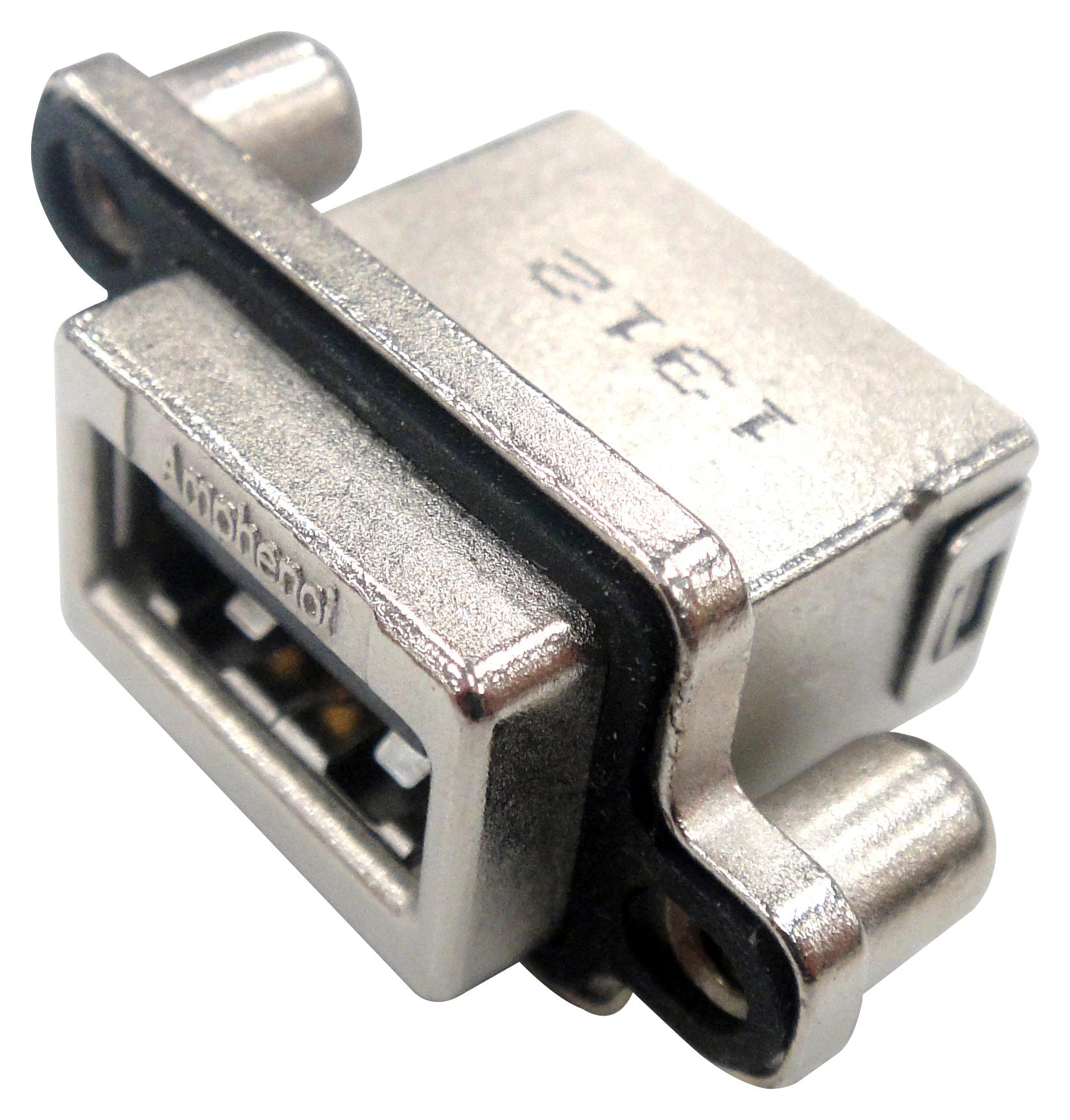

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRA11140 USB Receptacle
This rugged USB Series A receptacle features a single port, right-angle PCB tail, and durable diecast zinc alloy shell with nickel plating. It offers IP67 environmental sealing, high temperature resistant engineering thermoplastic housing, and conforming RoHS compliance. Suitable for industrial and automation applications, it supports a current rating of 1.5 amperes, with gold and nickel plated contacts for reliable connectivity. The design includes screw threading options, dust covers, and gasket for added protection. Ideal for secure, high-performance connector installations requiring durability and environmental resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRA11140 USB Receptacle Specifications:
- Material: Diecast zinc alloy shell, nickel plated
- Contacts: Phosphor bronze, 0.76 um gold plated, 50 um nickel on mating area
- Housing: Engineering thermoplastic, UL94V-0 flammability rating, black
- Sealing: IP67 environmental performance with conductive silicone rubber gasket
- Dust Cover: Silicone rubber with nickel plated brass bushing, color options available
- Current Rating: 1.5 amperes
- Contact Resistance: Max 30 milliohms
- Operating Temperature: -40°C to +105°C
- Thread Options: #4-40 UNC, M3 x 0.5, low profile variants
- Mounting Holes: Four deep threaded holes, diameter 6.35 mm (0.25 inches)
- Dimensions: Shell length 18.00 mm, panel cutout recommended 24.00 mm x 16.55 mm
- Environmental Resistance: Sealed to IEC 60529 IP67 standards
Buy the Buy Amphenol Rugged USB Series A Part Number MUSBRA11140 Online
Experience the reliability and durability of the Amphenol rugged USB Series A receptacle with IP67 sealing, high-temperature resistant thermoplastic housing, and versatile mounting options. Designed for industrial, automation, and harsh environment applications, it offers secure connection performance with gold and nickel plated contacts for longevity. Easily install using threaded options and protective dust covers, ensuring environmental resistance and performance stability. Order online now to secure high-quality, dependable connectors for your critical projects with fast delivery and competitive pricing.
Order your Amphenol Series A rugged USB MUSBRA11140 today and ensure your industrial projects benefit from high-quality, environmentally sealed connectors.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRA11140?
You can click on the BUY or RFQ button to purchase MUSBRA11140 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MUSBRA11140?
You can download the MUSBRA11140 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MUSBRA11140?
AMPHENOL COMMUNICATIONS SOLUTIONS
