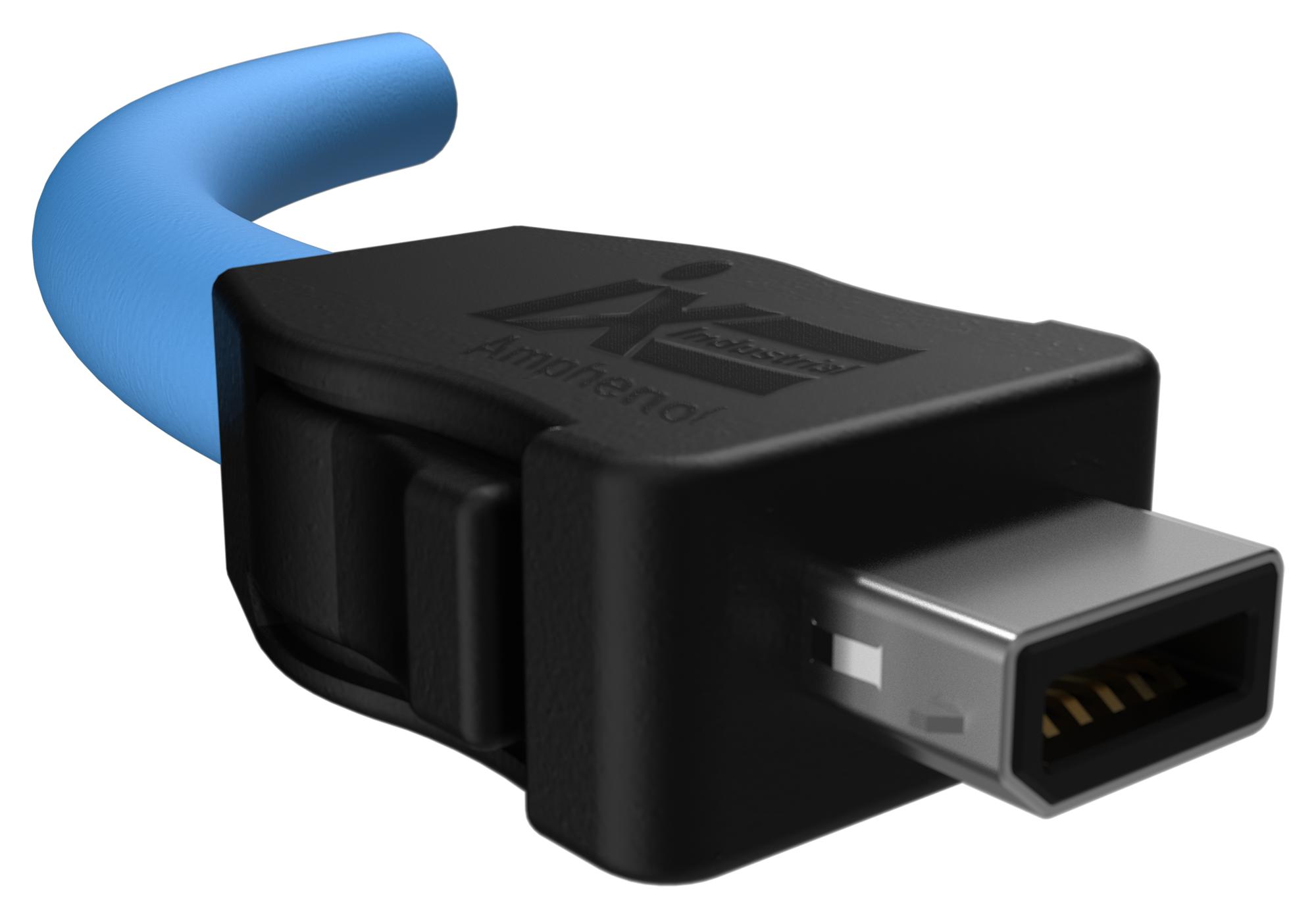

AMPHENOL COMMUNICATIONS SOLUTIONS ND9ACA2A0A Industrial Ethernet Connector
The ND9ACA2A0A is a rugged, high-performance industrial connector designed for reliable Ethernet and industrial protocol connections in noisy environments. Featuring a 10mm pitch, 2-point metal latches, and Cat6A 10GBASE-T capabilities, it supports PoE and EMI shielding for enhanced data integrity. Constructed with durable materials like stainless steel and gold-plated contacts, it ensures long-term durability up to 5000 mating cycles. Ideal for factory automation, IoT, robotics, and automation systems requiring secure, high-density, and robust interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS ND9ACA2A0A Industrial Ethernet Connector Specifications:
- Material: External Shields: Stainless steel, nickel plated (plugs) or tin plated (receptacles); Insulators: Thermoplastic, UL94V-0; Contacts: Copper alloy plated with gold over nickel
- Electrical Performance: Current Rating: 1.5A @ 40°C; Voltage Rating: 50V AC max., 60V DC max; Initial Contact Resistance: 30mΩ max.; Shielding Resistance: 100mΩ max.
- Mechanical Performance: Insertion/Withdrawal Force: 25N max.; Pull-Out Force: 80N min.; Mechanical Shock: 300m/s²; Vibration: 10Hz — 500Hz, 0.35mm; Durability: 5000 mating cycles
- Environmental: Operating Temperature Range: -55°C to +85°C; Thermal Shock: 10 cycles -55°C to +85°C; Humidity: 93% at 25°C; Approval: ROHS, UL pending
Buy the Amphenol ND9ACA2A0A – Reliable Industrial Ethernet Connector for Industrial Applications
Purchase the Amphenol ND9ACA2A0A industrial Ethernet connector online today to ensure secure, high-speed data transfer in factory automation, robotics, and IoT applications. This connector offers excellent EMI shielding, robust mating latches, and a durable construction for long-term performance. Easy to install with field terminable options and designed to support high data rates up to 10GBASE-T with PoE capabilities. Enhance your industrial networking setup by ordering this high-quality, fully intermateable connector from authorized suppliers now.
Buy Amphenol ND9ACA2A0A now and experience unmatched reliability and performance in industrial networking and automation systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ND9ACA2A0A?
You can click on the BUY or RFQ button to purchase ND9ACA2A0A from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ND9ACA2A0A?
You can download the ND9ACA2A0A datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ND9ACA2A0A?
AMPHENOL COMMUNICATIONS SOLUTIONS
