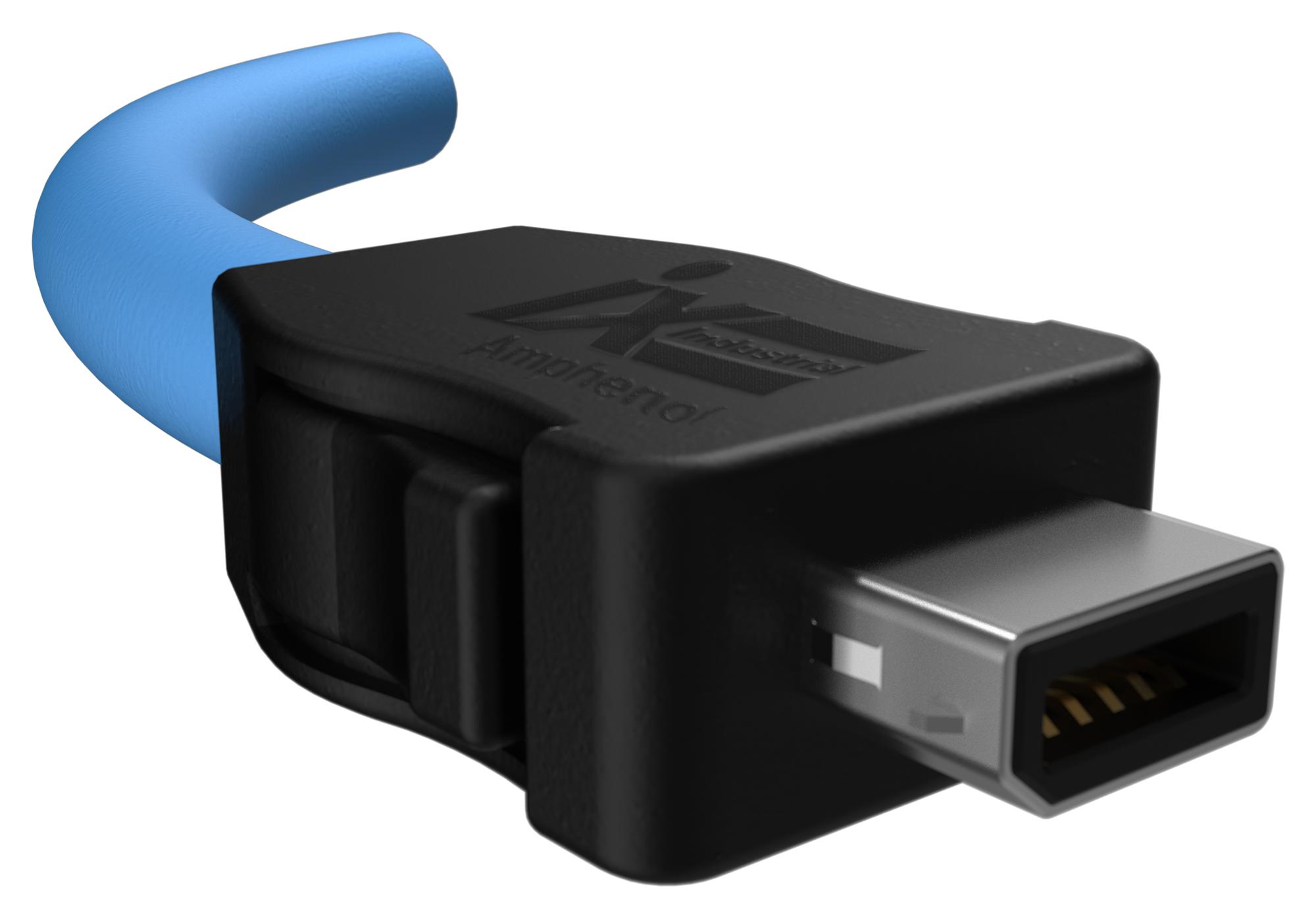

AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA250B Industrial Connector
The ND9BCA250B is a robust and secure industrial connector designed for high-performance IoT and automation applications. Featuring a 10mm pitch, it supports data speeds up to 10GBASE-T with PoE capability and excellent EMI shielding for noisy environments. Made with stainless steel and thermoplastic insulators, it ensures durability with 5000 mating cycles, and employs a 2-point metal latch for secure connection. Suitable for factory automation, robotics, and medical equipment, it provides reliable performance and easy field termination with IDC or solder options.
AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA250B Industrial Connector Specifications:
- Material: External Shields stainless steel, nickel plated (plugs) or tin plated (receptacles); Insulators thermoplastic UL94V-0; Contacts copper alloy gold over nickel
- Mechanical: Insertion/Withdrawal Force max 25N; Pull-Out Force min 80N; Durability 5000 mating cycles; Shock 300m/s²; Vibration 10Hz-500Hz, 0.35mm
- Electrical: Current 1.5A at 40°C; Voltage max 50V AC/60V DC; Initial Contact Resistance max 30mΩ; Shielding Resistance max 100mΩ; Insulation Resistance min 500MΩ; Dielectric withstand 500V DC
- Environmental: Temperature range -55°C to +85°C; Thermal shock 10 cycles; Humidity up to 93% at high temperature; RoHS compliant; UL pending
- Packaging: Tray, carton, tape & reel options; field termination via IDC or solder; with 5000 mating cycle life for high durability
Buy the Amphenol Series IX Industrial IoT Connectors: ND9BCA250B
Enhance your industrial automation and IoT setups with the durable and secure Amphenol Industrial Connector. Featuring a compact 10mm pitch, it supports high-speed data transmission up to 10GBASE-T with PoE capabilities and outstanding EMI protection. Designed for harsh environments, it withstands up to 5000 mating cycles with a sturdy metal latch, ensuring reliable connections in factory automation, robotics, and medical equipment. Field termination options with IDC or solder make installation flexible and efficient. Secure your industrial connections today online for seamless operation.
Order your Amphenol Series IX Industrial IoT Connector ND9BCA250B today and ensure reliable, high-speed connectivity for your automation projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA250B?
You can click on the BUY or RFQ button to purchase ND9BCA250B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ND9BCA250B?
You can download the ND9BCA250B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ND9BCA250B?
AMPHENOL COMMUNICATIONS SOLUTIONS
