A Premier B2B Part Search

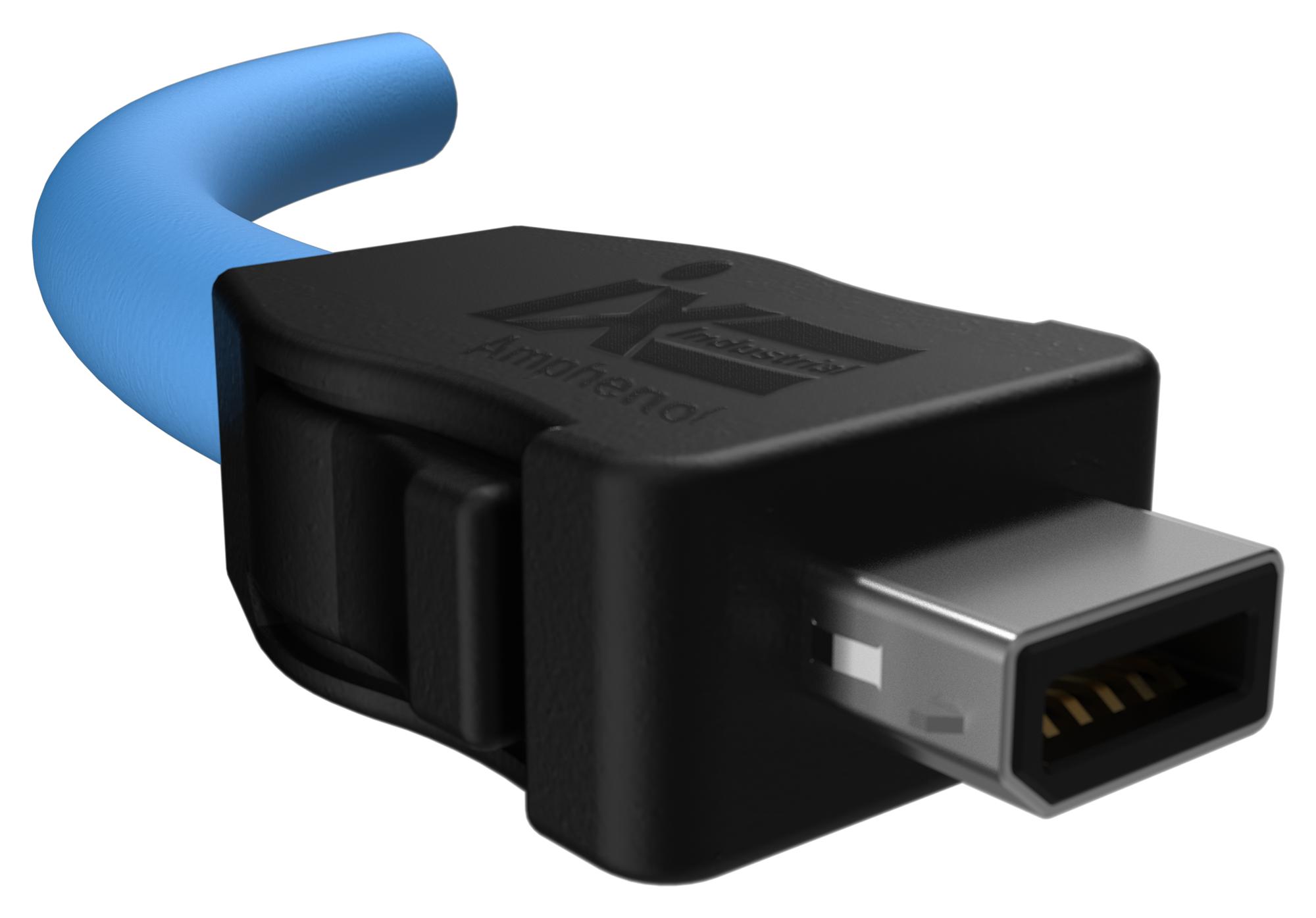

AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2E0B industrial Ethernet connector
The ix Industrial P20 Connectors are compact, high-performance industrial Ethernet connectors designed for IoT applications. Featuring a 10mm pitch, these connectors offer 10GBASE-T performance with PoE capability, enhanced EMI shielding, and robust metal latches for secure mating. Made from durable materials like stainless steel and thermoplastic with gold-plated contacts, they support 5000 mating cycles and are fully intermateable with other vendor products. Ideal for factory automation, industrial networking, and IoT solutions, these connectors provide reliable, high-speed data transfer in noisy environments.
AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2E0B industrial Ethernet connector Specifications:
- Material: Stainless steel, nickel plated (plugs), tin plated (receptacles); Thermoplastic, UL94V-0; Copper alloy contacts with gold over nickel
- Mechanical Performance: Insertion/Withdrawal Force max 25N, Pull-Out Force min 80N, Durability 5000 mating cycles, Shock resistance 300m/s², Vibration 10Hz-500Hz, 0.35mm
- Electrical Performance: Current Rating 1.5A @ 40°C, Voltage Rating 50V AC / 60V DC, Contact Resistance max 30mΩ, Shielding Resistance max 100mΩ, Insulation Resistance min 500MΩ @ 500V DC, Dielectric Voltage 500V DC
- Environmental: Operating temperature -55°C to +85°C, Thermal shock, humidity 93%, compliant with IEC 61076-3-124, RoHS, UL pending
- Packaging: Tray, Carton, Tape & Reel
- Standards & Certifications: IEC 61076-3-124, RoHS, UL Pending
Buy the Amphenol ND9BCA2E0B – Reliable Industrial Ethernet Connectors for IoT Applications
Discover the high-performance Amphenol ND9BCA2E0B industrial Ethernet connector designed for IoT and factory automation. featuring 10mm pitch, 10GBASE-T data rate, PoE support, and superior EMI shielding. Made from durable stainless steel and thermoplastic with gold-plated contacts, it ensures reliable, secure connections and withstands demanding industrial environments. Easy to install with field termination options, these connectors support 5000 mating cycles, providing long-term durability for industrial networking, automation, robotics, and smart building projects. Perfect for high-density, industrial settings requiring high-speed data transfer.
Order your Amphenol ND9BCA2E0B series connectors today and enhance your industrial IoT and automation projects with high-speed, secure connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2E0B?
You can click on the BUY or RFQ button to purchase ND9BCA2E0B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ND9BCA2E0B?
You can download the ND9BCA2E0B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ND9BCA2E0B?
AMPHENOL COMMUNICATIONS SOLUTIONS
