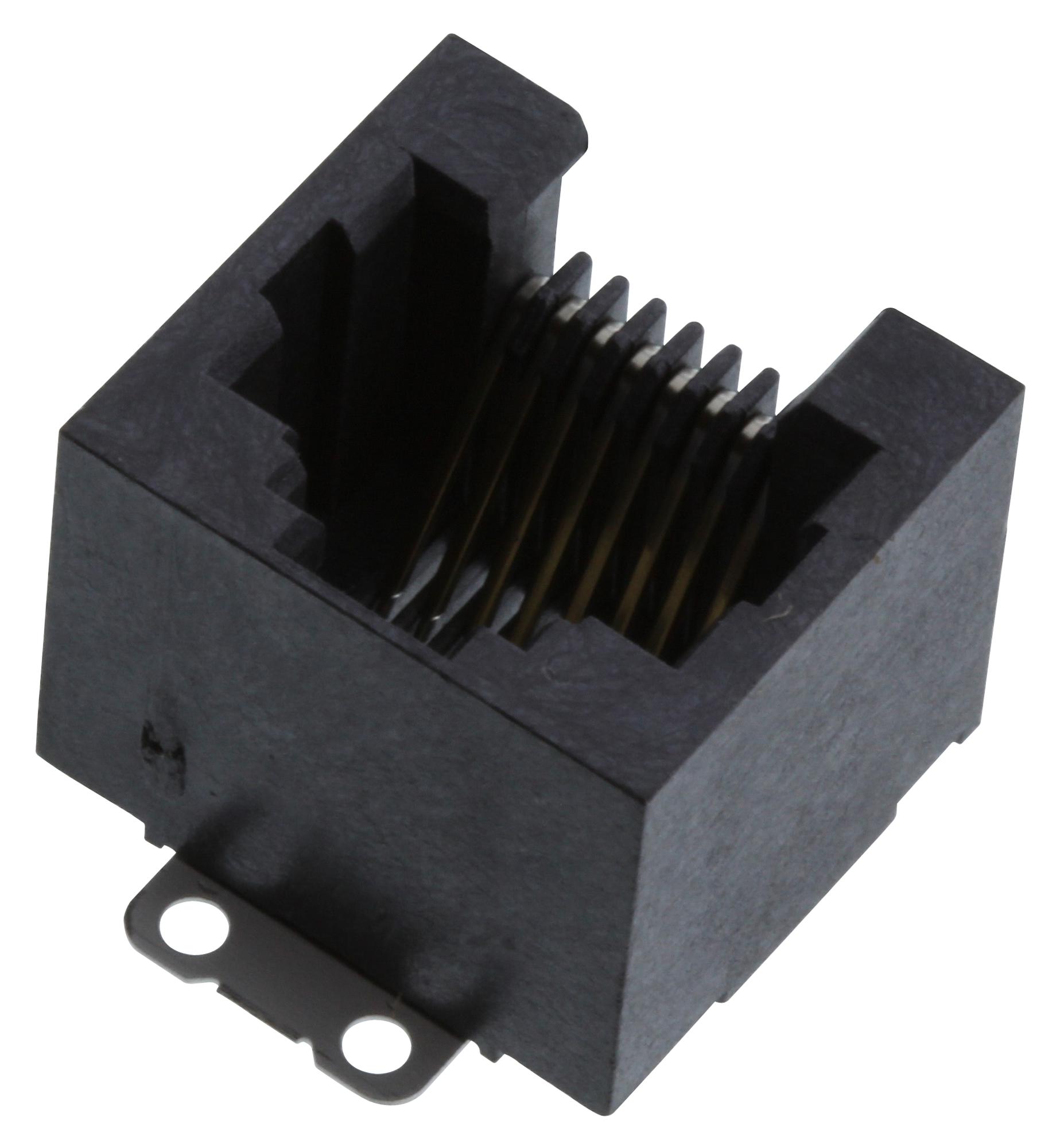

AMPHENOL COMMUNICATIONS SOLUTIONS RJE231880413T Ethernet Connector
The RJE23-188-4P4C shielded connector offers reliable Ethernet connectivity with shielding for enhanced EMI performance. Designed for surface-mount applications, it supports 8P8C configurations with high durability for over 750 mating cycles. Made with high-temperature thermoplastic insulation and metal contacts plated in gold over nickel, this connector withstands temperatures from -40°C to +85°C. Suitable for networking, telecom, industrial, and military applications, it ensures secure and robust connections with a rated current of 1.5 Amps and voltage of 125V AC. It complies with UL standards and RoHS regulations.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE231880413T Ethernet Connector Specifications:
- Connector Type: Surface Mount, Shielded
- Position: 8P8C (RJ45 compatible)
- Sockets: Single port, surface mount
- Material: High-temp thermoplastic insulator, stainless steel shield
- Contact Material: Gold over nickel plated copper alloy
- Contact Resistance: 20 mΩ maximum
- Insulation Resistance: 500 MQ minimum at 500V DC
- Current Rating: 1.5 Amps per contact
- Voltage Rating: 125 Volts AC
- Temperature Range: -40°C to +85°C
- Durability: 750 mating cycles
- UL File Number: E136228
- RoHS Compliance: Yes
- Soldering: Wave and reflow compatible, peak at 260°C for 5 seconds
- Dimensions: Standard surface-mount footprint
Buy the Amphenol Series RJE23 Ethernet Connector: RJE231880413T
Purchase the Amphenol RJE23-188-4P4C shielded Ethernet connector online today for high-performance networking applications. Designed for surface-mount installation, it offers superior EMI shielding, high durability with 750 mating cycles, and operates reliably across -40°C to +85°C. Made with high-temp thermoplastic and gold-plated contacts, ensuring secure and stable connections in industrial, telecom, and military environments. Easy to install with wave and reflow soldering, meeting UL and RoHS standards for quality and safety.
Get Amphenol RJE23-188-4P4C shielded connector today—built for reliable Ethernet connections, EMI shielding, and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE231880413T?
You can click on the BUY or RFQ button to purchase RJE231880413T from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE231880413T?
You can download the RJE231880413T datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE231880413T?
AMPHENOL COMMUNICATIONS SOLUTIONS
