AMPHENOL COMMUNICATIONS SOLUTIONS RJE481881411 Ethernet Modular Jack
The RJE48 series modular jacks by Amphenol are designed for CAT5e Ethernet networking applications, supporting Gigabit protocols. Available in single and four-port configurations with shielding and LED indicators, these connectors enhance EMI performance and facilitate link activity and speed verification. They meet industry standards like EIA-568-C.2, ensuring reliable performance in networking, telecom, servers, consumer electronics, and industrial equipment. Constructed with high-temp thermoplastic insulators, phosphor bronze contacts, and matte tin-plated solder tails, these durable connectors operate from -55°C to +85°C.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE481881411 Ethernet Modular Jack Specifications:
- Contact resistance: 20 mΩ max
- Insulation resistance: 500 MΩ min at 500V DC
- Current rating: 1.25 Amps
- Voltage rating: 125 Volts AC, 1000 VAC DC with surge protection
- Operating temperature: -55°C to +85°C
- Durability: 750 mating cycles
- Material: High Temp thermoplastic, phosphor bronze with gold and tin plating, stainless steel tails
- LED: Forward voltage up to 2.6V, wavelengths 587 nm (yellow), 565 nm (green), 625 nm (red)
- Dimensions: Modular design, shielding and LED options available
- Compliance: RoHS

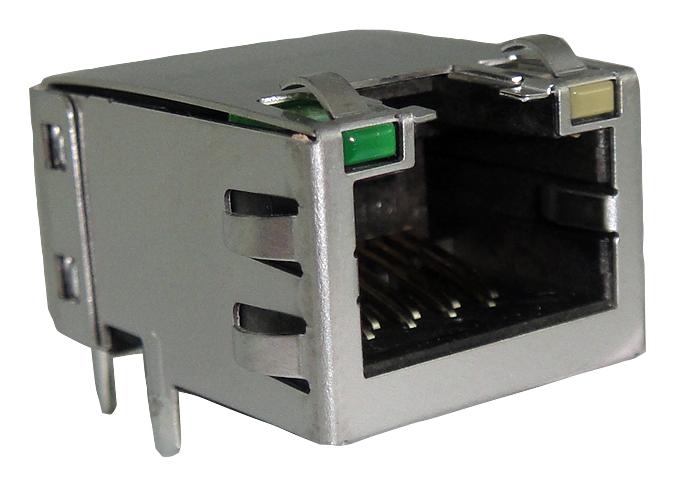

Buy the Amphenol Series RJE48 Ethernet Jack: RJE48-188-1X51
Upgrade your networking infrastructure with the Amphenol RJE48-188-1X51 Ethernet modular jack. Designed for CAT5e applications, it supports gigabit speeds and features shielding and LED indicators for easy network diagnostics. Built with durable high-temperature thermoplastic and corrosion-resistant contacts, this connector ensures long-lasting performance in various environments. Its slim design allows easy integration into panels and enclosures. Perfect for telecom, industrial, consumer, and professional networking setups, ensuring reliable data transmission, EMI protection, and network monitoring for modern digital systems.
Buy Amphenol RJE48-188-1X51 modular jack now and experience unmatched reliability, EMI shielding, and network performance in your Ethernet installations.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE481881411?
You can click on the BUY or RFQ button to purchase RJE481881411 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE481881411?
You can download the RJE481881411 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE481881411?
AMPHENOL COMMUNICATIONS SOLUTIONS
