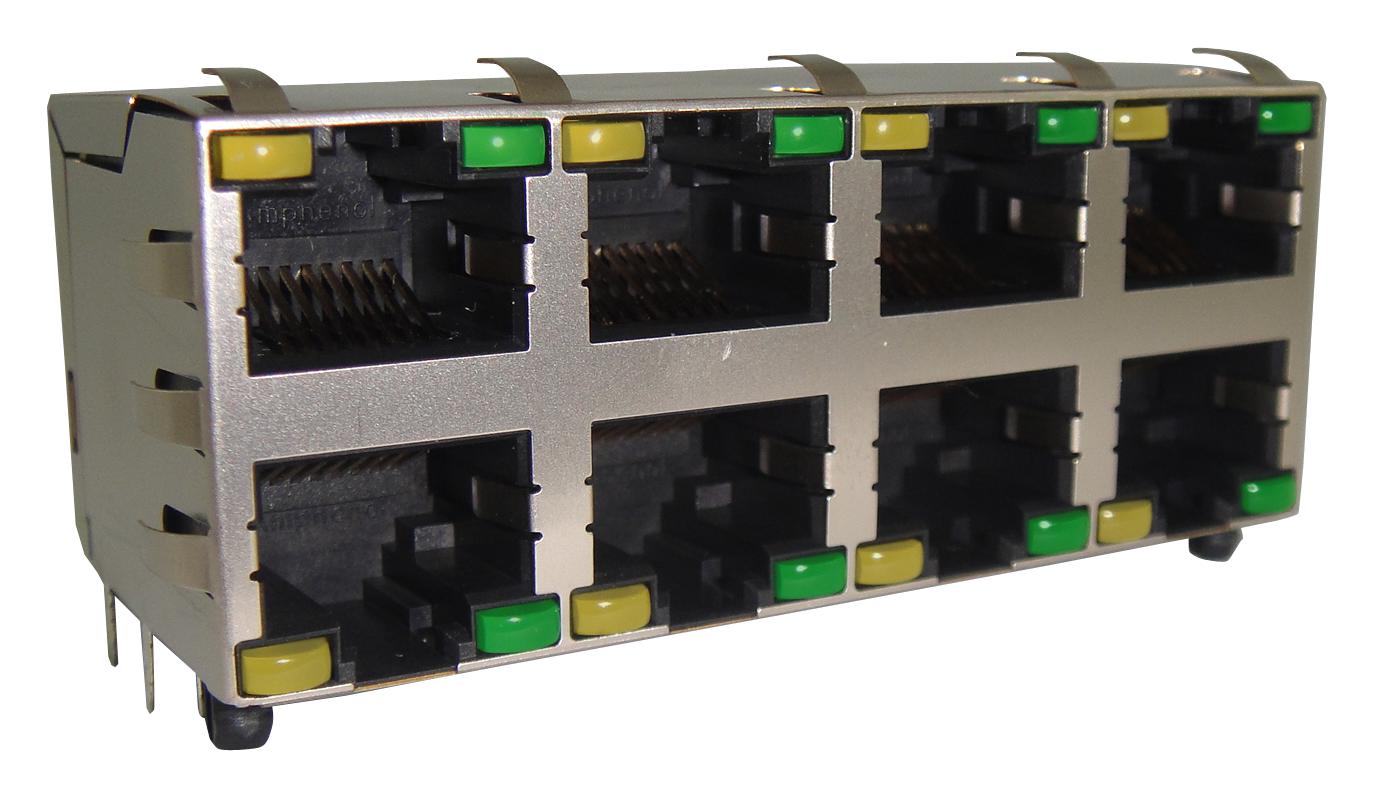

AMPHENOL COMMUNICATIONS SOLUTIONS RJSNE538108 Modular Jack
The RJSNE-X38X—08X is a shielded, stackable modular jack featuring 2x4 ports and 8 contacts, designed for industrial and electronic applications. It includes LED indicators for status signaling, with gold-plated contacts for reliable connectivity and nickel underplate for corrosion resistance. Crafted from high-temperature thermoplastic, it complies with UL 94V-0 flammability standards. The connector dimensions, hole layout, and material specifications facilitate easy installation on PCBs, making it ideal for networking and communication systems requiring durability and precise connection features.
AMPHENOL COMMUNICATIONS SOLUTIONS RJSNE538108 Modular Jack Specifications:
- Housing: High-temperature thermoplastic, black, UL 94V-0 flammability rating
- Contact Material: Phosphor bronze with gold plating on mating area, nickel underplate
- Contact Thickness: 6u
- 15
- 50
- 50
- 6
- 15
- 50
- 0.89
- 0.28
- 2.1
- 2.589
- 2.5
- 64.13
- 65.75
- 2.54
- 1.78
- 2.91
- 50.04
- 93.25
- 0.51
- 0.25
- 265
- 10
- 8
- 8
- 8
- 8
- Connector Dimensions: Length 2.589 inches minimum, width 2.500 inches, height 0.89 inches
- Hole Layout: 2x4 ports, 8 contacts, PCB hole layout includes 2.54 mm (0.100 inch) through holes, no traces or ink marking allowed
- Connectors: Gold-plated contacts, nickel underplate, shielded, multiple LED color options (color specifics referenced elsewhere)
- Soldering Temperature: Recommended peak wave soldering at 265°C max for 10 seconds
- Material: Copper alloy shield, matte-tin or gold flash on contact tails, copper alloy shield
- Other Features: RoHS compliant, shielded, designed for PCB mounting, with spacing suitable for modular stacking, IP protected design
Buy the Amphenol RJSNE-X38X-08X – Reliable Modular Jack for Industrial Applications
Order the Amphenol RJSNE-X38X-08X modular jack online today and benefit from high-quality, durable connections suitable for industrial networking, PCB mounting, and communication systems. This shielded, stackable design features 8 gold-plated contacts, LED indicators for easy status monitoring, and a robust thermoplastic housing that meets UL 94V-0 standards for safety. With precise dimensions, PCB hole layout, and RoHS compliance, it ensures reliable installation and long-lasting operation in demanding environments. Enhance your electronic assemblies now!
Buy Amphenol RJSNE-X38X-08X now and experience unmatched reliability and performance in networking connectors.
