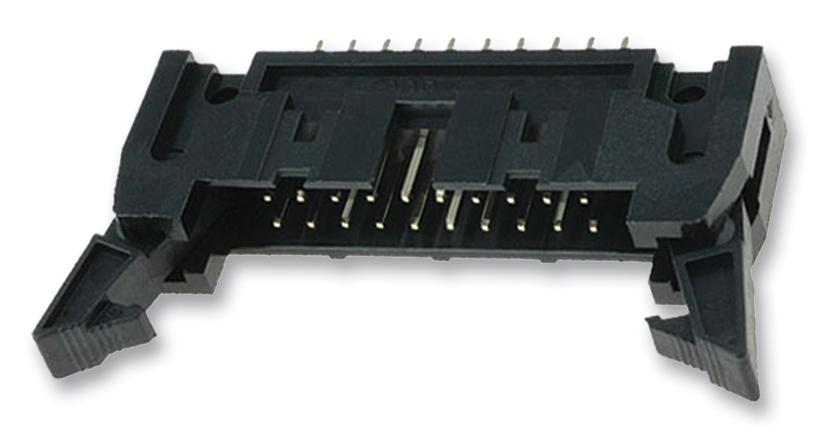

AMPHENOL COMMUNICATIONS SOLUTIONS T816112A1S101CEU Phenol latch header
The T816 phenol latch header is a 2.54mm pitch connector suitable for various electronic assembly applications. Made with PBT+25% G.F insulators complying with UL 94V-0, it features brass contacts plated with gold or tin over 50u” Ni for enhanced conductivity and corrosion resistance. Available in configurations of 6 to 64 positions, it offers straight, right-angled, or long latch options. It supports a maximum current of 3.0A, voltage rating of 250V AC/DC, and operates within a temperature range of -40°C to +105°C, making it ideal for reliable circuit connections.
AMPHENOL COMMUNICATIONS SOLUTIONS T816112A1S101CEU Phenol latch header Specifications:
- Pitch: 2.54mm
- Number of Positions: 6 to 64
- Material: Insulator - PBT+25% G.F, Contact - Brass with Gold or Tin over 50u" Ni
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 V RMS/60Hz for 1 minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- Plating Options: Gold flash over Ni, Tin over Ni
- Housing Color: Grey or Black
- Mounting: THT, straight, right-angled, or long latch options
Buy the Buy Phenol Latch Header Part Number T816112A1S101CEU Online
Secure your electronic projects with the phenol latch header T816112A1S101CEU, featuring a 2.54mm pitch, multiple positions up to 64, and gold or tin plating. Designed for dependable, high-quality connections, it supports 3A current, 250V voltage, and operates effectively from -40°C to +105°C. Available in straight, right-angled, and long latch variants, this connector ensures durable performance in harsh environments. Order online now for fast shipping and ensure your circuit reliability today.
Buy Phenol Latch Header T816112A1S101CEU now and experience reliable connections with high current capacity and robust construction.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816112A1S101CEU?
You can click on the BUY or RFQ button to purchase T816112A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816112A1S101CEU?
You can download the T816112A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816112A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
