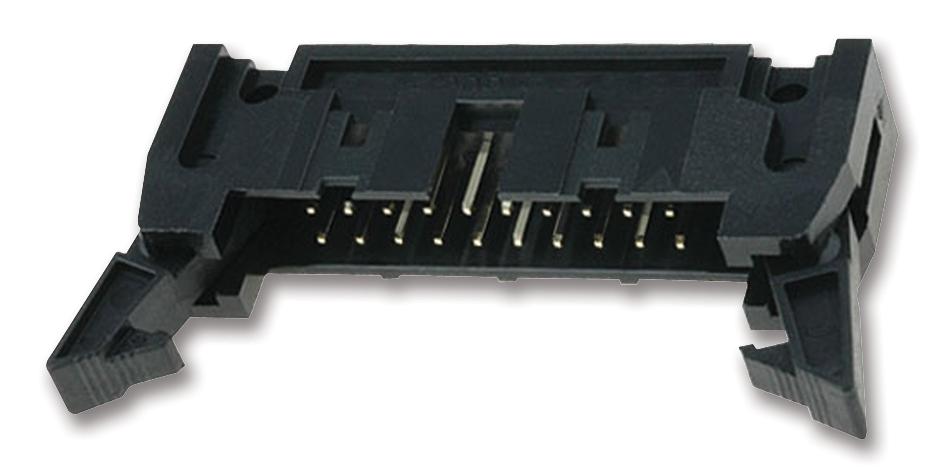

AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R102CEU phenol latch header
The T816 phenol latch header is a 2.54mm pitch connector designed for PCB applications, featuring various housing colors, number of positions, and plating options. It offers a range of latch types, including straight, right-angled, short, and long latches, with roHS compliance. Made from PBT+25%G.F insulation and brass contacts with gold or tin plating over nickel, it provides reliable electrical performance with a contact resistance of 20 mΩ max at 1A, insulation resistance of 1000 MΩ min at 500V/DC, and a current rating of 3.0A. Suitable for industrial and electronic device manufacturing.
AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R102CEU phenol latch header Specifications:
- Pitch: 2.54mm
- Housing Color: Grey, Black
- Number of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 64
- Plating Options: Gold flash over 50u" Ni, Full Tin over 50u" Ni
- Termination: THT, straight or right-angled latch
- Material: Insulator - PBT+25%G.F, Contact - Brass, Gold or Tin Plated over Ni
- Electrical: Contact Resistance - 20 mΩ max at 1A; Insulation Resistance - 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 VAC RMS 60Hz for 1 minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature: -40°C to +105°C
Buy the Berg Series Phenol Latch Header: T816126A1R102CEU
Order the Berg phenol latch header T816126A1R102CEU online today to ensure high-quality PCB connections with multiple latch options, various housing colors, and roHS compliance. Designed for reliable electrical performance, it features a 2.54mm pitch, high-quality brass contacts with gold or tin plating, and robust insulation from PBT+G.F. Whether for industrial equipment or electronic devices, this connector delivers precision, durability, and ease of installation, making it an essential component for your electronic assembly and manufacturing projects.
Buy Berg phenol latch header T816126A1R102CEU now and experience unmatched reliability and performance for your PCB assembly needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R102CEU?
You can click on the BUY or RFQ button to purchase T816126A1R102CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816126A1R102CEU?
You can download the T816126A1R102CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816126A1R102CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
