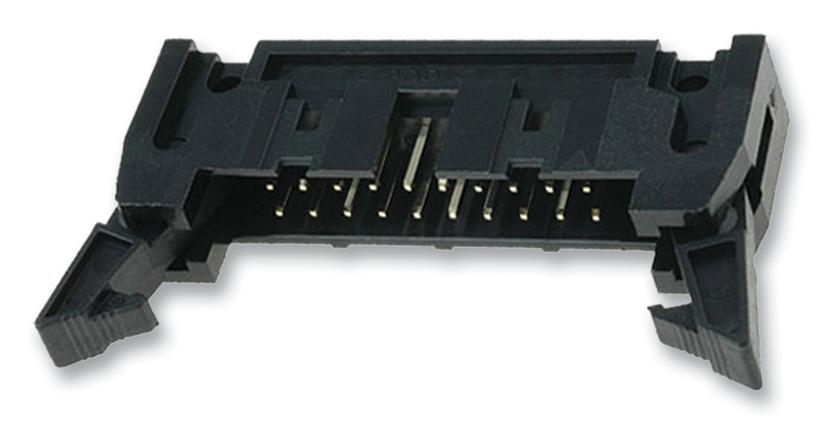

AMPHENOL COMMUNICATIONS SOLUTIONS T816134A1R101CEU Latch Header
The T816 phenol latch header is a 2.54mm pitch connector designed for reliable interconnections in industrial applications. Featuring options with gold or tin plating, various pin counts from 6 to 64 positions, and both straight or right-angled terminations, it ensures versatile installation. Made from PBT+25%G.F insulator with brass contacts, it guarantees electrical durability with 20 mΩ contact resistance, insulation resistance of 1000 MΩ, and withstands voltages up to 250V AC. Operating temperature ranges from -40°C to +105°C, making it suitable for demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS T816134A1R101CEU Latch Header Specifications:
- Pitch: 2.54mm
- Pin counts: 6, 8, 10, 14, 16, 18, 20, 24, 26, 40, 64
- Housing Color: Grey or Black
- Plating Options: Gold flash over 50u" Ni, Tin over 50u" Ni
- Termination: Straight THT or Right Angled
- Material: Insulator - PBT+25%G.F, Contact - Brass, Gold or Tin Plated
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MΩ min at 500V DC
- Dielectric Withstanding Voltage: 500 VAC RMS 60Hz for 1 min
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature: -40°C to +105°C
Buy the Berg 7816 – Reliable Latch Header for Industrial Applications
Purchase the Berg 7816 latch header online today and benefit from durable construction, versatile pin configurations, and optimal electrical performance. Designed for demanding industrial environments, it offers reliable, long-lasting connections with options for gold or tin plating, various pin counts, and both straight and right-angle terminations. Made with high-quality materials like PBT+G.F insulators and brass contacts, this connector withstands temperature extremes and voltage stresses. Secure your electronic assemblies with this dependable latch header — order now for quick delivery and exceptional quality.
Buy Berg 7816 latch header now and ensure secure, reliable electrical connections in your industrial systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816134A1R101CEU?
You can click on the BUY or RFQ button to purchase T816134A1R101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816134A1R101CEU?
You can download the T816134A1R101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816134A1R101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
