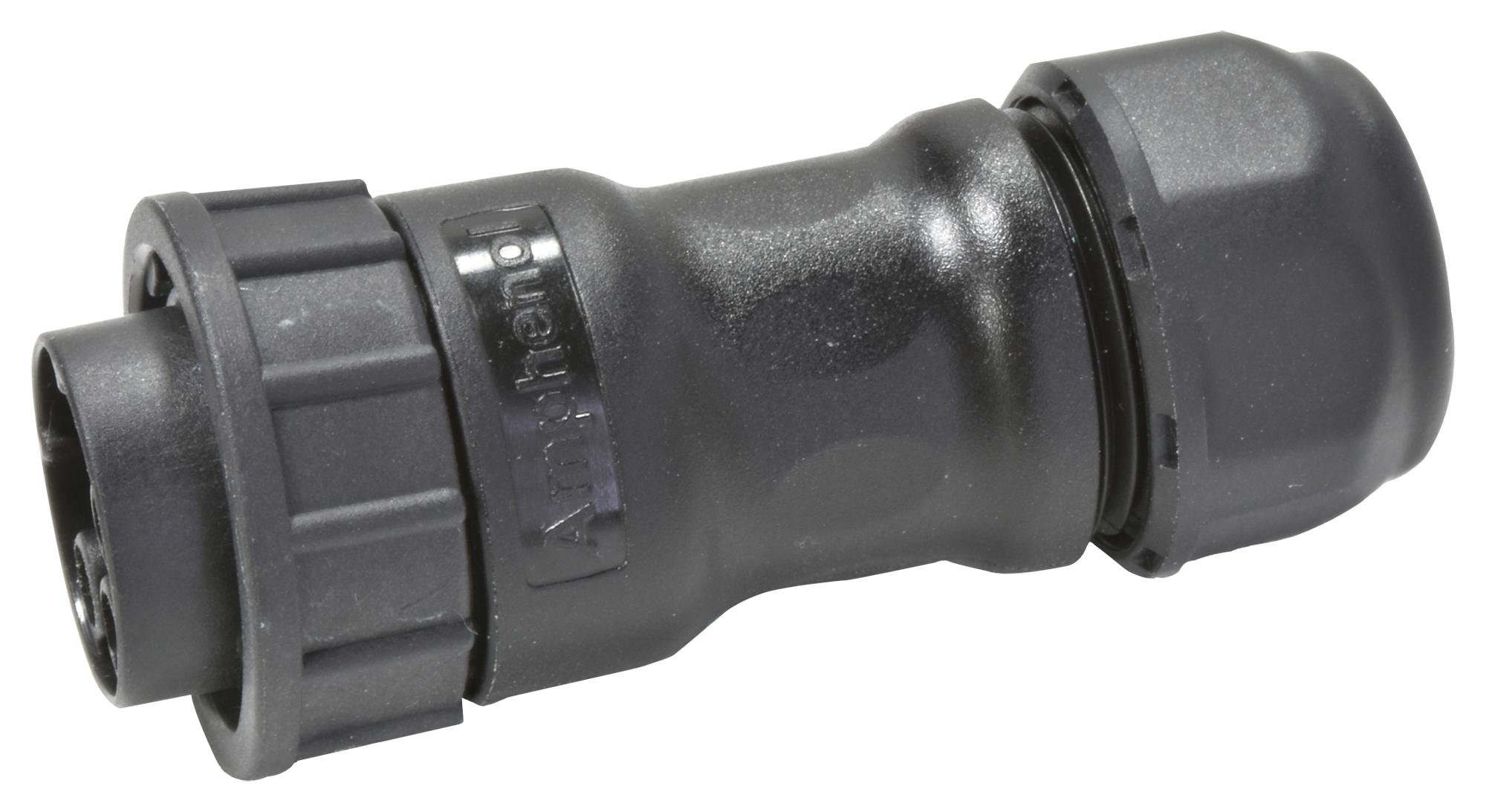

AMPHENOL LTW ADCD12BFDCLL7AP0 Circular Field Installable Connector
The AMPHENOL LTW ADCD-12BFDC-LL7AP0 is a robust circular connector designed for field installation. Constructed with a nylon+GF body and gold-plated copper alloy pins, this connector ensures reliable signal transmission and durability. Silicone seals provide environmental protection, and the connector is rated to withstand temperatures from -40°C to 105°C. It is ideal for applications requiring a secure and dependable connection in demanding environments, such as industrial machinery, automotive systems, and outdoor equipment. Its field-installable design simplifies integration and reduces downtime.
AMPHENOL LTW ADCD12BFDCLL7AP0 Circular Field Installable Connector Specifications:
- Material: Connector: Nylon+GF, Black; Pins: Copper Alloy, Gold Plated; Seal & O-Ring: Silicone, Gray
- UL Rating: UL 94V-0, f1
- RoHS Compliant: Yes
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100 MΩ Min
- Dielectric Withstand Voltage: 1,600 V ac
- Durability: 1000 Cycles
- Wire Conductor Tensile Strength: 10 kgf
- Wire Insulation OD (5A): 1.9mm Max
- Wire Insulation OD (20A): 4.3mm Max
- Torque for Clamp Ring: 6~8 kgf-cm
- Torque for Seal Nut: 6~8 kgf-cm
- Waterproof Rating: IP67 (Mated)
- Temperature Range: -40°C to 105°C
- Salt Spray: Mated, 1000 Hours
- Safety Compliance: UL 1977
