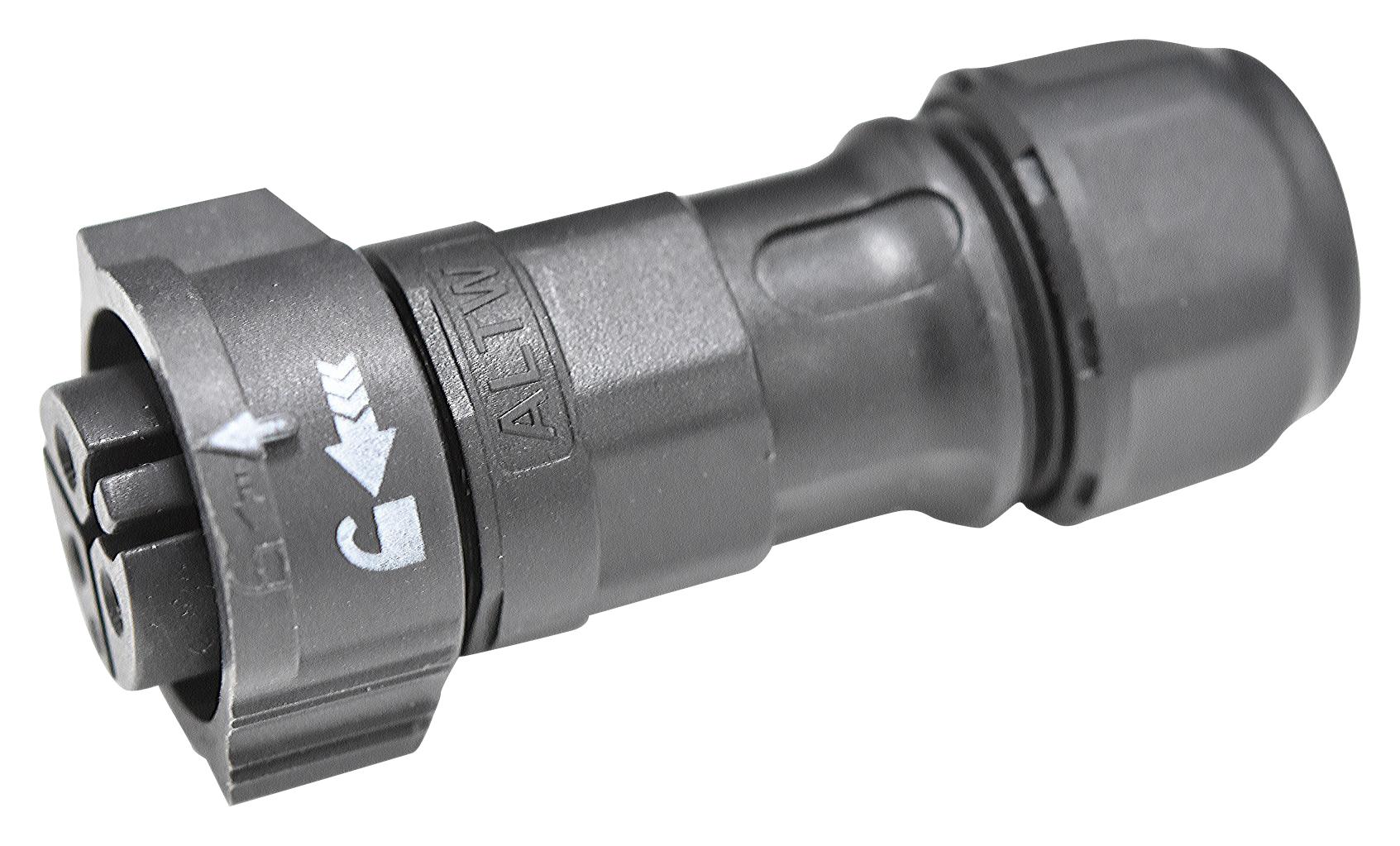

AMPHENOL LTW CC02BFFBQL8APP Waterproof Connector
This waterproof connector features a thermoplastic housing with copper alloy, gold-plated terminals for reliable electrical contact. It complies with UL 94V-0 flammability rating and RoHS standards. Capable of withstanding up to 1,600 Vac dielectric withstand voltage and 1000 cycles durability, it is suitable for harsh environments. Designed for wire sizes ranging from 14 AWG to 12 AWG with a maximum insulation diameter of 4.0mm, it offers secure connections with torque forces of 6-15 kgf-cm and a waterproof rating of IP68 when mated. Ideal for industrial automation and electronic projects.
AMPHENOL LTW CC02BFFBQL8APP Waterproof Connector Specifications:
- Connector Material: Thermoplastic
- Terminal Material: Copper Alloy, Gold Plated
- Gasket & O-Ring: Rubber
- UL Rated: UL 94V-0, flammability
- RoHS Compliant
- Contact Resistance: 0mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 14AWG to 12AWG
- Wire Insulation OD: Max 4.0mm
- Torque for Clamp Ring: 6–8 kgf-cm
- Torque for Seal Nut: 8–15 kgf-cm
- Torque for Screw: 4–5 kgf-cm
- Waterproof Rating: IP68 (mated, 1M/24 hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 500 Hours
- Safety Compliance: UL 1977
Buy the Amphenol CC02BFFBQL8APP U+2013 Reliable Waterproof Connector for Industrial Applications
Enhance your project with the durable and waterproof connector designed for industrial applications. Featuring gold-plated copper terminals, rubber gaskets, and UL compliance, this connector withstands 1600V, offers IP68 water resistance, and endures 1000 connection cycles. Suitable for wire sizes from 14 to 12 AWG with a maximum insulation diameter of 4.0mm, it ensures secure, reliable connections in harsh environments. Perfect for automation, electronics, and outdoor equipment where durability and safety are critical.
Order your Amphenol Series CC02BFFBQL8APP waterproof connector today and ensure reliable, secure connections in harsh industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CC02BFFBQL8APP?
You can click on the BUY or RFQ button to purchase CC02BFFBQL8APP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CC02BFFBQL8APP?
You can download the CC02BFFBQL8APP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CC02BFFBQL8APP?
AMPHENOL LTW
