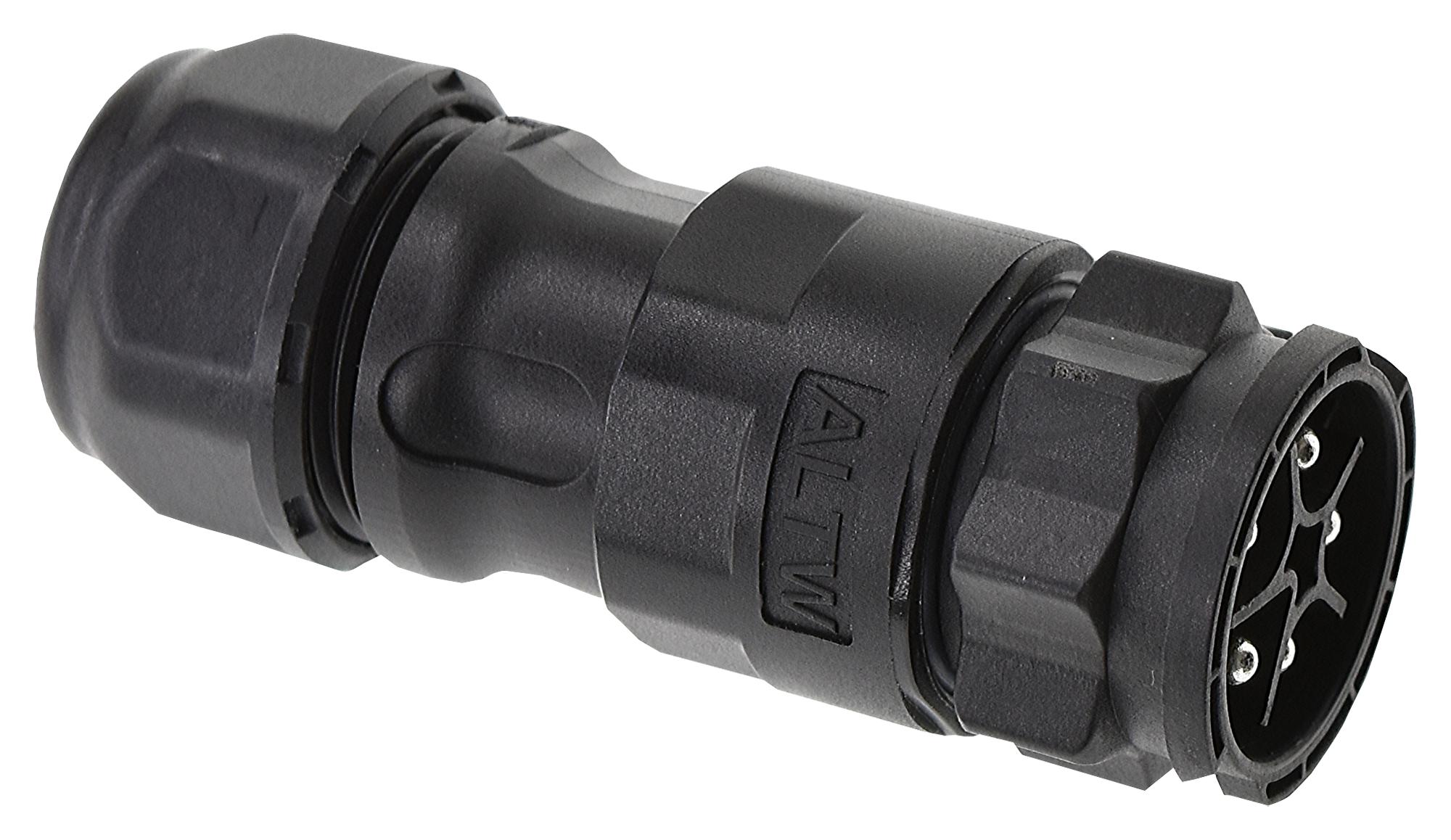

AMPHENOL LTW CC02BMMBQL8APP Waterproof connector
This waterproof sealing nut clamp ring is made of thermoplastic connector material, with copper alloy, gold-plated terminals, and rubber gasket and O-ring. It meets UL 94V-0 flammability standards and is RoHS compliant. Designed for electrical connections, it offers a contact resistance of 0mA max, insulation resistance of 100MΩ min, and dielectric withstand voltage of 1,600 Vac. The product endures 1000 mechanical cycles, with a tensile strength of 10 kgf, and supports wire sizes from 14AWG to 12AWG with a max insulation diameter of 4.0mm. Suitable for outdoor use, it withstands temperatures from -40°C to 105°C, is waterproof to IP68, and resists salt spray over 500 hours, complying with UL 1977 safety standards.
AMPHENOL LTW CC02BMMBQL8APP Waterproof connector Specifications:
- Connector Material: Thermoplastic
- Terminal Material: Copper Alloy, Gold Plated
- Gasket & O-Ring: Rubber
- Flammability: UL 94V-0
- RoHS Compliance: Yes
- Contact Resistance: 0mA Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Mechanical Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 14AWG to 12AWG (2.0mm×2 to 3.3mm×2)
- Wire Insulation OD: Max 4.0mm
- Torque Clamp Ring: 6-8 kgf-cm
- Torque Seal Nut: 8-15 kgf-cm
- Waterproof Rating: IP68 (Mated, 24 Hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 500 Hours
- Safety Compliance: UL 1977
Buy the Buy Amphenol LTW Connectors Part Number CC02BMMBQL8APP Online
Purchase the waterproof connector for electrical wiring today to ensure secure, durable, and weatherproof connections. This IP68 rated waterproof sealing nut clamp ring is designed for outdoor use with support for 14-12 AWG wires. Made from high-quality thermoplastic, copper alloy, and rubber, it withstands extreme temperatures from -40°C to +105°C, resists salt spray for 500 hours, and meets UL 1977 safety standards. Easy to install, it provides excellent electrical performance with high durability and corrosion resistance, ensuring long-term reliability in demanding environments.
Buy Amphenol LTW CC02BMMBQL8APP now and experience unmatched reliability and corrosion resistance for outdoor electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CC02BMMBQL8APP?
You can click on the BUY or RFQ button to purchase CC02BMMBQL8APP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CC02BMMBQL8APP?
You can download the CC02BMMBQL8APP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CC02BMMBQL8APP?
AMPHENOL LTW
