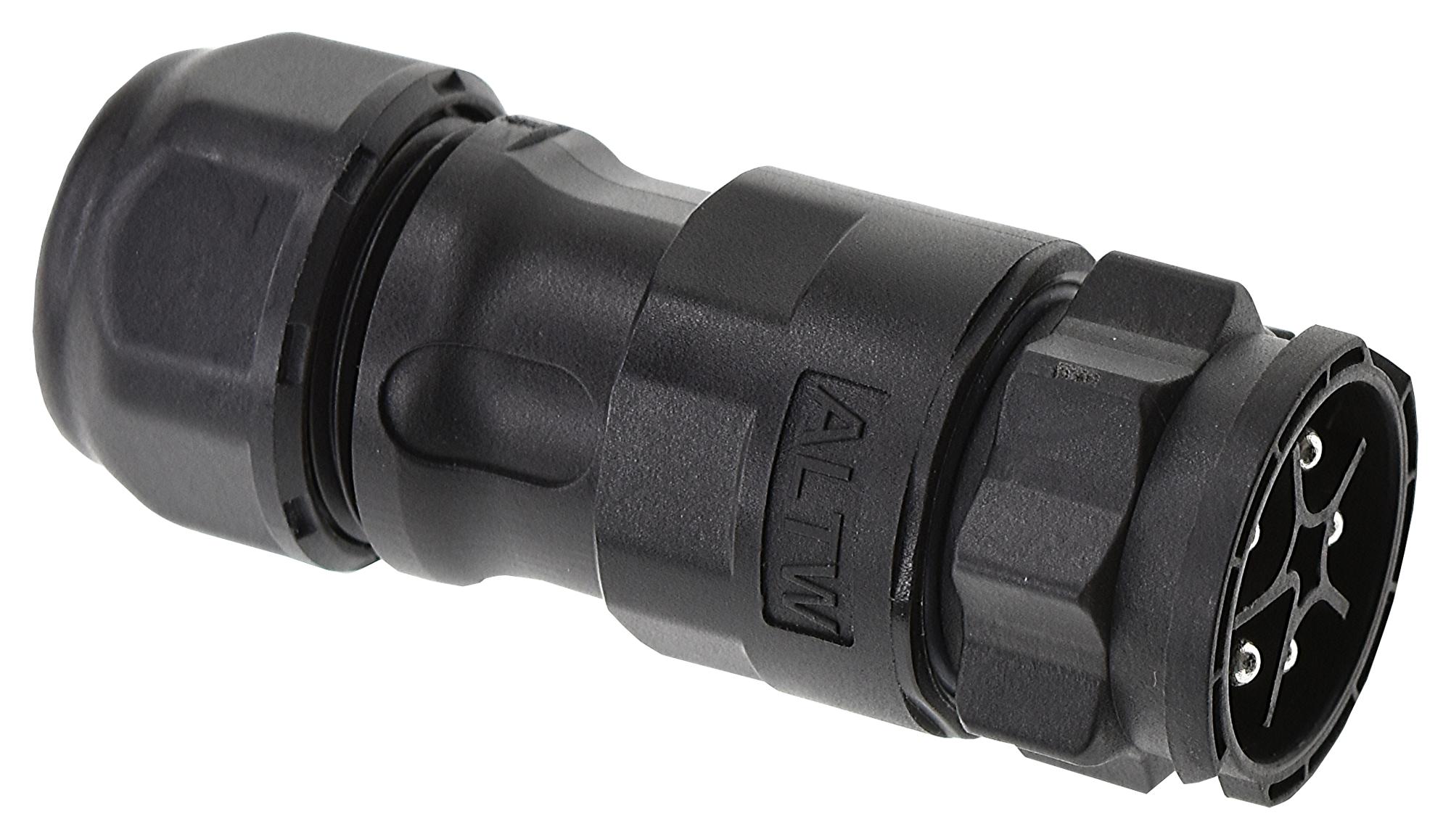

AMPHENOL LTW CC03BMMBQL8APP field installable connector
Amphenol LTW introduces the X-Lok field installable connector with screw-in terminals, rated IP68 for harsh environments. Its robust push-lock mechanism offers quick, secure connections with audible feedback and guided key. Suitable for automotive, automation, industrial, LED lighting, marine, renewable energy, and security applications, it ensures reliable, easy installation, and maintenance, making it ideal for repair, industrial automation, and secure electrical connections in demanding environments. The connector's rugged design and environmental resistance enhance performance in challenging conditions.
AMPHENOL LTW CC03BMMBQL8APP field installable connector Specifications:
- Connector Material: Thermoplastic
- Terminal Material: Copper Alloy, Gold Plated
- Gasket & O-Ring Material: Rubber
- UL Rated: UL 94V-0
- RoHS Compliant
- Contact Resistance: 0mΩ Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Mechanical Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 14AWG~12AWG (2.0mm*2~3.3mm*2)
- Wire Insulation OD: Max 4.0mm
- Clamp Ring Torque: 6~8 kgf-cm
- Seal Nut Torque: 8~15 kgf-cm
- Waterproof Rating: IP68 (Mated, 24 Hours)
- Operating Temperature Range: -40°C to 105°C
- Salt Spray Resistance (Mated): 500 Hours
- Safety Compliance: UL 1977
Buy the Amphenol Series X-Lok connector: CC03BMMBQL8APP
Secure your equipment with the durable, IP68-rated field installable connector from Amphenol LTW. Designed with screw-in terminals and a push-lock mechanism, this connector offers fast, secure connections suitable for harsh environments like industrial automation, marine, and renewable energy. Its rugged thermoplastic body, gold-plated copper terminals, and rubber O-rings ensure long-lasting performance. Easy to install and maintain, this connector withstands extreme temperatures, moisture, and mechanical stress. Purchase online now for reliable, high-quality electrical connections that meet industry standards.
Order your Amphenol Series X-Lok connector CC03BMMBQL8APP today and ensure secure, reliable connections in demanding industrial environments.
