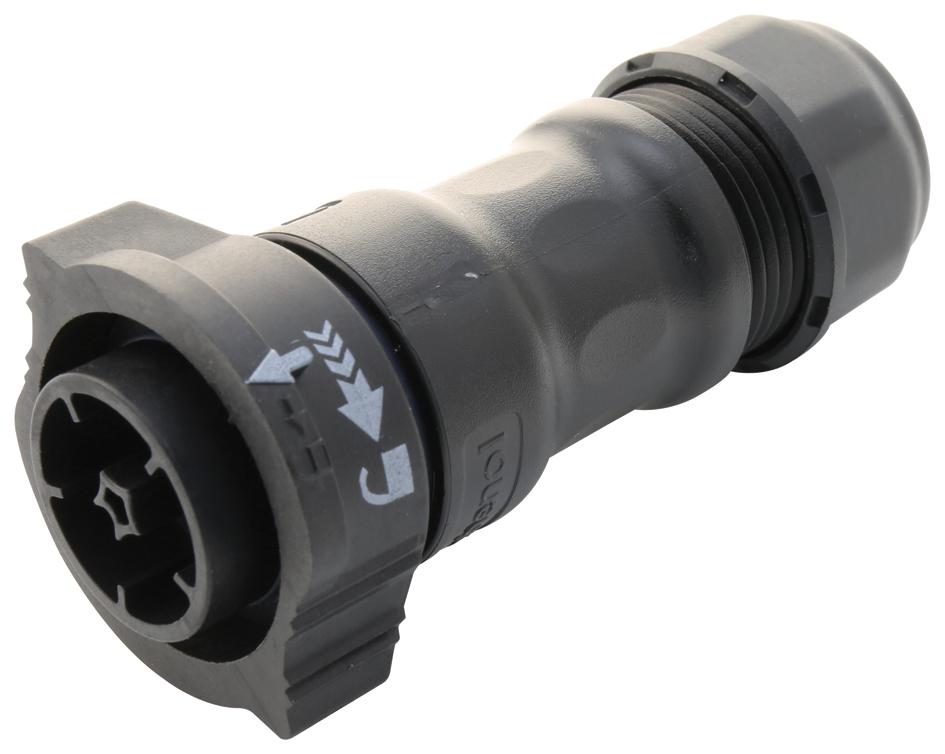

AMPHENOL LTW DC05BFMAQL8MPP Sealing Connector
The Seal Nut is a durable waterproof connector component designed for high reliability in harsh environments. Made from nylon reinforced with glass fiber, it features copper alloy pins with gold plating for optimal electrical conductivity, and silicone O-Rings for sealing. UL rated UL 94V-0, compliant with RoHS, it supports up to 1000 insertion cycles, with a tensile strength of 10 kgf. Suitable for applications requiring IP68 waterproof rating, with temperature tolerance from -40°C to 105°C, featuring specific torque force and insulation resistance values for secure connections.
AMPHENOL LTW DC05BFMAQL8MPP Sealing Connector Specifications:
- Material: Connector: Nylon+GF, Black; Pins: Copper Alloy, Gold Plated; Seal & O-Ring: Silicone, Gray
- Electrical: Contact Resistance: 10m Max; Insulation Resistance: 100MΩ Min; Dielectric Voltage: 1,600 Vac; Water Resistance: IP68
- Mechanical: Durability: 1000 Cycles; Tensile Strength: 10 kgf; Wire Size: 22AWG-20AWG; Insulation OD: 1.9mm Max
- Environmental: Operating Temp: -40°C to 105°C; Salt Spray: 1000 Hours; Waterproof Rating: IP68 (mated, 24 hours); Safety: UL 1977
- Torque Force: Clamp Ring: 6~8 kgf-cm; Seal Nut: 6~8 kgf-cm.
Buy the Amphenol Series Seal Nut: DC05BFMAQL8MPP
Enhance your projects with the high-quality sealing connector designed for harsh environments. Featuring IP68 waterproof rating, durable nylon body, gold-plated copper pins, and silicone sealing. Supports high cycle durability with 1000 insertion cycles, temperature tolerance from -40°C to 105°C, ideal for industrial, outdoor, and automation applications. Easy to install with specified torque forces, providing secure and reliable electrical connections. Purchase online now to ensure your equipment maintains high performance in challenging conditions, backed by robust UL and RoHS compliance.
Get Amphenol Seal Nut DC05BFMAQL8MPP today—built for precision and long-lasting durability in waterproof electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTW DC05BFMAQL8MPP?
You can click on the BUY or RFQ button to purchase DC05BFMAQL8MPP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part DC05BFMAQL8MPP?
You can download the DC05BFMAQL8MPP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of DC05BFMAQL8MPP?
AMPHENOL LTW
