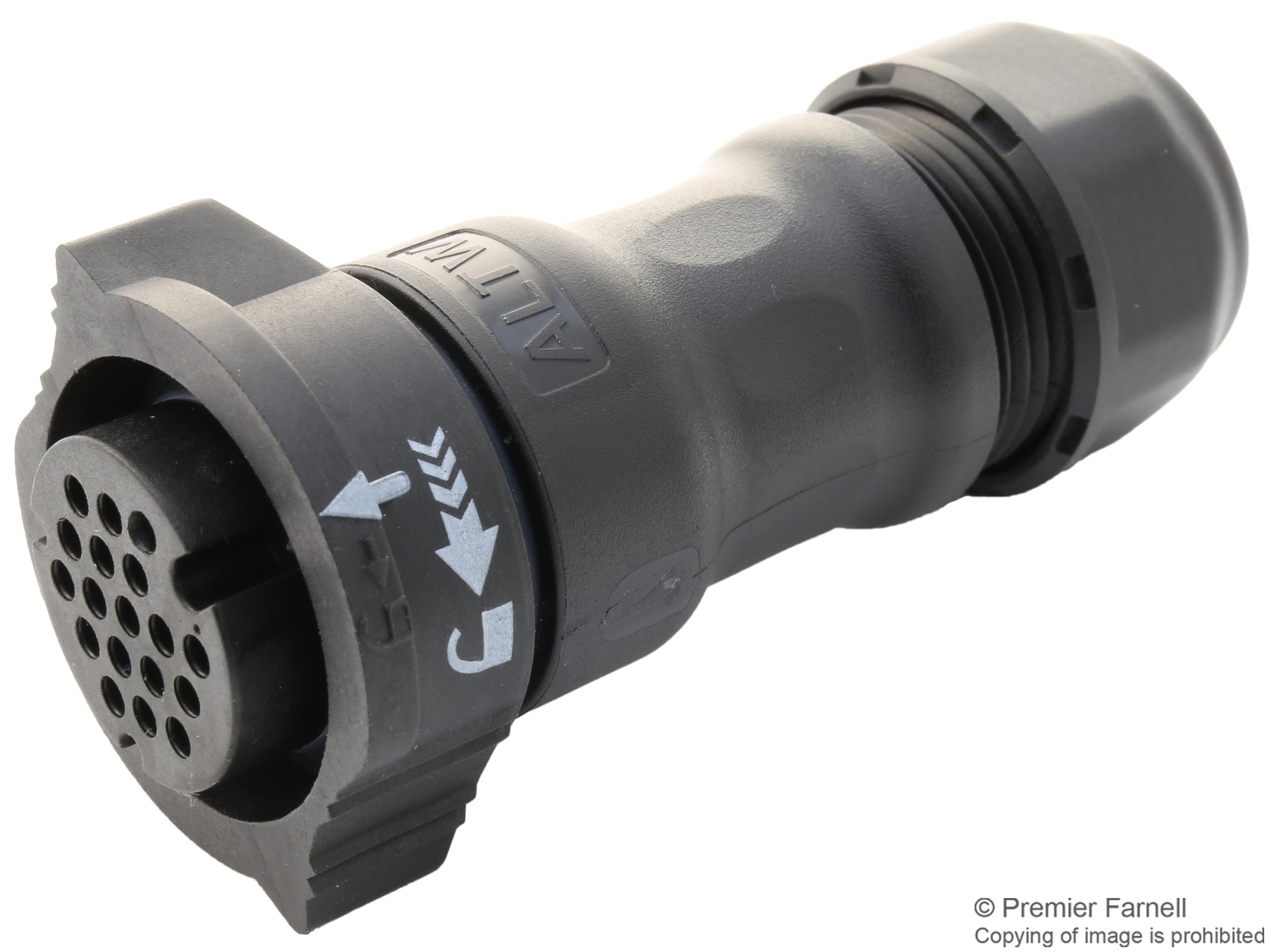

AMPHENOL LTW DD18BFFAQL8MP0 Waterproof Connector
The DD18BFFAQL8MP0 is a waterproof, environmentally sealed connector suitable for demanding industrial applications. It features a durable nylon+GF housing, gold-plated copper alloy pins, and silicone O-rings for excellent sealing with an IP68 waterproof rating. The connector operates within a temperature range of -40°C to 105°C, offers a contact resistance of 10m Max, an insulation resistance of at least 100MΩ, and withstands voltages up to 1,600 Vac. Mechanical durability is rated for 1000 cycles with a tensile strength of 10 kgf, making it ideal for harsh environments requiring reliability and safety compliance to UL 1977.
AMPHENOL LTW DD18BFFAQL8MP0 Waterproof Connector Specifications:
- Connector Material: Nylon+GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Seal & O-Ring Material: Silicone, Gray
- UL Rating: UL 94V-0, flammability
- Waterproof Rating: IP68 (mated, 24 hours at IM/IP Environment)
- Temperature Range: -40°C to 105°C
- Contact Resistance: 10m Max
- Insulation Resistance: ≥100MΩ
- Dielectric Withstand Voltage: 1,600 Vac
- Mechanical Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: SA 22AWG–20AWG, 20A 14AWG–12AWG
- Wire Insulation OD: SA 1.9mm Max, 20A 4.3mm Max
- Torque Force for Clamp Ring & Seal Nut: 6–8 kgf-cm
- Environmental Resistance: Salt spray test 1000 hours
Buy the Amphenol Series Waterproof Connector: DD18BFFAQL8MP0
Purchase the waterproof connector DD18BFFAQL8MP0 online today to guarantee robust sealing and dependable electrical performance in challenging environments. Its high-quality nylon+GF housing, gold-plated copper pins, and silicone O-rings provide excellent sealing against water and dust, rated IP68. Designed for temperatures from -40°C to 105°C with a maximum dielectric voltage of 1,600 Vac, this connector endures 1000 mechanical cycles and supports wire sizes from 22AWG to 20AWG. Ideal for industrial, outdoor, and safety-critical applications, ensure your systems stay protected and functional with this durable, high-quality connector.
Order your Amphenol Series waterproof connector DD18BFFAQL8MP0 today and ensure your projects benefit from reliable, sealed electrical connections suitable for harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW DD18BFFAQL8MP0?
You can click on the BUY or RFQ button to purchase DD18BFFAQL8MP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part DD18BFFAQL8MP0?
You can download the DD18BFFAQL8MP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of DD18BFFAQL8MP0?
AMPHENOL LTW
