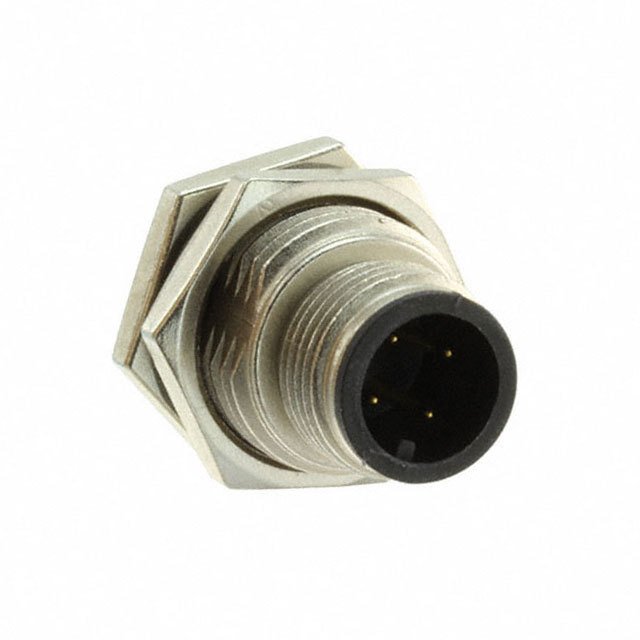

AMPHENOL LTW M12A04PMMSSF8001 M12 Male Connector
The AMPHENOL LTW M12A-04PMMS-SF8001 is a circular connector designed for reliable data and power transmission in industrial automation, sensors, and control systems. Constructed with a copper alloy male pin and a zinc alloy screw nut, both gold and nickel plated respectively, this connector offers excellent corrosion resistance and electrical performance. It is rated IP68/69K for water and dust protection, making it suitable for harsh environments. Available with 3 to 12 pins, it supports various signal and power configurations. The connector is designed for panel thickness up to 4.5mm and requires a nut torque of 4-6 Kgf.cm for secure installation.
AMPHENOL LTW M12A04PMMSSF8001 M12 Male Connector Specifications:
- Pin Length: 2.5mm
- Connector Type: Male
- Code: A-Code
- Pin Assignment: Front View
- Waterproof Rating: IP68/69K
- Fastening: Front Fastening (Enclosure Rear Mount)
- Screw Type: Screw
- Connection Type: Solder Type
- Panel Cutout: PG9 or M16*1.5
- Rated Voltage: 250V dc or ac (3/4 Pin), 60V dc or ac (5 Pin), 30V dc or ac (6-12 Pin)
- Rated Current: 4A (3/5 Pin), 2A (6/8 Pin), 1.5A (10/12 Pin)
- Operating Temperature: -40 to 105°C
- Panel Thickness: Max 4.5mm
- Nut Torque: 4-6 Kgf.cm
