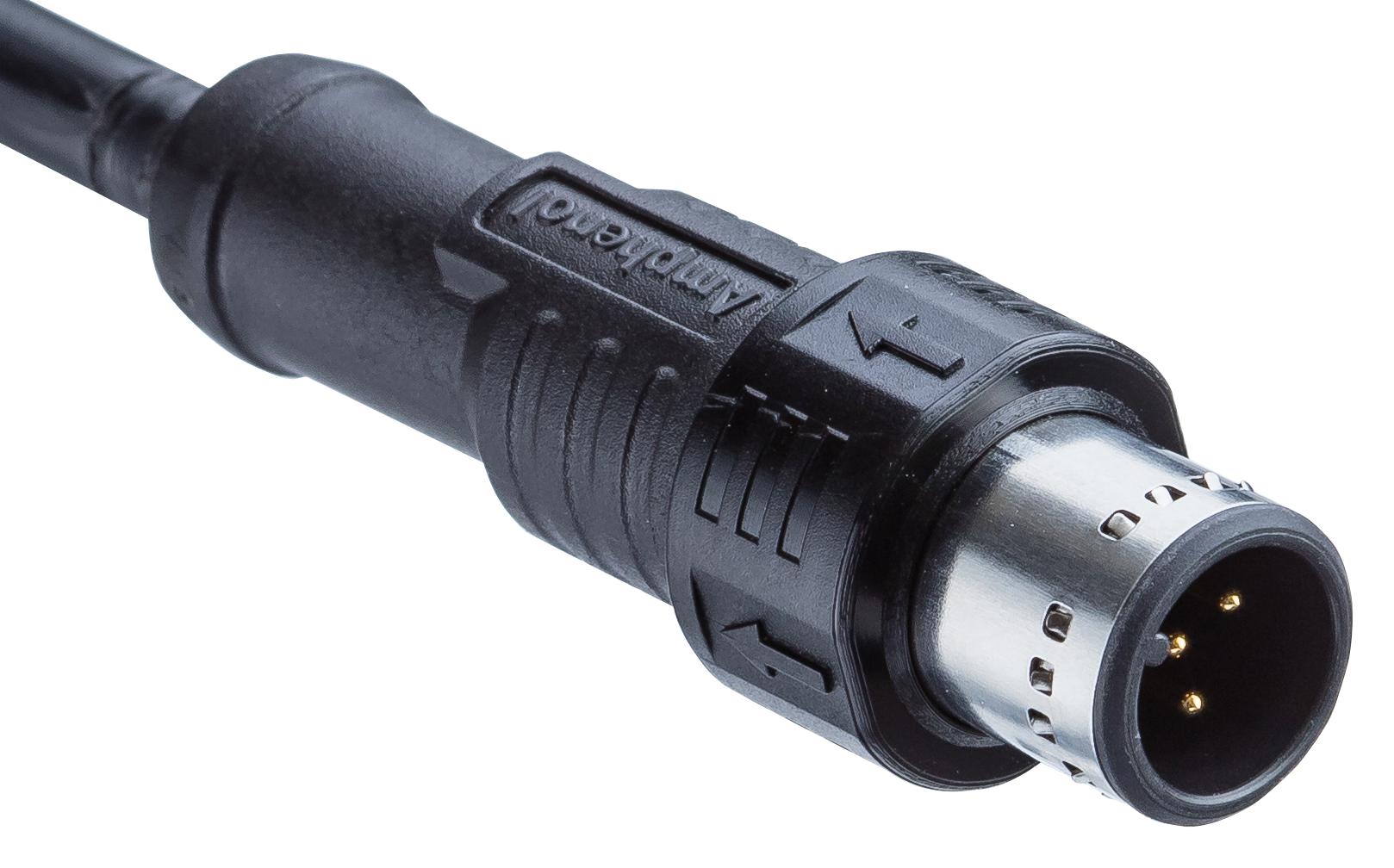

AMPHENOL LTW M12A05BMMMPL8D10 M12 Push Pull Cable Connector
The AMPHENOL LTW M12A-05BMMM-PL8D10 is a M12 circular connector designed for reliable data and power transmission in demanding industrial environments. Its robust construction, featuring a thermoplastic housing, copper alloy gold-plated pins, and a metal shell, ensures durability and long-term performance. The push-pull locking mechanism provides a secure connection, while the IP68 water resistance rating makes it suitable for harsh conditions. Commonly used in industrial automation, networking, and power transmission applications, this connector offers a dependable solution for connecting devices and equipment.
AMPHENOL LTW M12A05BMMMPL8D10 M12 Push Pull Cable Connector Specifications:
- Material (Housing): Thermoplastic, UL 94V-0
- Material (Pin): Copper Alloy, Gold Plated
- Material (Shell & Latch): Metal
- Material (Outer Mold): Thermoplastic
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 2~4 Pin: 1.5KV, 5 Pin: 1.0KV, 6~8 Pin: 0.65KV, 9~17 Pin: 0.65KV
- Rated Voltage: 2~4 Pin: 250V D.C. or A.C., 5 Pin: 60V D.C. or A.C., 6~17 Pin: 30V D.C. or A.C.
- Rated Current: 2~5 Pin: 4.0A, 6~8 Pin: 2.0A, 9~17 Pin: 1.5A
- Durability: 500 Cycles
- Waterproof Rating: IP68
- Temperature Range (PVC Cable): -20~+80°C
- Temperature Range (PUR Cable): -20~+85°C
- Cable Jacket (PVC): Yellow
- Cable Jacket (PUR): Black
Buy the M12A-05BMMM-PL8D10 AMPHENOL LTW M12 Push Pull Cable Connector | myMectronic
Securely purchase the AMPHENOL LTW M12A-05BMMM-PL8D10 online for reliable connectivity.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW M12A05BMMMPL8D10?
You can click on the BUY or RFQ button to purchase M12A05BMMMPL8D10 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part M12A05BMMMPL8D10?
You can download the M12A05BMMMPL8D10 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of M12A05BMMMPL8D10?
AMPHENOL LTW
