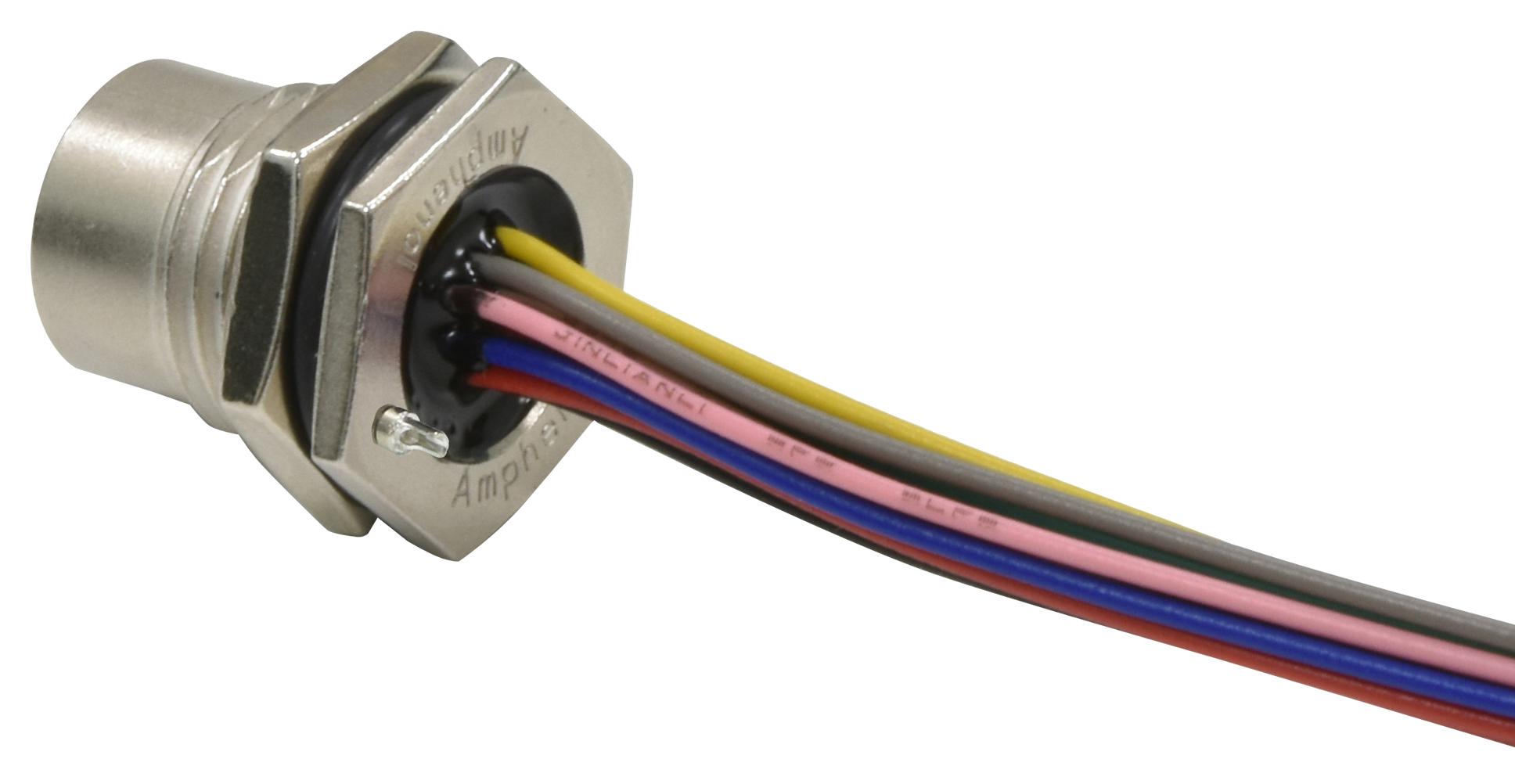

AMPHENOL LTW MSAS03PFFCSF8B30 Waterproof Connector
This waterproof connector features a nylon+GF housing with a zinc alloy shield and gold-plated copper alloy female pins, rated for 250V AC/DC and currents up to 4A. It supports IP69K and IP68 waterproof standards, ideal for harsh environments. The connector accommodates panel thickness up to 4.5mm, with a torque specification of 4-6 Kgf.cm. It includes a wire harness of 150–1500mm length with tolerance, and features Viton O-rings for sealing, ensuring reliable electrical connections under temperature ranges from -25°C to 85°C. Suitable for industrial, automation, or electronic applications requiring robust waterproof and sealed connections.
AMPHENOL LTW MSAS03PFFCSF8B30 Waterproof Connector Specifications:
- Housing Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Pin Material: Copper Alloy, Gold Plated
- Rated Voltage: 250V AC/DC
- Rated Current: 4A
- Protection Class: IP68, IP69K
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Nut Torque: 4-6 Kgf.cm
- Wire Harness Length: 150mm to 1500mm, Tolerance 150-300mm, Recommended 300-1000mm, Over 1000mm +40mm
- Panel Cutout: over 1000mm +40mm
- Sealing Material: Viton O-Rings, Green and Black
- Waterproof Rate: IP68, IP69K
- Connector Type: Female with wire harness, shielded
- Screw Nut Material: Zinc Alloy, Nickel Plated
- Operating Temp Range: -25°C to 85°C
Buy the Industrial Series Waterproof Connector: MSAS03PFFCSF8B30
Purchase your waterproof connector online now to benefit from superior sealing, robust build quality, and IP69K protection. Designed for industrial and electronic applications, this connector features a nylon+GF housing, zinc alloy shield, and gold-plated copper pins for reliable connections. The Viton seals provide excellent resistance to environmental factors, while the flexible wire harness adapts to different installation needs. Ensure your equipment remains protected from water, dust, and harsh conditions by ordering this high-quality connector today.
Order your Allen Pan Series Waterproof Connector MSAS03PFFCSF8B30 today and ensure your projects are sealed and reliable under harsh conditions.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS03PFFCSF8B30?
You can click on the BUY or RFQ button to purchase MSAS03PFFCSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS03PFFCSF8B30?
You can download the MSAS03PFFCSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS03PFFCSF8B30?
AMPHENOL LTW
