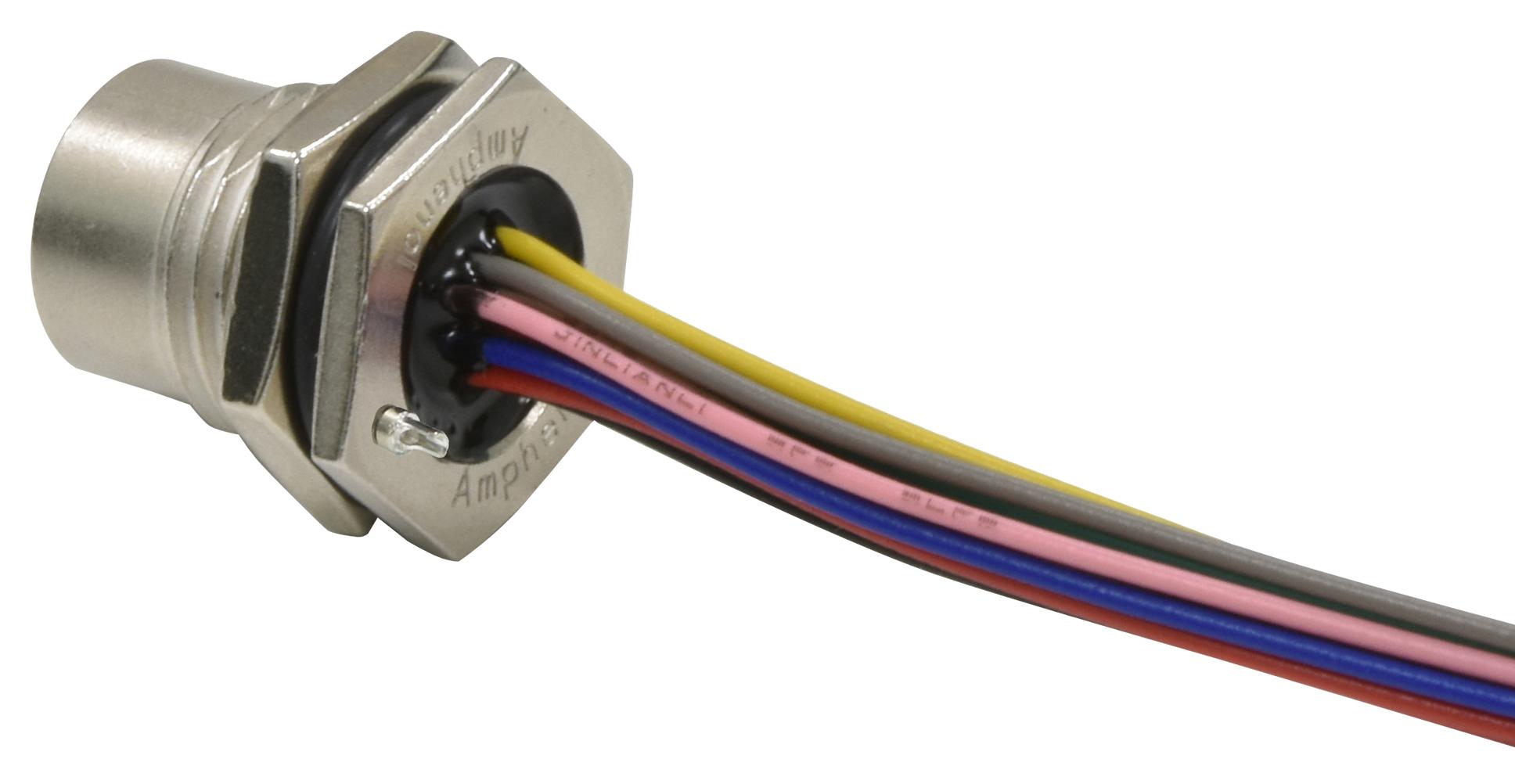

AMPHENOL LTW MSAS12PFFSSF8C30 Industrial Waterproof Connector
The MSAS12PFFSSF8C30 is a waterproof, shielded connector designed for reliable wiring in industrial applications. Made with nylon + GF housing, gold-plated copper female pins, and zinc alloy shield with nickel plating, it offers protection rated at IP68 and IP69K. Suitable for panel thickness up to 4.5mm, it features a rated voltage of 250V, current up to 4A, and operating temperature from -25°C to 85°C. The connector supports wire harness lengths of 150-1500mm, making it ideal for diverse industrial wiring needs.
AMPHENOL LTW MSAS12PFFSSF8C30 Industrial Waterproof Connector Specifications:
- Connector Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Housing Material: Nylon+GF
- Ground Pin: Copper Alloy, Gold Plated
- Waterproof Rate: IP68, IP69K
- Rated Voltage: 250V (de. or ac.)
- Rated Current: 4A
- Operating Temperature: -25°C to +85°C
- Panel Thickness Max: 4.5mm
- Wire Harness Tolerance: 150~300mm, 415mm
- Nut Torque: 4-6 Kgf.cm
- Screw Nut Material: Zinc Alloy, Nickel Plated
- Panel O-Ring: Viton, Black
- Housing O-Ring: Viton, Green
- Connector Type: Female, Shielded
- Compatible with: 3 to 12 Pin configurations
- Dimensions vary with model, standard length supports up to 1500mm wire harness
Buy the Cinch Series Industrial Waterproof Connector: MSAS12PFFSSF8C30
Order the Allen Pan waterproof connector MSAS12PFFSSF8C30 online today and ensure reliable, high-performance wiring for your industrial applications. With IP69K waterproof rating and durable nylon + GF housing, this connector provides superior protection against dust and water ingress. Featuring gold-plated copper pins, zinc alloy shield, and operating temperature from -25°C to 85°C, it supports wire harness lengths of 150-1500mm. Perfect for applications requiring secure, corrosion-resistant connections in demanding environments. Purchase now for fast delivery and top-quality performance.
Buy Allen Pan waterproof connector MSAS12PFFSSF8C30 now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS12PFFSSF8C30?
You can click on the BUY or RFQ button to purchase MSAS12PFFSSF8C30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS12PFFSSF8C30?
You can download the MSAS12PFFSSF8C30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS12PFFSSF8C30?
AMPHENOL LTW
