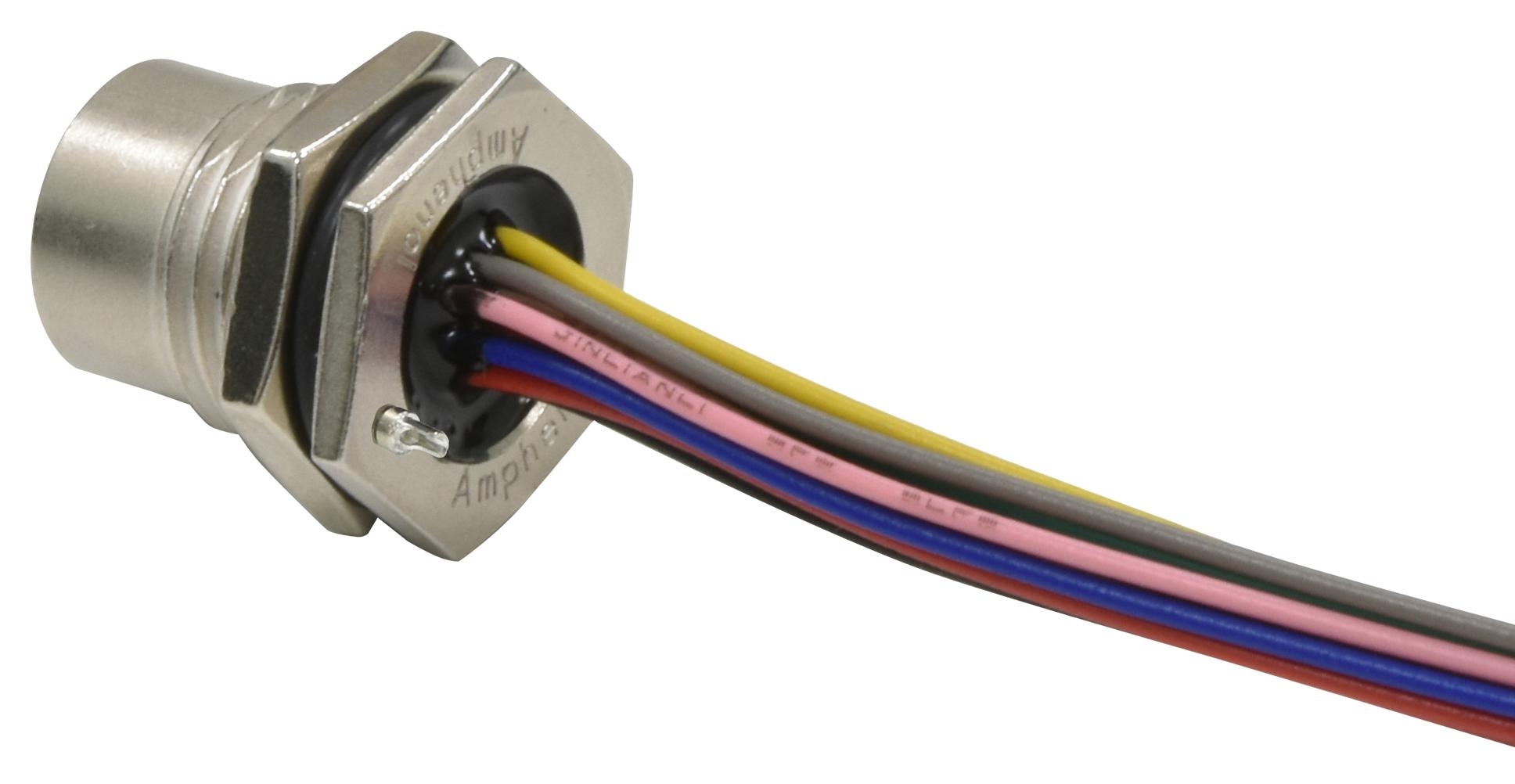

AMPHENOL LTW MSDS04PFFCSF8C50 Industrial Waterproof Connector
This waterproof shielded connector features a durable nylon+GF housing, gold-plated copper alloy pins, and zinc alloy nickel-plated shielding, rated for 250V and 4A. It operates within -25°C to 85°C, suitable for panel thickness up to 4.5mm. The connector includes a Viton O-ring for sealing, a UL-rated wire harness, and accommodates wire lengths from 150mm to 1500mm. Its compact design ensures reliable data and power transmission with IP68 waterproof protection, making it ideal for industrial automation and harsh environments.
AMPHENOL LTW MSDS04PFFCSF8C50 Industrial Waterproof Connector Specifications:
- Housing Material: Nylon+GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Shielding Material: Zinc Alloy, Nickel Plated
- Rated Voltage: 250V (AC/DC)
- Rated Current: 4A
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Wire Harness Length: 150mm to 1500mm, tolerance ±20mm
- Wire Gauge: 22-18 AWG
- Connector Type: Female Pin, Crimp and Solder types
- Sealing: Viton Green O-Ring
- Ingress Protection: IP68
- Recommended Nut Torque: 4-6 Kgf.cm
- Housing Rating: UL Listed, RoHS Compliant
Buy the Allen Pan Series Waterproof Connector: MSDS04PFFCSF8C50
Purchase the Allen Pan waterproof connector MSDS04PFFCSF8C50 online for excellent sealing, durability, and high-performance connections. This industrial-grade connector features a robust nylon+GF housing, gold-plated copper pins, and zinc alloy shieldings rated IP68 for dust and water resistance. It supports wire lengths from 150mm to 1500mm, with a maximum panel thickness of 4.5mm. Ideal for automation, machinery, and harsh environments, this connector ensures secure, reliable data and power transmission with UL listing and RoHS compliance. Get yours today for hassle-free installation and long-lasting service.
Buy Allen Pan waterproof connector MSDS04PFFCSF8C50 now and experience unmatched reliability and performance in tough industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSDS04PFFCSF8C50?
You can click on the BUY or RFQ button to purchase MSDS04PFFCSF8C50 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSDS04PFFCSF8C50?
You can download the MSDS04PFFCSF8C50 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSDS04PFFCSF8C50?
AMPHENOL LTW
