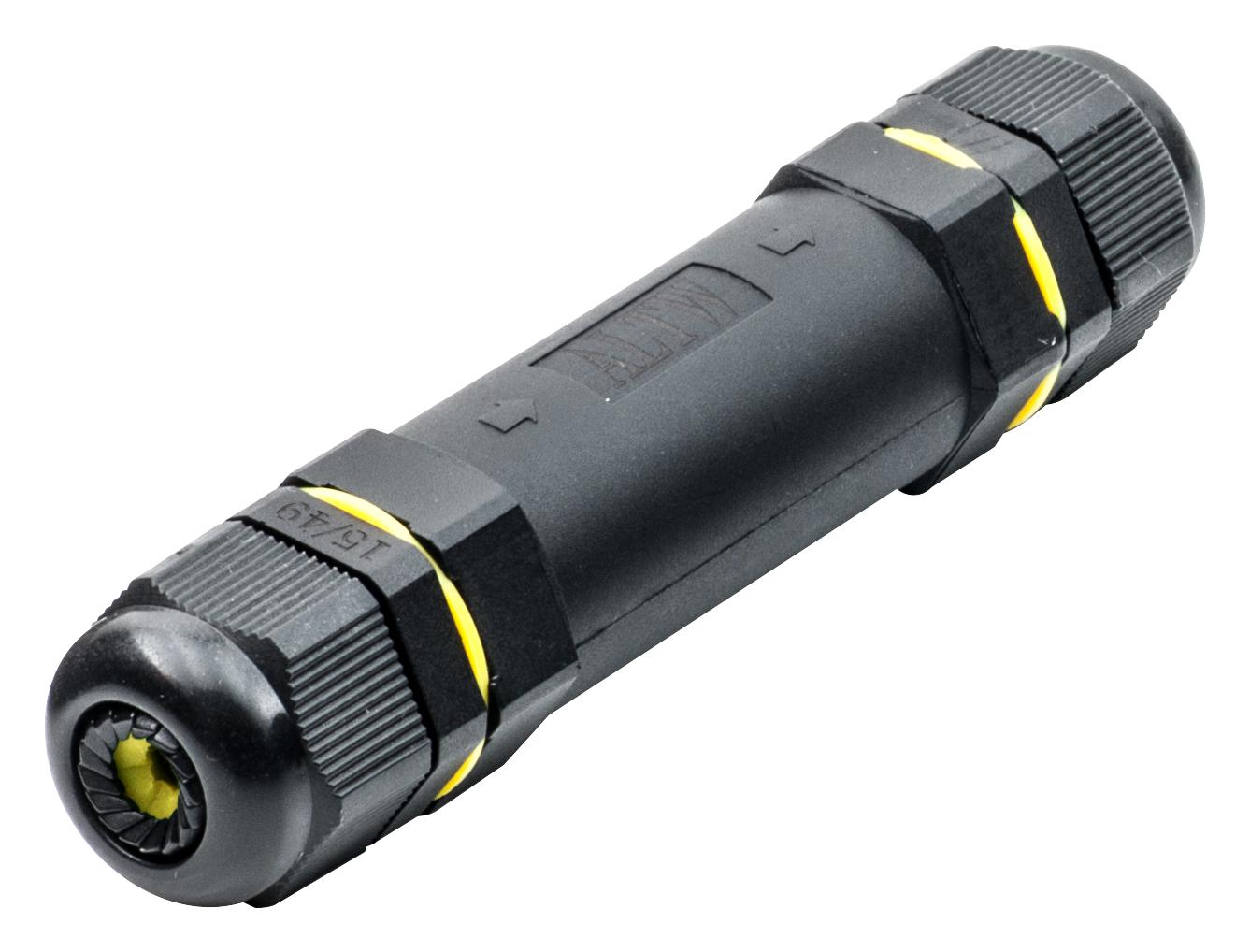

AMPHENOL LTW SCLPG1304YW Waterproof Terminal Block
The Amphenol LTW SC-L-PG13-04-YW is an end barrier screw-type terminal block designed for reliable, waterproof connections in industrial and outdoor applications. It features an IP68 rating, ensuring protection up to 50 meters of water for 24 hours. Its quick installation and easy-grip design simplify setup. The device accommodates cable diameters from 6.6mm to 8.5mm and operates efficiently in temperatures from -40°C to 105°C. Made with durable nickel-plated brass contacts, stainless steel screws, and sealed with silicone, it ensures long-lasting performance in challenging environments.
AMPHENOL LTW SCLPG1304YW Waterproof Terminal Block Specifications:
- Waterproof rating: IP68 (50m, 24hrs)
- Material: Gland Nut and Gland Body in PA66+GF, Black; Gasket in Silicone
- Contact Material: Brass, Nickel-Plated
- Screw Material: Stainless Steel, Nickel-Plated
- Operating Temperature: -40°C to 105°C
- Wire Section: 14~18 AWG (0.75~2.5 mm²)
- Cable Outer Diameter Range: 6.6~8.5mm
- Number of Positions: 2P, 3P, 4P
- Current Rating: 15A for 3P & 4P, 20A for 2P
- Voltage Rating: 450VAC for all configurations
- Housing Color: Black
- Installation: Quick, easy installation with easy-grip design
- UV Resistance: Tested for 720hrs
Buy the Buy Amphenol IP68 Waterproof Terminal Block Part Number SCLPG1304YW Online
Purchase the Amphenol waterproof terminal block online today. Designed with IP68 sealing, quick installation, and compatibility with cables 6.6 to 8.5mm in diameter, it ensures robust performance even in challenging outdoor conditions. Featuring durable nickel-plated brass contacts, stainless steel screws, and silicone sealing, this device guarantees protection against water ingress and UV exposure. Ideal for industrial, outdoor, or harsh environment applications, it offers reliable electrical connections rated for 15A and 450VAC, with a temperature range of -40°C to 105°C, ensuring long-lasting durability and safety.
Get Amphenol waterproof screw terminal block SCLPG1304YW today—rigorously tested for salt spray, UV, and harsh outdoor environments, built for durable and reliable connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTW SCLPG1304YW?
You can click on the BUY or RFQ button to purchase SCLPG1304YW from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part SCLPG1304YW?
You can download the SCLPG1304YW datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of SCLPG1304YW?
AMPHENOL LTW
