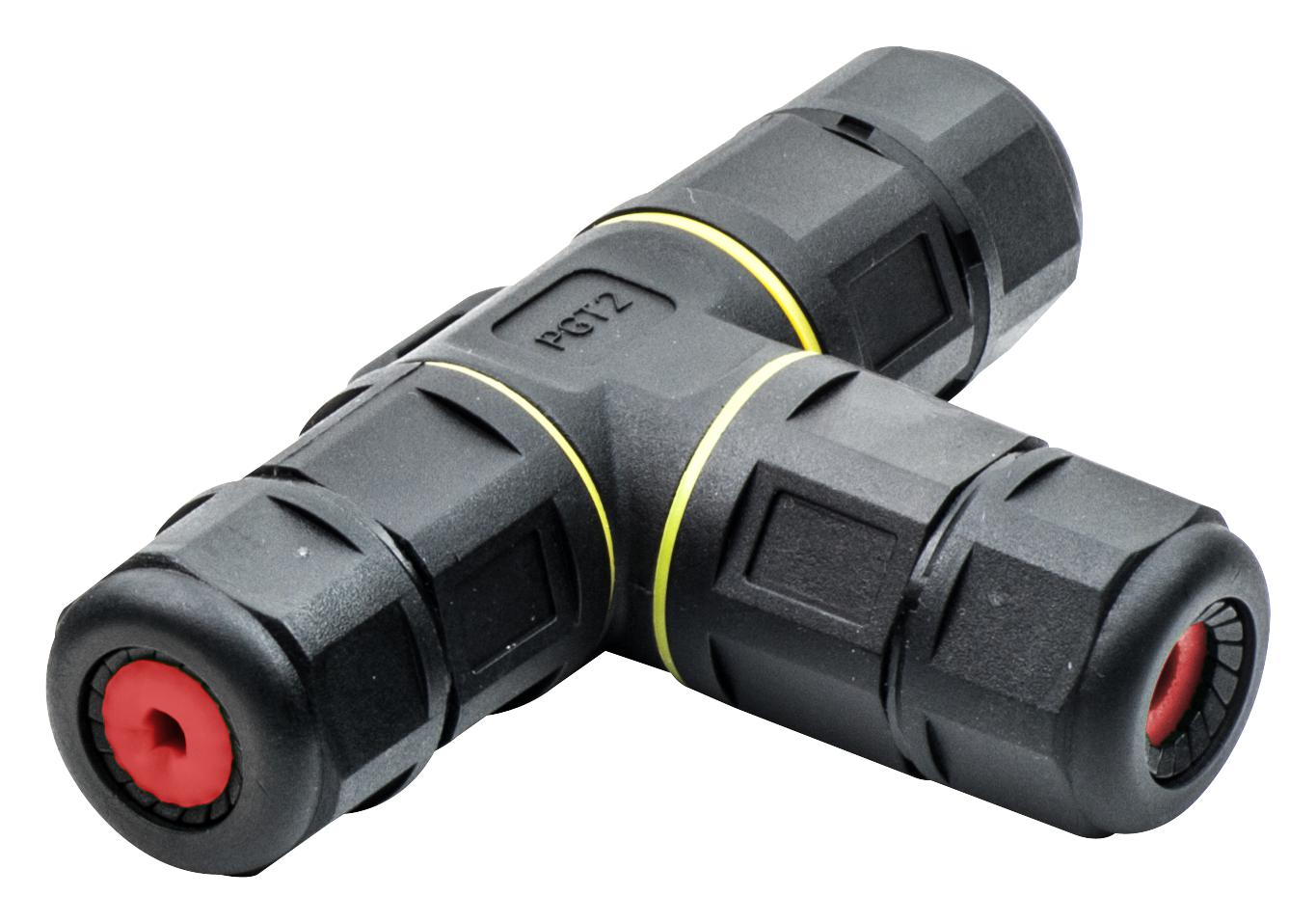

AMPHENOL LTW SCLPGT204RD Waterproof T Tube Connector
The Amphenol LTW SC-L-PGT2-04-RD is a waterproof screw-type T tube cable connector rated IP68, capable of withstanding up to 50 meters for 24 hours. Crafted from durable PA66+GF housing with nickel-plated brass contacts and stainless steel screws, it provides reliable electrical connections in harsh environments. Capable of accommodating cable outer diameters between 10.6mm and 12.5mm and wire sizes from 18AWG to 14AWG, it operates at up to 15A and 450VAC within a temperature range of -40°C to 105°C. Its UV resistance and sealing mechanism ensure outdoor durability and long-term performance.
AMPHENOL LTW SCLPGT204RD Waterproof T Tube Connector Specifications:
- Waterproof rating: IP68 (50m, 24hrs)
- Housing Material: PA66+GF, Black
- Contacts: Nickel-plated Brass
- Screws: Stainless Steel, Nickel-Plated
- Number of Positions: 2P, 3P, 4P
- Current Rating: 15A for 3P & 4P, 20A for 2P
- Voltage Rating: 450VAC
- Temperature Range: -40°C to 105°C
- Cable Outer Diameter Range: 10.6mm to 12.5mm
- Wire Size: 14~18 AWG
- Seal: Silicon
- Gasket: Silicon
- Gland Nut: PAG+GF, Black
- Gland Body: PA66+GF, Black
- Gland Pipe: PA66, Black
- Color Identification Sealing: Red, Yellow, Green, Blue
Buy the Amphenol SCLPGT204RD – Reliable Waterproof T Tube Connector for Industrial Applications
Discover the Amphenol waterproof T tube connector, engineered for outdoor and industrial environments. With IP68 rating, UV resistance, and high current capacity, it offers durable, dependable connections. Easy installation and sealing ensure safety and longevity in demanding applications. Suitable for wire sizes from 14 to 18 AWG and cable diameters up to 12.5mm, it operates reliably within a wide temperature range. Perfect for switchgear, control panels, and outdoor electrical systems, providing confidence in every connection.
Order your Amphenol Series SCLPGT204RD waterproof T tube connector today and ensure durable, reliable connections in outdoor and harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW SCLPGT204RD?
You can click on the BUY or RFQ button to purchase SCLPGT204RD from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part SCLPGT204RD?
You can download the SCLPGT204RD datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of SCLPGT204RD?
AMPHENOL LTW
