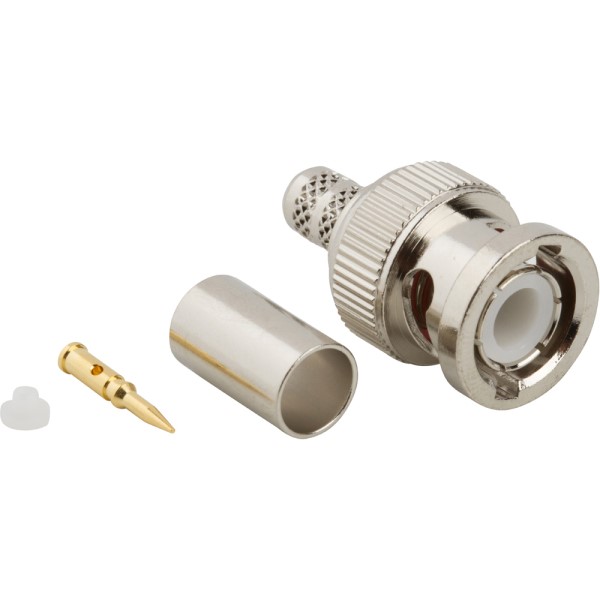

AMPHENOL RF 03132110RFX BNC Connector
Amphenol's 031-321-10RFX BNC connector is a miniature, lightweight RF connector developed for applications requiring quick and reliable connections. Its bayonet coupling mechanism allows for easy mating and unmating, while its design supports a wide range of RG and industry-standard coaxial cables. Commonly used in test instrumentation, medical equipment, and communication systems, the 031-321-10RFX provides excellent performance and durability. Amphenol offers both 50Ω and 75Ω BNC connectors to meet diverse impedance matching needs, with options for military-grade connectors produced to MIL-C-39012 specifications.
AMPHENOL RF 03132110RFX BNC Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Material: {'Body and Outer Contacts': 'Brass, nickel plated', 'Male Contact': 'Brass, gold plated', 'Female Contact': 'Beryllium copper or phosphor bronze, gold or silver plated', 'Crimp Ferrule': 'Copper or brass, nickel plated', 'Insulator': 'PTFE, copolymer of styrene'}
Buy the 031-321-10RFX AMPHENOL RF BNC Connector | myMectronic
Securely purchase the Amphenol 031-321-10RFX BNC connector online for reliable RF connectivity.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 03132110RFX?
You can click on the BUY or RFQ button to purchase 03132110RFX from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 03132110RFX?
You can download the 03132110RFX datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 03132110RFX?
AMPHENOL RF
