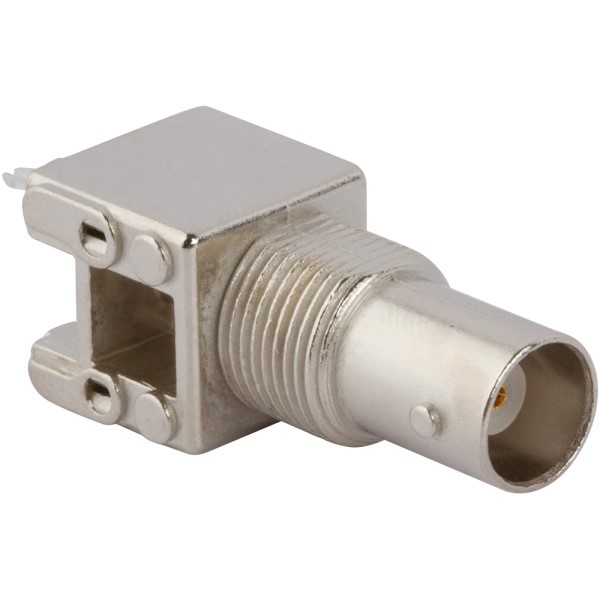

AMPHENOL RF 03156331010 BNC Connector
Amphenol's BNC connectors are miniature, lightweight RF connectors developed in the late 1940s. They offer a quick-connect/disconnect design with a bayonet coupling mechanism, making them ideal for applications requiring frequent connections and disconnections. These connectors are commonly used with miniature to subminiature coaxial cables like RG-58, RG-59, RG-179, and RG-316. Amphenol offers both 50Ω and 75Ω BNC connectors to meet diverse impedance matching needs, catering to applications in telecommunications, broadcast, instrumentation, and medical equipment. Military-grade connectors are produced to MIL-C-39012 specifications, ensuring high performance and reliability.
AMPHENOL RF 03156331010 BNC Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Temperature Range: -65°C to +165°C
- Material (Body and Outer Contacts): Brass, nickel plated
- Material (Male Contact): Brass, gold plated
- Material (Female Contact): Beryllium copper or phosphor bronze, gold or silver plated
