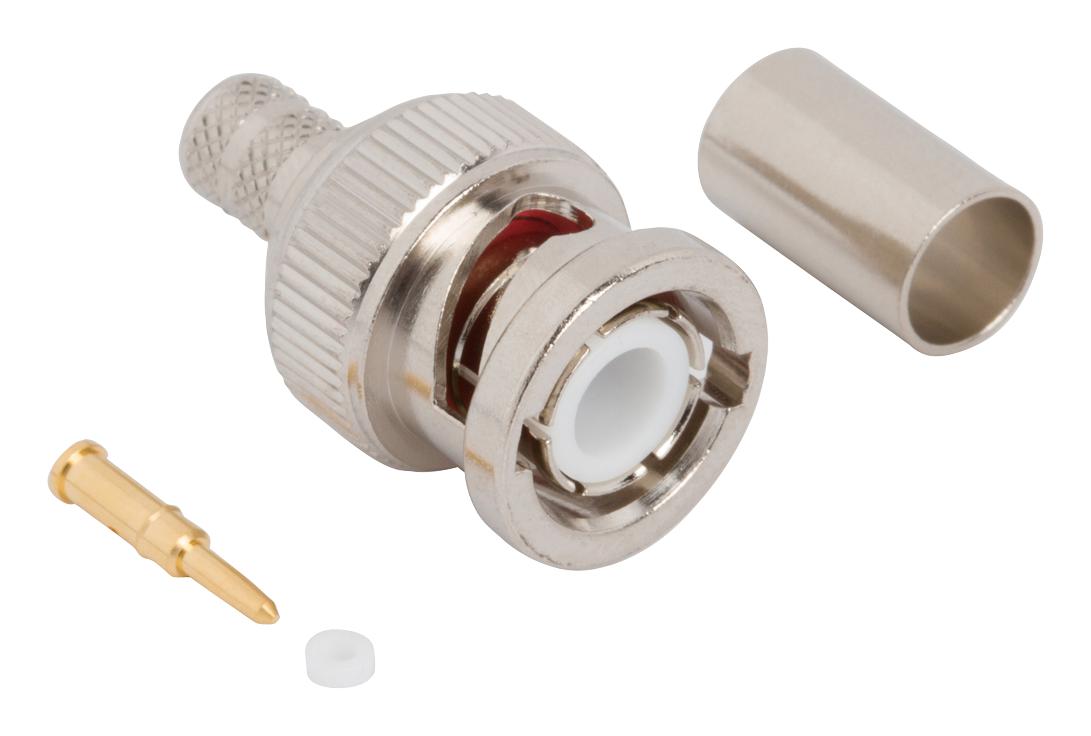

Amphenol RF 0316861 RF Connector
This high-performance RF connector designed for broadband applications offers impedance of 50 ohms and operates within a frequency range of DC to 12.4 GHz. Constructed with durable materials such as phosphor bronze, brass, and gold-plated contacts, it features a nickel-plated shell, washer, and ferrule, with an insulator made of PTFE for excellent electrical insulation. The connector withstands voltages up to 1500 VRMS and maintains a return loss of 1.20 max from DC to 4 GHz and 1.30 max from 4 to 12.4 GHz, ensuring reliable signal transmission across a wide frequency spectrum.
Amphenol RF 0316861 RF Connector Specifications:
- Impedance: 50 ohm
- Frequency Range: DC - 12.4 GHz
- Return Loss: 1.20 MAX @ DC - 4 GHz, 1.30 MAX @ 4 - 12.4 GHz
- Dielectric Withstanding Voltage: 1500 VRMS MIN
- Materials: Body - Phosphor Bronze, Nickel Plating; Shell, Washer & Ferrule - Brass, Nickel Plating; Contact - Brass, Gold Plating; Insulator - PTFE
- Durability: 500 cycles MIN
- Temperature Range: -65°C to 165°C
- Packaging: Single Pack, Marked with 'AMPHENOL, 31-6861, AND DATE CODE'
- Cable Assembly Instructions: Trim cable, slide ferrule and insulator, solder center conductor, insert cable, crimp ferrule over braid with 0.255" hex die
Buy the Amphenol 0316861 – Reliable RF Connector for Broadband Applications
Enhance your electronic assembly with the RF connector designed for high-frequency broadband applications. Featuring 50 ohm impedance, wide DC to 12.4 GHz range, and durable nickel-plated components, this connector ensures reliable signal integrity. Ideal for RF testing, communication equipment, and industrial electronics, it is built to withstand harsh environments with an operating temperature range of -65°C to 165°C. Easy to assemble with clear instructions, it’s a vital component for engineers seeking performance and durability in wireless communication systems.
Buy Amphenol 0316861 now and experience unmatched reliability and high-frequency performance with durable construction and excellent impedance matching.
Frequently Asked Questions
Where can I buy Amphenol RF 0316861?
You can click on the BUY or RFQ button to purchase 0316861 from an authorized Amphenol RF distributor.
How do I troubleshoot issues or seek technical support for part 0316861?
You can download the 0316861 datasheet or visit the Amphenol RF website for support.
Who is the manufacturer of 0316861?
Amphenol RF
