AMPHENOL RF 0316921 RF Connector
This waterproof and tamper-resistant TNC and RP-TNC connector series offers reliable 50-ohm impedance, threaded coupling, and IP67 ratings. Designed for outdoor, industrial, military, and broadband applications, these connectors feature durable brass and copper materials, with flexible configurations including straight, right-angle, and bulkhead mount options. Their rugged construction ensures longevity and performance in harsh environments, supporting up to 500 mating cycles. With excellent electrical characteristics, eco-friendly RoHS compliance, and temperature resistance from -65°C to +165°C, these connectors are essential for secure, high-performance RF systems.
AMPHENOL RF 0316921 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC - 11 GHz
- Return Loss (VSWR): 3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MO Min.
- Contact Resistance: Center Contact 1.5 mQ Max., Outer Contact 0.2 mQ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- RoHS: Compliant with Exemption 6C
- Body and Outer Contacts: Brass, Brass Beryllium Copper
- Male Contact: Beryllium Copper
- Female Contact: Brass
- Crimp Ferrule: Copper
- Insulator: PTFE
- Gasket: Silicone

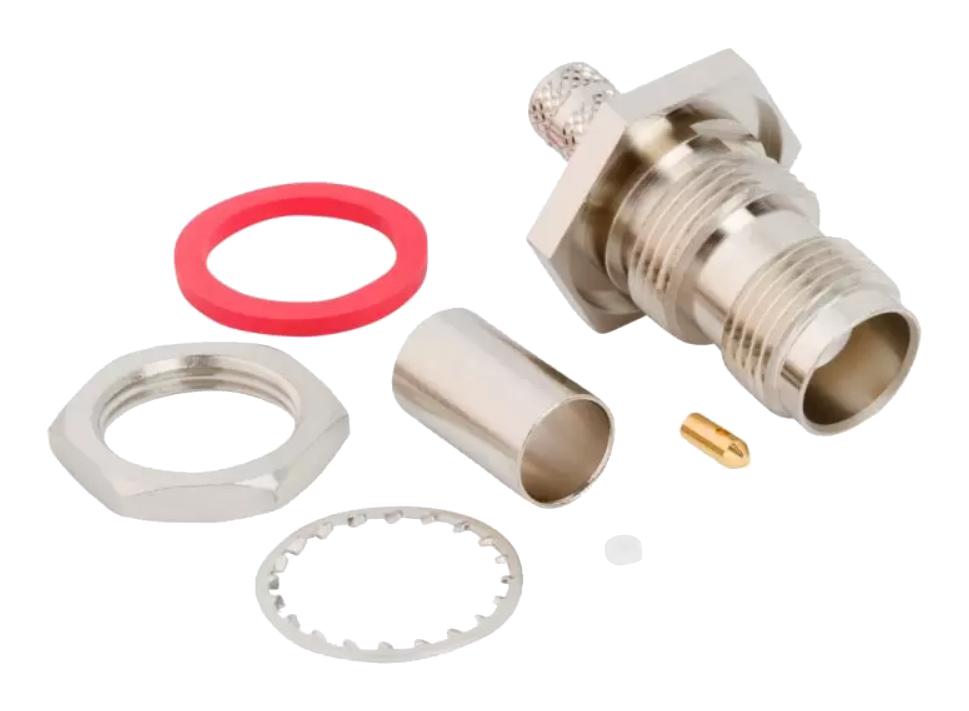

Buy the Amphenol Series IP67 TNC: 0316921
Explore and purchase Amphenol RF waterproof TNC and RP-TNC connectors online. Designed with IP67 rated waterproofing, tamper-resistant features, and rugged durability, these connectors are ideal for outdoor, industrial, military, and broadband applications. They offer reliable 50 ohm impedance, threaded coupling, and high mating cycle life, ensuring stable electrical performance in extreme temperatures from -65°C to +165°C. Choose from various configurations including straight, right-angle, and bulkhead mount versions to suit your system needs. Trust Amphenol for quality RF solutions that deliver secure and resilient connectivity in demanding environments.
Get Amphenol IP67 TNC connector today—built for secure, waterproof RF connections in harsh environments and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL RF 0316921?
You can click on the BUY or RFQ button to purchase 0316921 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 0316921?
You can download the 0316921 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 0316921?
AMPHENOL RF
