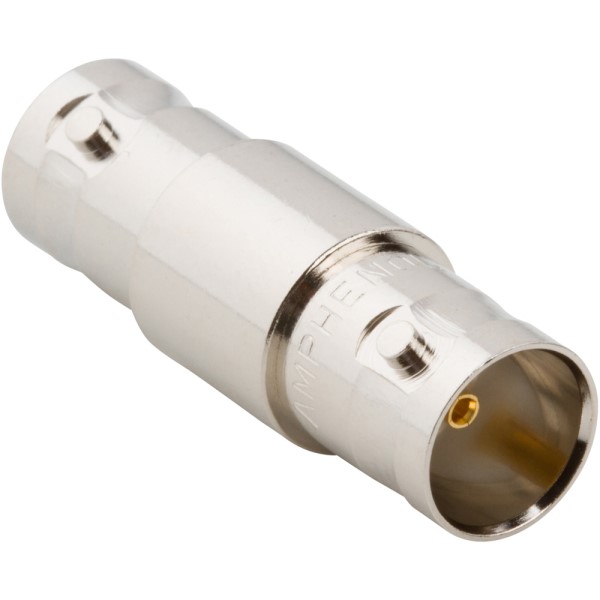

AMPHENOL RF 03170019 BNC Connector
Amphenol's 031-70019 BNC connector is a miniature, lightweight RF connector developed in the late 1940s. Featuring a bayonet coupling mechanism for quick mating and unmating, it's designed for coaxial cable termination and offers a range of termination styles including crimp/crimp, clamp/solder, and SURETWIST. Suitable for applications requiring low reflection and impedance matching, such as test instrumentation, medical equipment, and telecommunications, this connector provides reliable performance and is available in both 50Ω and 75Ω impedance designs. Military-grade versions adhere to MIL-C-39012 specifications.
AMPHENOL RF 03170019 BNC Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Temperature Range: -65°C to +165°C
- Material (Body): Brass, nickel plated
- Material (Male Contact): Brass, gold plated
- Material (Female Contact): Beryllium copper or phosphor bronze, gold or silver plated
