AMPHENOL RF 03171065 BNC Connector

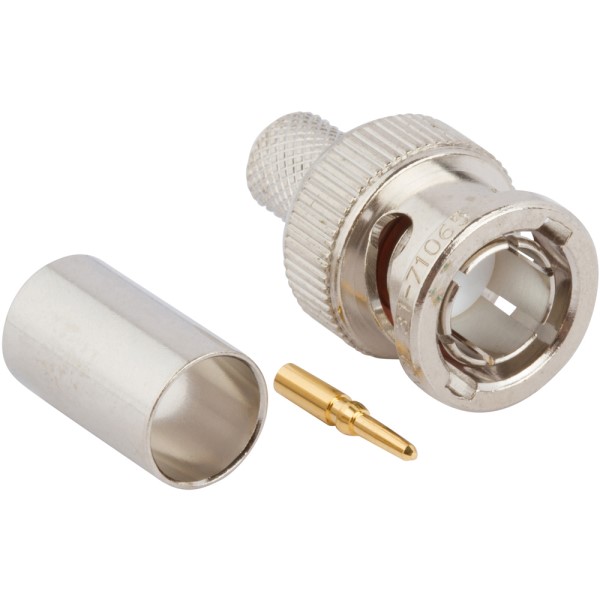

Amphenol's 031-71065 BNC connector is a miniature, lightweight RF connector developed for quick and easy connection and disconnection. Its bayonet coupling mechanism ensures secure mating with a quarter-turn. Designed for use with a wide range of coaxial cables, these connectors are available in crimp/crimp, clamp/solder, and other termination styles. They are commonly used in medical equipment, test instrumentation, antennas, base stations, and telecommunications applications. Amphenol offers both 50Ω and 75Ω versions to meet diverse impedance matching requirements. Military-grade connectors are produced to MIL-C-39012 specifications, while commercial-grade connectors are easily identifiable with the 'RFX' designation.
AMPHENOL RF 03171065 BNC Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Temperature Range: -65°C to +165°C
- Material (Body & Outer Contacts): Brass, nickel plated
- Material (Male Contact): Brass, gold plated
- Material (Female Contact): Beryllium copper or phosphor bronze, gold or silver plated
