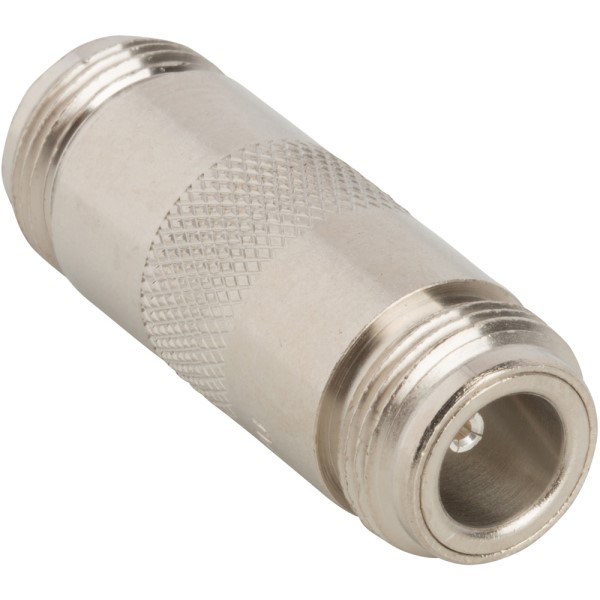

AMPHENOL RF 082101 Type N Connector
The Amphenol 082-101 is a Type N connector, a robust and weatherproof RF connector developed in the 1940s for consistent performance up to 11 GHz. It accommodates a wide range of coaxial cables like RG-8, RG-225, RG-58, and RG-141. Available in standard and helical corrugated versions, this connector is ideal for applications such as antennas, base stations, broadcast systems, cable assemblies, radar systems, and instrumentation. It comes in various styles including plugs, jacks, and receptacles, catering to diverse customer needs with military, industrial, and commercial grade options.
AMPHENOL RF 082101 Type N Connector Specifications:
- Impedance: 50 ohms
- Mating: 5/8-24 threaded
- Frequency Range: 0-11 GHz
- Voltage Rating: 1,500 volts peak
- Dielectric: 2,500 volts rms
- VSWR: 1.3 max. 0-11 GHz
- Insertion Loss: 0.15 dB maximum at 10 GHz
- Insulation Resistance: 5000 megohms minimum
- Cable Affixment: Crimp or solder
- Material: Male contacts: brass; Female contacts: phosphor bronze or beryllium copper, silver or gold plated
- Military Specifications: MIL-C-39012 & MIL-A-55339 (where applicable)
Buy the 082-101 AMPHENOL RF Type N Connector | myMectronic
Securely purchase the Amphenol 082-101 Type N connector online for your RF applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 082101?
You can click on the BUY or RFQ button to purchase 082101 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 082101?
You can download the 082101 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 082101?
AMPHENOL RF
