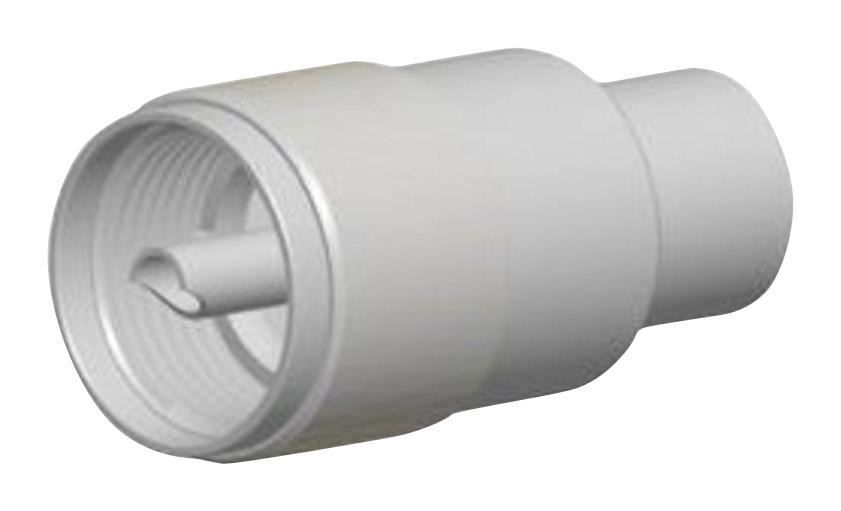

AMPHENOL RF 083822 UHF Connector
Amphenol's 083-822 UHF connector is a general-purpose unit invented in the 1930s for use in low-frequency systems. These connectors are characterized by their threaded coupling, making them suitable for various commercial applications like antennas, cable assembly, and public address systems. While performance may not match industrial or military-grade connectors, they offer a cost-effective solution for a wide range of applications. Optional reducing adapters accommodate various coaxial cables, and solder or crimp termination options provide flexibility in assembly. The connectors are designed for use in frequencies up to 300 MHz and offer a robust and reliable connection for commercial use.
AMPHENOL RF 083822 UHF Connector Specifications:
- Impedance: Non-constant
- Frequency range: DC - 300 Hz (usable to 500 Hz)
- Voltage rating (at sea level): ≤ 500 V peak (depending on cable)
- Insulation resistance: 5,000 MΩ minimum
- Dielectric withstanding voltage: 1,000 Vrms (at sea level)
- Mating: 5/8-24 Threaded coupling
- Center conductor cable affixment: Braid solder. set screw, clamp and crimp
- Durability (matings): 500 cycles minimum
- Temperature range: -65°C to +165°C
- Thermal shock: -55°C to +85°C
- Corrosion: MIL-STD-202, method 107, cond. A
- Vibration: MIL-STD-202, method 101, cond. B
- Mechanical shock: MIL-STD-202, method 204, cond. A
- Body and outer contacts: Brass or zinc alloy
- Male contact: Brass, silver plated
- Female contact: Beryllium copper, silver plated
- Crimp ferrule: Copper or brass
- Other metal parts: Brass, nickel plated
- Insulator: PTFE, copolymer of styrene, or mica-filled phenolic
