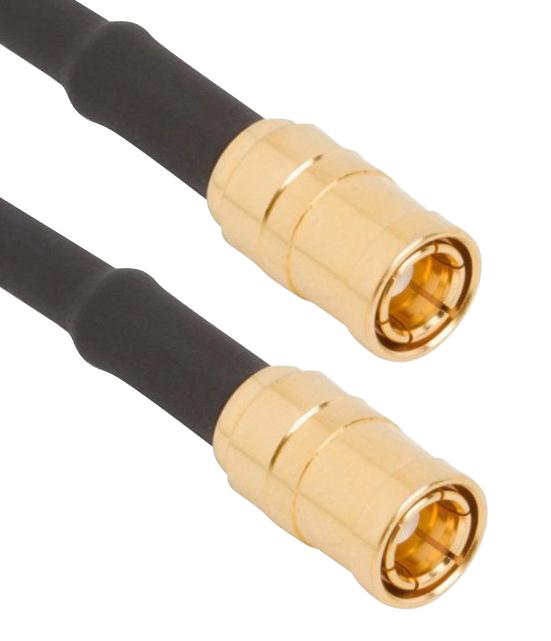

AMPHENOL RF 09570037036 SMB Plug to Plug Cable
Amphenol RF's SMB plug to plug cable assemblies are engineered for reliable performance in a variety of applications. These 50 Ohm assemblies feature high-quality brass connectors with gold plating and a push-on coupling mechanism for easy mating and un-mating. Suitable for test and measurement equipment, antennas, military applications, and WLAN systems, these assemblies provide a versatile solution for connecting devices in tight spaces. Constructed with flexible coax cables, they offer convenience and adaptability.
AMPHENOL RF 09570037036 SMB Plug to Plug Cable Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 4 GHz
- Mating Cycles: 500 Cycles Min.
- Temperature Range: -40° to 85°C
- RoHS: Compliant with excemption 6C
- Body Material: Brass, Gold Plated
- Female Contact Material: Beryllium Copper, Gold Plated
- Male Contact Material: Beryllium Copper, Gold Plated
- Insulator Material: PTFE
- Length Code -006: 6.00 in (152.40 mm)
- Length Code -012: 12.00 in (304.80 mm)
- Length Code -018: 18.00 in (457.20 mm)
- Length Code -024: 24.00 in (610 mm)
- Length Code -036: 36.00 in (914.40 mm)
- Length Code -048: 48.00 in (1219.20 mm)
- Length Code -060: 60.00 in (1524 mm)
- Length Code -072: 72.00 in (1828.8 mm)
- Length Code -M025: 9.84 in (250 mm)
- Length Code -M050: 19.69 in (500 mm)
- Length Code -M075: 29.53 in (750 mm)
- Length Code -M100: 39.37 in (1000 mm)
- Length Code -M125: 49.21 in (1250 mm)
- Length Code -M150: 59.06 in (1500 mm)
- Length Code -M200: 78.74 in (2000 mm)
- Length Code -M300: 118.11 in (3000 mm)
