AMPHENOL RF 095850264200 TNC Connector
The IP67 waterproof TNC and RP-TNC connectors are designed for durability and security in harsh environments. These connectors feature a threaded coupling for secure mating, are IP67 rated for waterproof performance, and are tamper resistant. Suitable for antennas, industrial, wireless, military, and broadband applications, they come in various configurations including straight, right-angle, and bulkhead mounts. Made with brass, beryllium copper, copper, and PTFE insulators, they withstand temperatures from -65°C to +165°C, ensuring reliable electrical and mechanical performance in demanding conditions.
AMPHENOL RF 095850264200 TNC Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 11 GHz
- Return Loss (VSWR): 3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MΩ Min.
- Contact Resistance: Center contact 1.5 mΩ Max., Outer contact 0.2 mΩ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- RoHS Compliant
- Materials: Body and Outer Contacts Brass, Male Contact Brass Beryllium Copper, Female Contact Beryllium Copper, Crimp Ferrule Copper, Insulator PTFE, Gasket Silicone

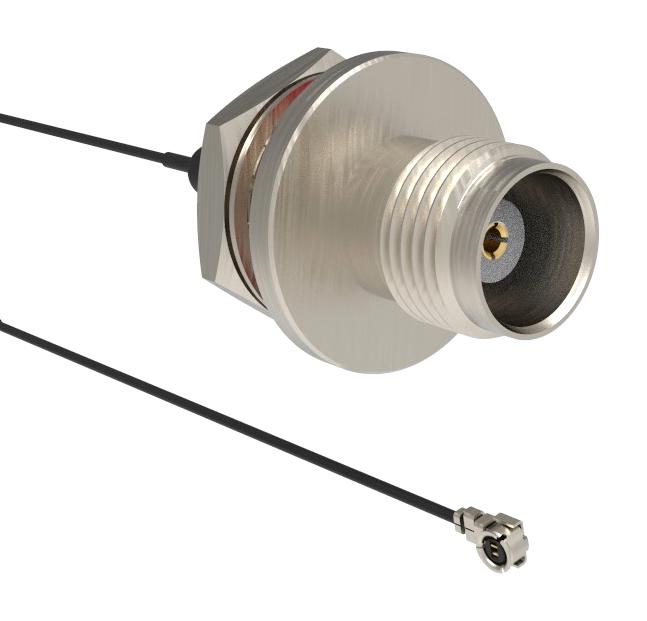

Buy the Buy Amphenol RF IP67 Waterproof TNC Part Number 095850264200 Online
Enhance your project with the high-quality waterproof TNC connector from Amphenol RF. Designed for durability, these connectors offer IP67 protection, tamper resistance, and secure threaded coupling for dependable connections in outdoor, industrial, and military applications. Available in various configurations such as straight, right-angle, and bulkhead mounts, they meet demanding environmental standards. Made with high-grade materials including brass and PTFE, ensuring reliable electrical performance across a temperature range of -65°C to +165°C. Purchase online now for quick delivery and trusted quality.
Order your Amphenol RF Series095850264200 waterproof TNC connector today and ensure reliable performance in harsh environments with tamper-resistant security.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095850264200?
You can click on the BUY or RFQ button to purchase 095850264200 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095850264200?
You can download the 095850264200 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095850264200?
AMPHENOL RF
