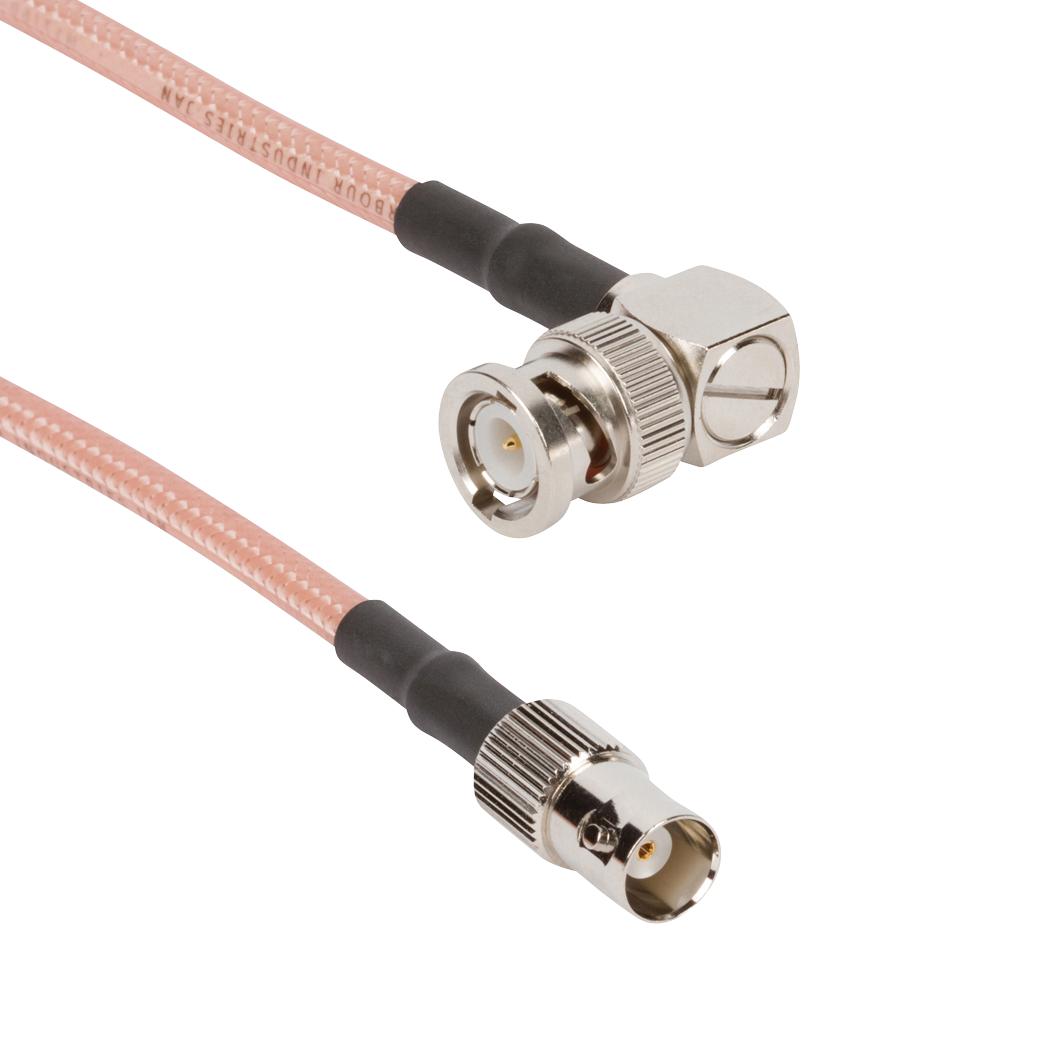

AMPHENOL RF 095850265048 BNC Cable Assembly
This BNC cable assembly features a 50-ohm impedance designed for high-frequency applications up to 4 GHz. Manufactured with high-quality brass nickel-plated bodies and gold-plated contacts, it offers excellent electrical performance, durability, and vibration resistance. The assembly is available in various lengths, including 48 inches, optimized for test, measurement, telecommunications, industrial connectivity, and antenna connections. It provides quick bayonet coupling for easy mating and un-mating, making it suitable for use in demanding environments and wide temperature ranges from -40°C to 85°C.
AMPHENOL RF 095850265048 BNC Cable Assembly Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC to 4 GHz
- Mating Cycles: Minimum 500 cycles
- Temperature Range: -40°C to 85°C
- Body Material: Brass, Nickel Plated
- Female Contact Material: Phosphor Bronze, Gold Plated
- Male Contact Material: Brass, Gold Plated
- Insulator Material: PTFE
- Standard Lengths: 6 inches (152.4 mm), 10 inches (254 mm), 12 inches (305 mm), 24 inches (610 mm), 36 inches (914.4 mm), 48 inches (1219.2 mm), 196.85 inches (5000 mm)
Buy the Amphenol Series BNC Cable: 095850265048
Purchase the Amphenol BNC cable assembly designed for high-frequency applications up to 4 GHz with 50-ohm impedance, featuring durable brass and gold-plated contacts for reliable performance. Available in multiple lengths including 48 inches, it’s ideal for test and measurement, telecommunications, industrial connectivity, and antenna connections. The assembly has a quick bayonet coupling for easy use, withstands up to 500 mating cycles, and operates within a temperature range of -40°C to 85°C. Order online now for dependable RF connectivity solutions.
Get Amphenol 095850265048 today—built for precision and long-lasting durability in high-frequency RF applications.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095850265048?
You can click on the BUY or RFQ button to purchase 095850265048 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095850265048?
You can download the 095850265048 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095850265048?
AMPHENOL RF
