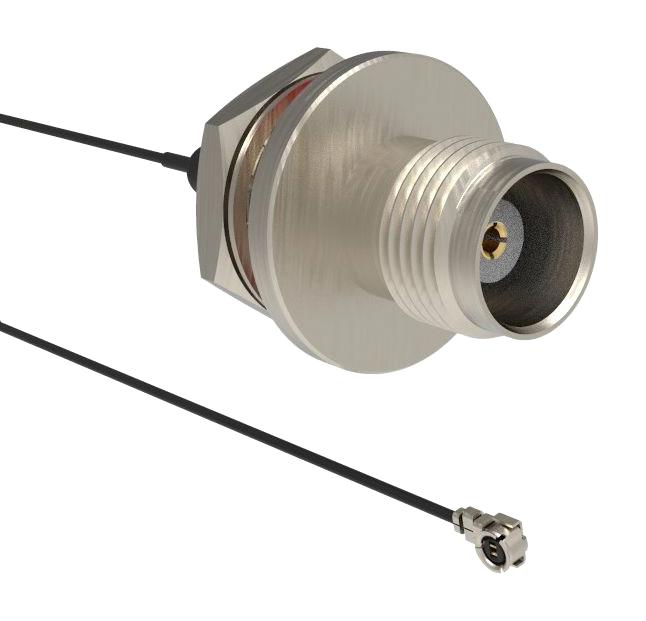

AMPHENOL RF 095850281150 Wireless Connector
The TNC and RP-TNC connectors from Amphenol RF are waterproof, IP67-rated, and tamper resistant, offering reliable performance in harsh environments. These 50-ohm threaded connectors feature durable brass and beryllium copper contacts, PTFE insulators, and silicone gaskets, suitable for industrial, military, wireless, and broadband applications. Available in straight, right-angle, bulkhead, and PCB mount configurations, they support frequencies up to 11 GHz, with a maximum of 500 mating cycles. Their environmental range spans from -65°C to +165°C, ensuring durability and consistent connectivity in demanding conditions.
AMPHENOL RF 095850281150 Wireless Connector Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC - 11 GHz
- Return Loss: 1.3 (-18 dB) Max
- Dielectric Withstanding Voltage: 1500 VRMS Max
- Insulation Resistance: 5000 MΩ Min
- Contact Resistance: Center Contact 1.5 mΩ Max, Outer Contact 0.2 mΩ Max
- Coupling Style: Threaded
- Mating Cycles: 500 Min
- Temperature Range: -65°C to +165°C
- Materials: Brass body, Beryllium Copper contacts, PTFE insulator, Silicone gasket
- RoHS Compliant
Buy the Buy Amphenol RF TNC Part Number 095850281150 Online
Secure your systems with the waterproof, IP67-rated TNC connectors from Amphenol RF. Designed for durability and high-frequency performance, these connectors are ideal for industrial, military, and broadband applications. Easy to install in various configurations including straight, right-angle, and bulkhead, they withstand extreme temperatures from -65°C to +165°C and support up to 500 mating cycles. Purchase online now to ensure reliable, protected connections in demanding environments with quick, secure delivery.
Buy Amphenol RF TNC Part Number 095850281150 now and experience unmatched reliability and performance in harsh environments.
