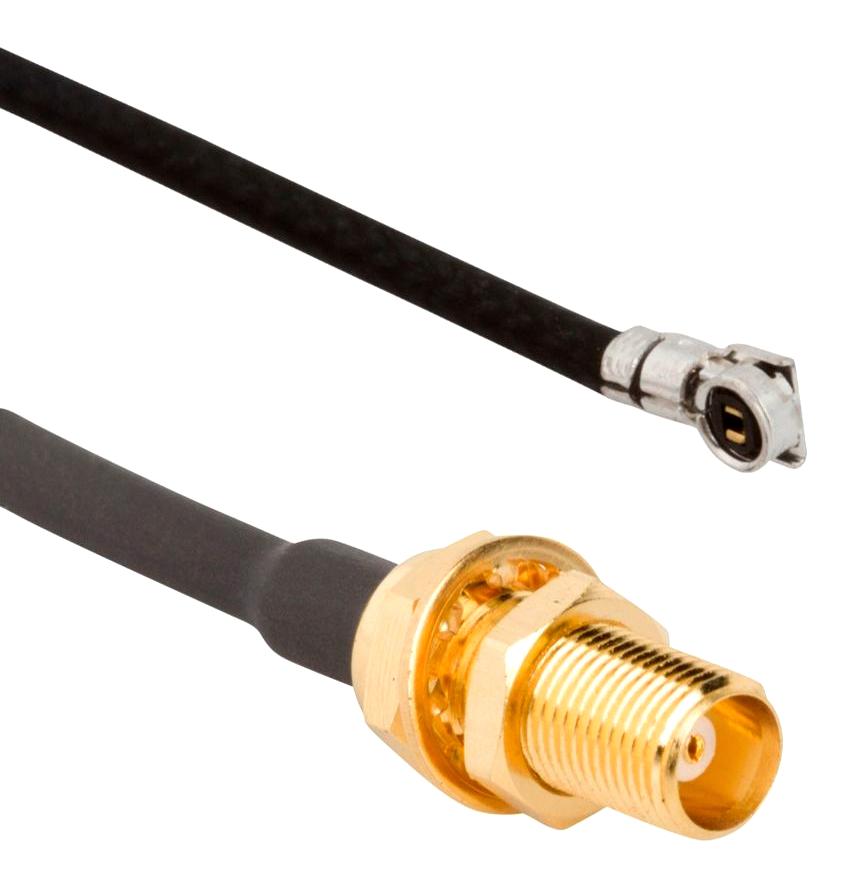

AMPHENOL RF 095900558100 Straight Bulkhead Jack to AMC4
Amphenol RF's 095-900-558-100 MMCX connector is a versatile solution for micro-coax cable applications. Designed for space-constrained environments like IoT infrastructure and consumer devices, this connector provides broadband performance and secure mating. Its quick connect/disconnect snap-on design simplifies installation and maintenance. The MMCX mounted externally on a panel allows for easy routing within an enclosure, making it ideal for external antennas with an MMCX plug interface. It is RoHS compliant and offers a wide range of configurations and cable types to meet diverse application needs.
AMPHENOL RF 095900558100 Straight Bulkhead Jack to AMC4 Specifications:
- Cable Type: ['Straight Bulkhead Jack – Rear Mount', 'Straight Plug', 'Right-Angle Plug']
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 170 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Max
- VSWR (Return Loss): 1.25 (-19 dB) Max (DC - 4 GHz), 1.40 (-16 dB) Max (4 - 6 GHz)
- Insulation Resistance: 500 MΩMin
- Center Contact Resistance: 10 mΩMin
- Outer Contact Resistance: 5 mΩMin
- Temperature Range: −40°C to +90°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body: Brass, Gold Plated
- Contact: Brass, Gold Plated
- Insulator: PTFE, Natural
- RoHS Compliance: Compliant with Excemption 6C
