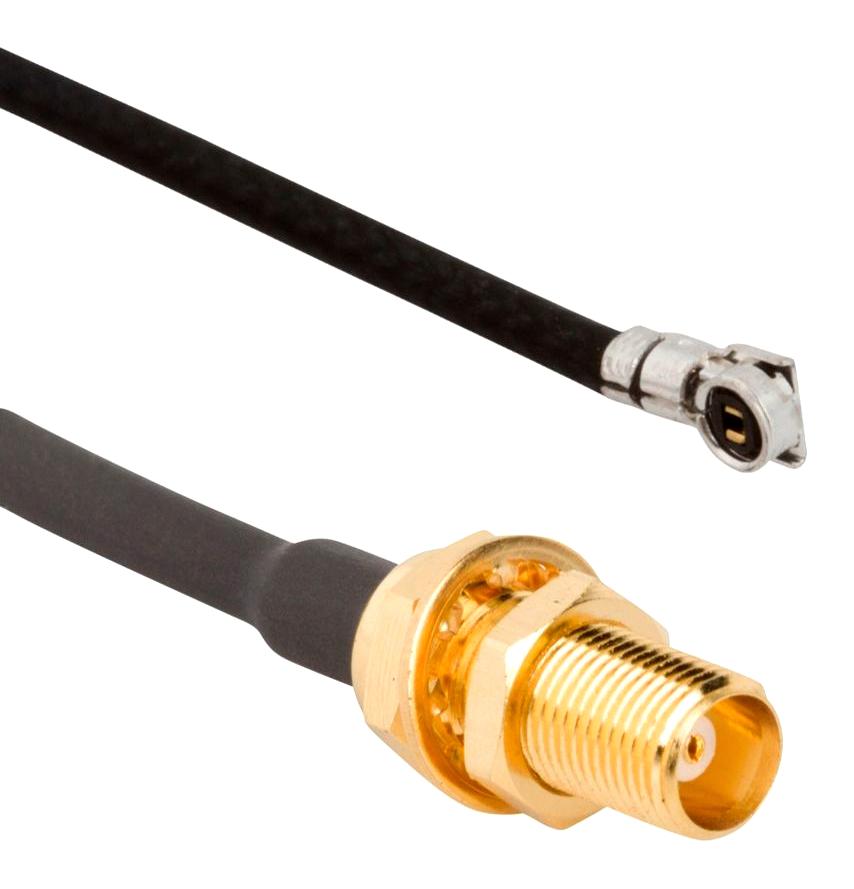

AMPHENOL RF 095900558200 Straight Bulkhead Jack to AMC4
Amphenol RF's 095-900-558-200 MMCX connector provides a robust and flexible solution for micro-coax cable connections. Designed for applications with limited space, such as IoT infrastructure and consumer devices, this connector features broadband performance and a convenient snap-on mating mechanism. It's well-suited for external antennas with an MMCX plug interface, allowing for easy routing within enclosures and secure mating to ultraminiature interfaces. The connector's design facilitates quick assembly and reliable performance in a variety of environments.
AMPHENOL RF 095900558200 Straight Bulkhead Jack to AMC4 Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 170 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Max
- VSWR (Return Loss): DC - 4 GHz: 1.25 (-19 dB) Max, 4 - 6 GHz: 1.40 (-16 dB) Max
- Insulation Resistance: 500 MΩMin
- Center Contact Resistance: 10 mΩMin
- Outer Contact Resistance: 5 mΩMin
- Temperature Range: −40°C to +90°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body: Brass, Gold Plated
- Contact: Brass, Gold Plated
- Insulator: PTFE, Natural
- RoHS Compliance: Compliant with Excemption 6C
Buy the 095-900-558-200 AMPHENOL RF Straight Bulkhead Jack to AMC4 | myMectronic
Securely purchase the Amphenol RF 095-900-558-200 connector for your project today.
