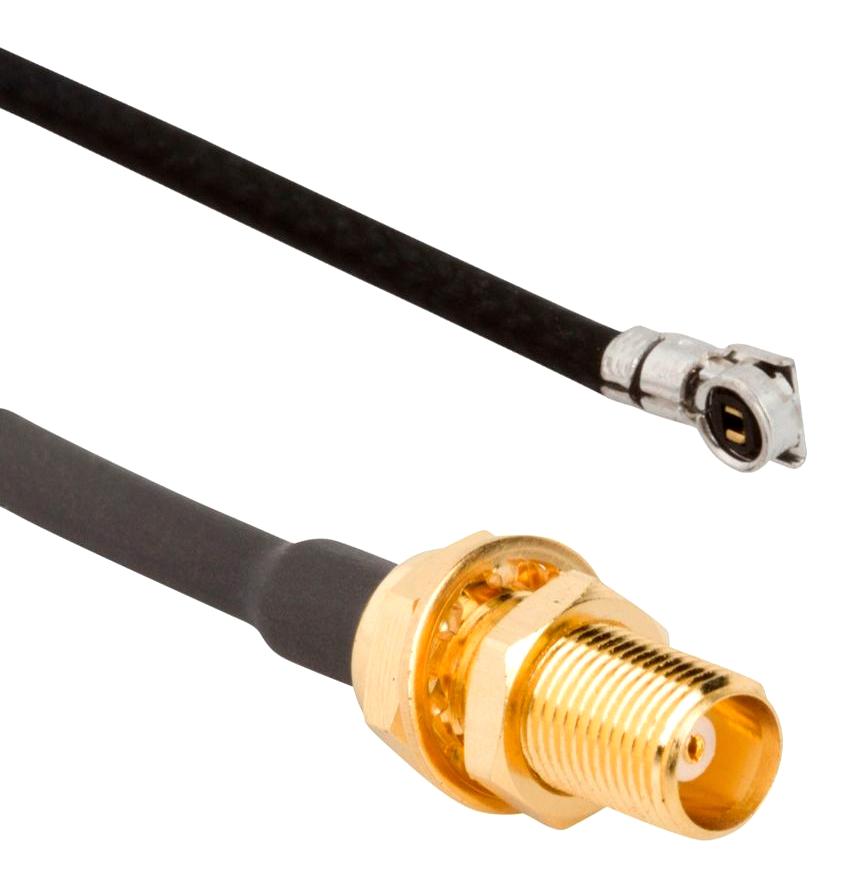

AMPHENOL RF 095900558300 MMCX Connector
Amphenol RF's MMCX connectors and cable assemblies are engineered for micro-coax cable types, providing 50 ohm impedance and excellent performance in space-constrained applications like IoT infrastructure and consumer devices. These connectors feature maximum flexibility and secure mating, allowing for easy routing within enclosures and connections to AMC or AMC4 interfaces. They are ideal for external antennas with MMCX plug interfaces, offering broadband performance, quick connect/disconnect capabilities, and a wide variety of configurations.
AMPHENOL RF 095900558300 MMCX Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 170 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Max
- VSWR (Return Loss): DC - 4 GHz: 1.25 (-19 dB) Max, 4 - 6 GHz: 1.40 (-16 dB) Max
- Insulation Resistance: 500 MΩMin
- Center Contact Resistance: 10 mΩMin
- Outer Contact Resistance: 5 mΩMin
- Temperature Range: −40°C to +90°C
- RoHS Compliance: Compliant with Excemption 6C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body Material: Brass, Gold Plated
- Contact Material: Brass, Gold Plated
- Insulator Material: PTFE, Natural
