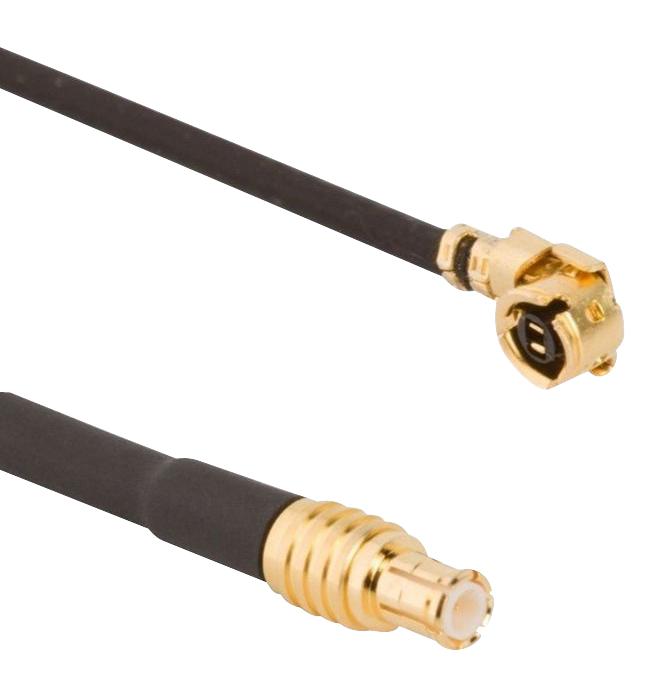

AMPHENOL RF 095900560200 MCX Plug Connector
Amphenol RF's 095-900-560-200 MCX plug connector is a miniature solution for micro-coax cable applications, particularly beneficial in IoT infrastructure and consumer devices where space is limited. Its robust design ensures secure mating and maximum flexibility. The connector's quick connect/disconnect snap-on mating simplifies assembly and maintenance. It is RoHS compliant and designed for a frequency range of DC to 6 GHz, offering reliable performance in various wireless applications. The connector's construction includes a brass or beryllium copper body with gold or nickel plating, and a brass contact with gold plating, ensuring excellent electrical performance and durability.
AMPHENOL RF 095900560200 MCX Plug Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 225 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 1000 VRMS Max
- VSWR(Return Loss): 1.3 (-18dB) Max
- Insulation Resistance: 10000 MΩMin
- Center Contact Resistance: 5 mΩMin
- Outer Contact Resistance: 1 mΩMin
- RF Leakage: -60 dB Max @ 1 GHz
- Insertion Loss: 0.10 dB Max @ 1 GHz
- Temperature Range: −65°C to +165°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body Material: Brass or Beryllium Copper, Gold or Nickel Plated
- Contact Material: Brass, Gold Plated
- Insulator Material: PTFE, Natural
