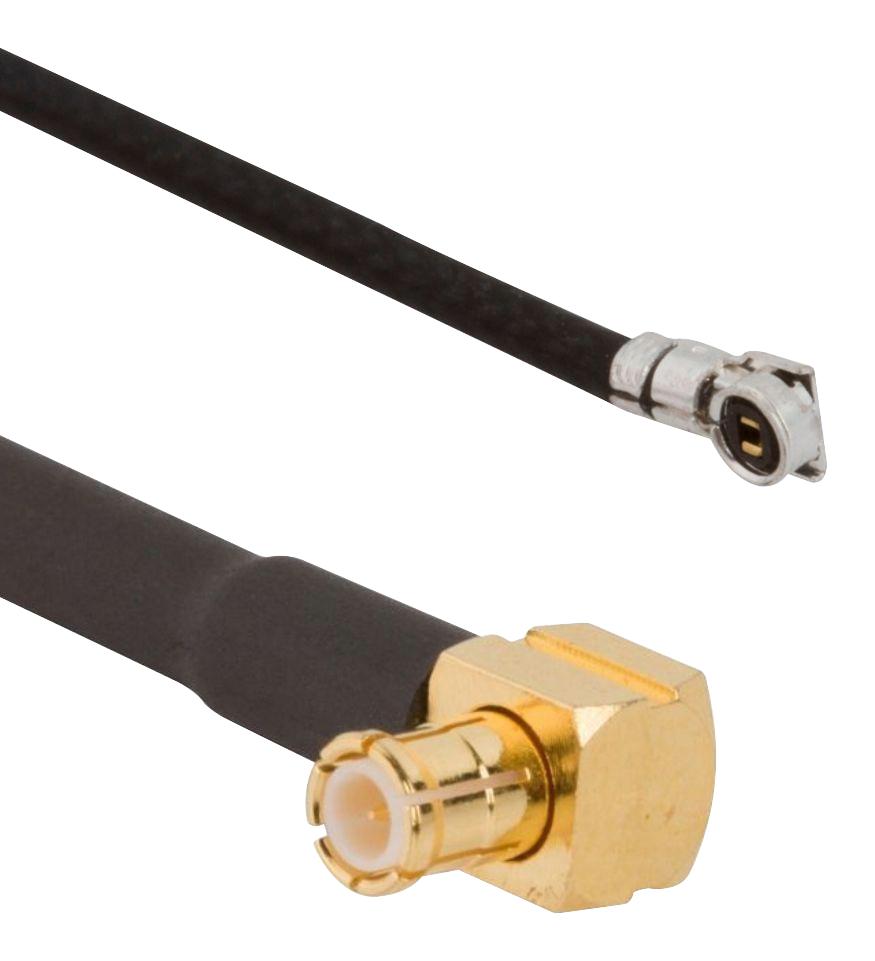

AMPHENOL RF 095900561200 Right-Angle Plug to AMC4 Connector
The Amphenol RF 095-900-561-200 connector is a micro-miniature RF connector designed for use in a variety of applications including wireless modules, Wi-Fi access points, GPS units, and external antenna connections. It features a robust mechanical design, quick connect/disconnect snap-on mating, and is RoHS compliant. This connector is ideal for applications requiring a compact and reliable connection between PCBs or modules in tight spaces. It is part of the MCX Ultraminiature Product Series, offering a balance of performance and size.
AMPHENOL RF 095900561200 Right-Angle Plug to AMC4 Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 225 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 1000 VRMS Max
- VSWR(Return Loss): 1.3 (-18dB) Max
- Insulation Resistance: 10000 MΩMin
- Center Contact Resistance: 5 mΩMin
- Outer Contact Resistance: 1 mΩMin
- RF Leakage: -60 dB Max @ 1 GHz
- Insertion Loss: 0.10 dB Max @ 1 GHz
- Temperature Range: −65°C to +165°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body Material: Brass or Beryllium Copper, Gold or Nickel Plated
- Contact Material: Brass, Gold Plated
- Insulator Material: PTFE, Natural
Buy the 095-900-561-200 AMPHENOL RF Right-Angle Plug to AMC4 Connector | myMectronic
Purchase the Amphenol RF 095-900-561-200 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 095900561200?
You can click on the BUY or RFQ button to purchase 095900561200 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095900561200?
You can download the 095900561200 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095900561200?
AMPHENOL RF
