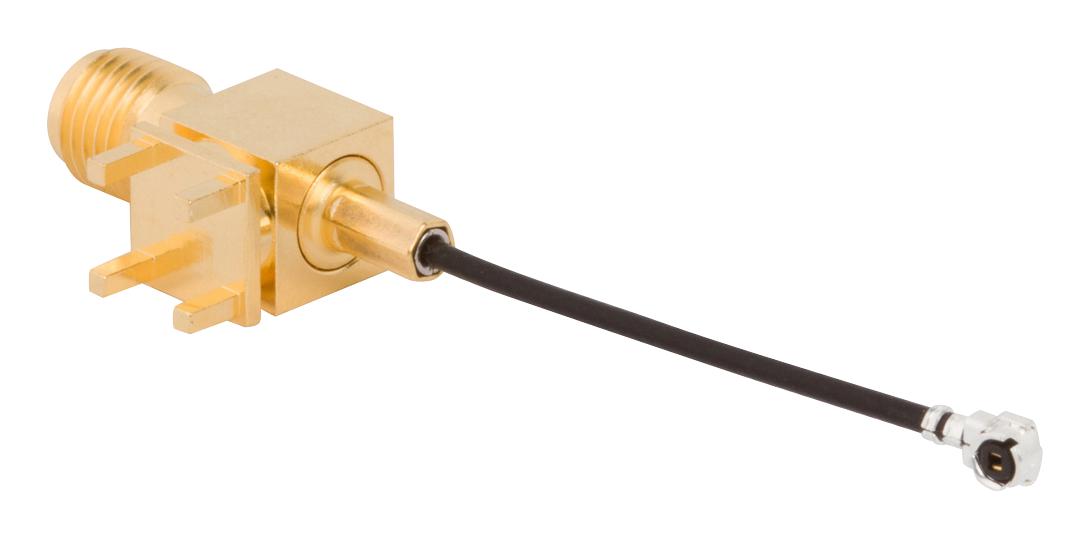

AMPHENOL RF 095902492200 RF SMA Jack
This SMA jack features a brass body with gold plating and a beryllium copper contact also with gold plating, providing excellent electrical performance. It accommodates a 1.13mm micro-coax cable, supporting a frequency range of DC to 3 GHz with an impedance of 50 ohms. The connector withstands voltages up to 200 VRMS, ensuring robust operation in RF applications. Its compact design includes precise dimensions, making it suitable for integration into high-frequency testing and communication equipment. The SMA jack is tested to meet MIL-STD-348 interface standards and is supplied in single pack packaging for easy handling and installation.
AMPHENOL RF 095902492200 RF SMA Jack Specifications:
- Materials: Brass body with gold plating, Beryllium Copper contact, PTFE insulator
- Cable Size: 1.13mm micro-coax
- Impedance: 50 Ohms
- Frequency Range: DC to 3 GHz
- VSWR: 1.2121 max @ DC - 3 GHz
- Dielectric Withstanding Voltage: 200 VRMS, minimum
- Connector Type: SMA jack
- Packaging: Single pack with marked bag
- Interface: MIL-STD-348
- Connector Length: varies based on part number
- Operating Temperature: Not specified, typical for RF connectors
- Finish: Gold plating on body and contact
Buy the Buy Amphenol RF SMA Jack Part Number 095902492200 Online
Enhance your RF system with the premium Amphenol RF SMA Jack featuring gold-plated brass construction, a 50-ohm impedance, and a DC to 3 GHz frequency range. This high-performance connector is designed for durability, offering a dielectric withstand voltage of 200 VRMS. Its compact, precise design ensures easy integration into your communication and test equipment. Perfect for professional engineers needing reliable, high-frequency RF connections, this SMA jack is available in single pack packaging and meets MIL-STD-348 interface standards for top-tier quality and performance.
Order your Amphenol RF SMA Jack 095902492200 today and secure reliable RF connections for your high-frequency applications.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095902492200?
You can click on the BUY or RFQ button to purchase 095902492200 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095902492200?
You can download the 095902492200 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095902492200?
AMPHENOL RF
