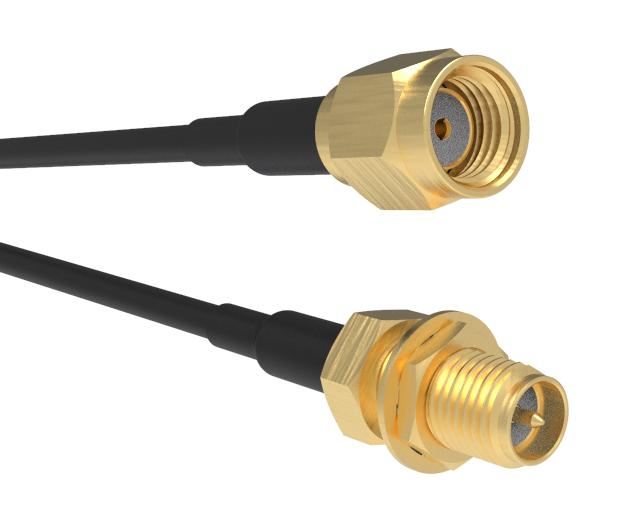

AMPHENOL RF 095902536M100 RF Cable Assembly
The Amphenol RF RP-SMA cable assembly designed with gold-plated brass connectors delivers reliable performance up to 6 GHz, ideal for RF testing, wireless LAN antennas, and cellular communication. Available in fixed lengths from 6 inches to 5 meters on RG-58, RG-174, and RG-316 cables, these assemblies feature threaded connections ensuring secure, low-loss antenna and RF signal connections. Each cable is tested for minimum 500 mating cycles, supporting durable, high-quality, and repeatable connection performance in various professional and testing environments suitable for mobile, wireless, and measurement applications.
AMPHENOL RF 095902536M100 RF Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz*
- Mating Cycles: Minimum 500
- Temperature Range: -65°C to 165°C
- Connector Body: Brass, Gold Plated
- Female Contact: Beryllium Copper, Gold Plated
- Male Contact: Brass, Gold Plated
- Insulator: PTFE, Natural
- Cable Type: RG-58, RG-174, RG-316
- Supported Lengths: 6 in to 196.85 in (152 mm to 5000 mm)
- RoHS Compliant with exemption 6C
Buy the Amphenol RF 095902536 U–2013 Reliable RF Cable Assemblies for Industrial Applications
Enhance your RF testing and wireless communication setups with reliable Amphenol RF cable assemblies featuring gold-plated brass connectors supporting frequencies up to 6 GHz. Available in fixed lengths from 6 inches to 5 meters on RG-58, RG-174, and RG-316 cables, these assemblies are designed for durability and ease of connection using threaded coupling mechanisms. Each cable undergoes rigorous testing with a minimum of 500 mating cycles, ensuring durability and high-performance for laboratory, mobile, and industrial RF applications.
Order your Amphenol RF Series095902536 cable assembly today and ensure high-performance, secure RF connections for your wireless or measurement projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095902536M100?
You can click on the BUY or RFQ button to purchase 095902536M100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095902536M100?
You can download the 095902536M100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095902536M100?
AMPHENOL RF
