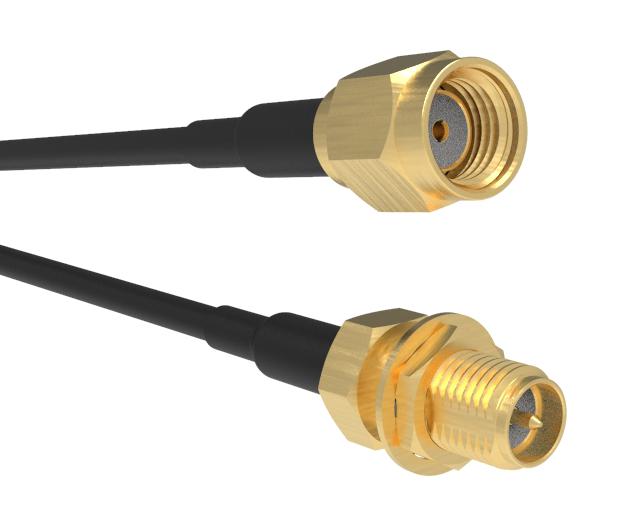

AMPHENOL RF 095902537006 RF Cable Assembly
The Amphenol RF RP-SMA cable assembly features high-performance, fixed-length designs on RG-58, RG-174, and RG-316 cables, supporting frequencies up to 6 GHz. Crafted with gold-plated brass connectors and PTFE insulators, these assemblies offer robust, low-loss connections suitable for RF testing, wireless LAN antennas, and cellular systems. Each assembly undergoes rigorous testing for quality and durability, supporting at least 500 mating cycles. Available in lengths from 6 inches to 1000 mm, they ensure secure, repeatable connections in demanding communication and measurement applications.
AMPHENOL RF 095902537006 RF Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6 GHz
- Mating Cycles: Minimum 500
- Temperature Range: -65°C to 165°C
- Connector Body: Brass, Gold Plated
- Female Contact: Beryllium Copper, Gold Plating
- Male Contact: Brass, Gold Plating
- Insulator: PTFE, Natural
- Cable Types: RG-58, RG-174, RG-316
- Maximum Frequency Range Varies by Cable Type
- Supports a minimum of 500 mating cycles
- RoHS Compliant with exemption 6C
Buy the Amphenol RF 095902537 – Reliable RF Cable Assemblies for Industrial Applications
Enhance your RF testing and wireless communication setups with our high-quality RF cable assembly featuring gold-plated connectors and PTFE insulators. Suitable for frequencies up to 6 GHz, these assemblies are designed for durability with over 500 mating cycles, ensuring consistent performance in demanding environments. Available in various lengths from 6 inches to 1000 mm, they provide secure connections for laboratory testing, wireless LAN antennas, mobile radios, and cellular systems. Trust in our quality for reliable, professional-grade RF applications.
Buy Amphenol RF 095902537 now and experience unmatched reliability and performance with high-frequency, durable RF cable assemblies
Frequently Asked Questions
Where can I buy AMPHENOL RF 095902537006?
You can click on the BUY or RFQ button to purchase 095902537006 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095902537006?
You can download the 095902537006 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095902537006?
AMPHENOL RF
