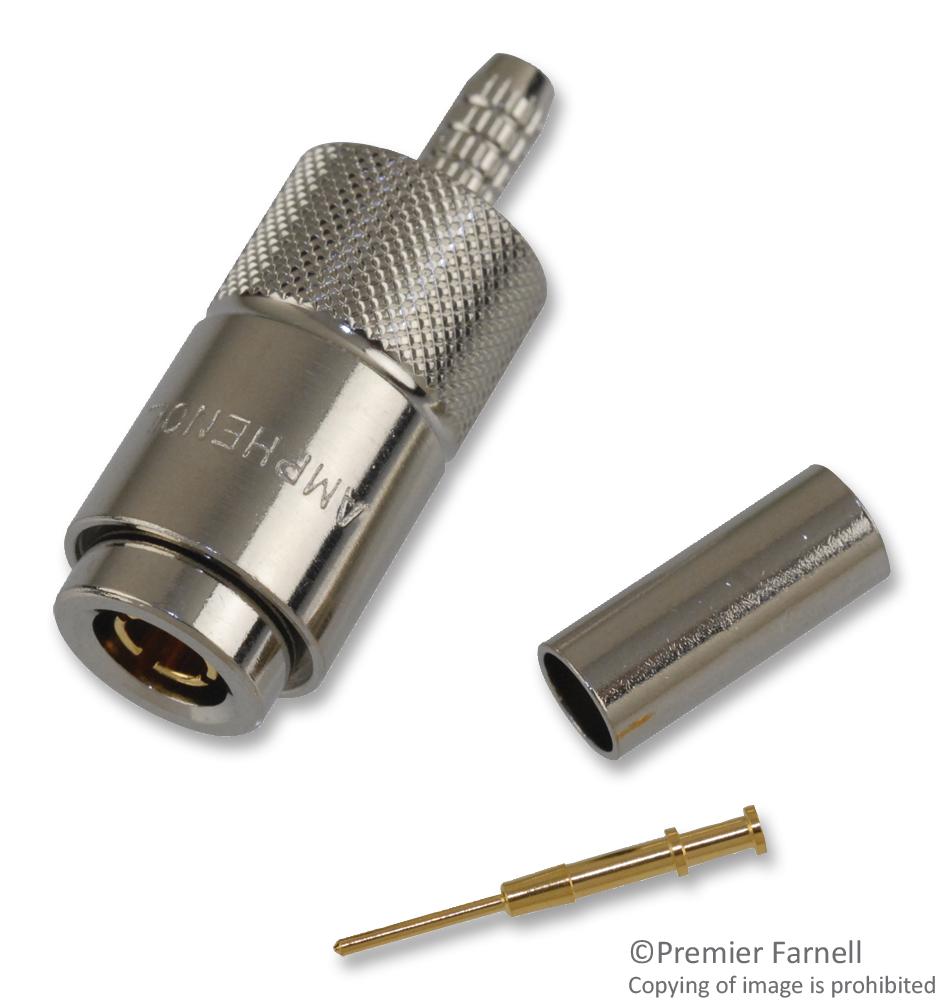

AMPHENOL RF 10279916 1.0/2.3 Connector
Amphenol's 1.0/2.3 connector series offers a robust and reliable solution for RF applications. The patented push-pull coupling mechanism ensures positive locking and simplifies installation, while the compact European design allows for dense connector packing. These connectors are suitable for a wide range of applications including amplifiers, base stations, cable assemblies, routers, and switching equipment. They comply with international specifications like DIN 41626 and NFC 93-571, and are available with various plating and termination options to meet diverse requirements.
AMPHENOL RF 10279916 1.0/2.3 Connector Specifications:
- Impedance: 50 Ω
- Frequency range: DC - 10 GHz
- VSWR: 1.06 max. @ DC - 1 GHz
- VSWR_2: 1.13 max. @ 1 - 4 GHz
- VSWR_3: 1.22 max. @ 4 - 10 GHz
- Voltage rating: ≥ 250 Vrms (depending on cable)
- Contact resistance_center: ≤ 10 mΩ
- Contact resistance_outer: ≤ 3 mΩ
- Insulation resistance: 10,000 MΩ minimum
- Mating: Slide-on, push-pull, threaded
- Attachment method_inner: Crimp
- Attachment method_outer: Clamp
- Cable affixment_braid: Crimp
- Cable affixment_jacket: Crimp or solder
- Engagement force: ≤ 2.3 lbs (10N)
- Disengagement force: ≥ 2.3 lbs (10N)
- Durability: 500 cycles minimum
- Temperature range: -40°C to +155°C
- Body and contacts: Brass and beryllium copper, nickel and gold plated
- Male contact: Brass, gold plated
- Female contact: Beryllium copper center and outer, gold plated
- Crimp ferrule: Copper or brass
- Insulator: PTFE
Buy the 102-799-16 AMPHENOL RF 1.0/2.3 Connector | myMectronic
Purchase the Amphenol 102-799-16 connector securely online for your RF interconnection needs.
