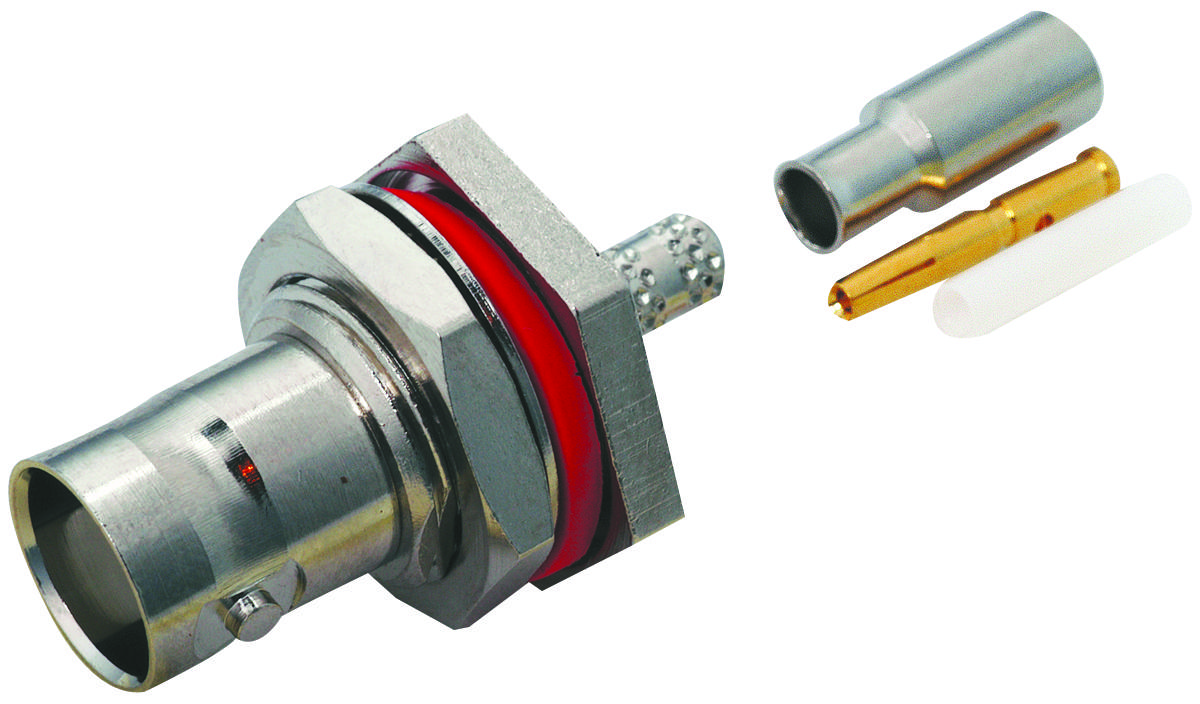

Amphenol RF 112234 BNC Connector
The 112234 is a BNC straight crimp jack featuring gold-plated phosphor bronze contacts, a nickel-plated brass body, and a Delrin insulator. It is a bayonet-style connector that allows for quick connection and disconnection with a secure locking mechanism. Mating is achieved with a quarter turn of the coupling nut. Designed to accommodate a wide range of RG and industry-standard cables, this 50Ω miniature BNC connector is suitable for cables such as LMR-100, RG-174, RG-188, RG-188A, and RG-316. It offers standard polarity, a minimum insulation resistance of 5,000 MΩ, and can withstand at least 5,000 mating cycles. Applications include RF communications, networking, automotive, computer peripherals, medical devices, sensing, and instrumentation.
Amphenol RF 112234 BNC Connector Specifications:
- Impedance: 50 ohm
- Contact Material: Gold-plated phosphor bronze
- Body Material: Nickel-plated brass
- Insulator Material: Delrin
- Frequency Range: 0-4 GHz
- Working Voltage: 500 Volts rms
- Dielectric Withstanding Voltage: 1500 Volts rms
- Insulation Resistance: ≥5000 MΩ
- Durability: ≥5000 mating cycles
- Connection Type: Bayonet lock with quarter turn coupling
- Compatible Cables: RG-174, RG-188, RG-188A, RG-316, industry standard cables
- Application Areas: RF communications, networking, automotive, medical, sensing, instrumentation
Buy the Connex 112234 U+2013 Reliable RF Coaxial Connectors for Industrial Applications
Purchase the Connex BNC Connector online today to ensure high-quality, durable RF connections across various industrial and communication systems. Featuring gold-plated contacts for optimal signal integrity, a nickel-plated brass body for corrosion resistance, and a Delrin insulator for electrical insulation, this connector is designed for quick bayonet locking, enabling secure and reliable mating. Compatible with industry-standard cables like RG-174 and RG-316, it supports frequencies up to 4 GHz and has a minimum insulation resistance of 5000 MΩ, making it ideal for RF, networking, medical, and instrumentation applications. Order now for fast delivery and superior performance.
Buy Connex 112234 now and experience unmatched reliability and performance in RF communication and networking applications.
Frequently Asked Questions
Where can I buy Amphenol RF 112234?
You can click on the BUY or RFQ button to purchase 112234 from an authorized Amphenol RF distributor.
How do I troubleshoot issues or seek technical support for part 112234?
You can download the 112234 datasheet or visit the Amphenol RF website for support.
Who is the manufacturer of 112234?
Amphenol RF
