AMPHENOL RF 112252 RF Coaxial Connector
The 112252 is a crimp BNC Straight Jack connector designed for RF coaxial cables such as LMR-100, M17/119-RG174, RG174, RG188, RG188A, and RG316. It features a nickel-plated brass body, gold-plated phosphor bronze contacts, and a natural PTFE insulator. This connector employs a standard polarity and bayonet coupling mechanism, supporting up to 500 mating cycles. Its temperature range is from -65°C to 165°C. It is suitable for RF communication and industrial applications.
AMPHENOL RF 112252 RF Coaxial Connector Specifications:
- Impedance: 50 ohm
- Material: Nickel-plated brass body, gold-plated phosphor bronze contacts, PTFE insulator
- Temperature Range: -65°C to 165°C
- Cycle Life: Up to 500 mating cycles
- Type: Straight BNC jack, bayonet coupling
- Supported Cables: LMR-100, RG174, RG188, RG188A, RG316
- Voltage Rating: 500 Volts rms.
- Dielectric Withstanding Voltage: 1500 Volts rms.
- Contact Resistance: Center contact 1.5 milliohm, Outer contact 1.0 milliohm
- Insulation Resistance: >5000 Megohms
- Connector Finish: Nickel body, optional silver plating available
- Dimensions: Standard BNC interface, detailed dimensions available in datasheet

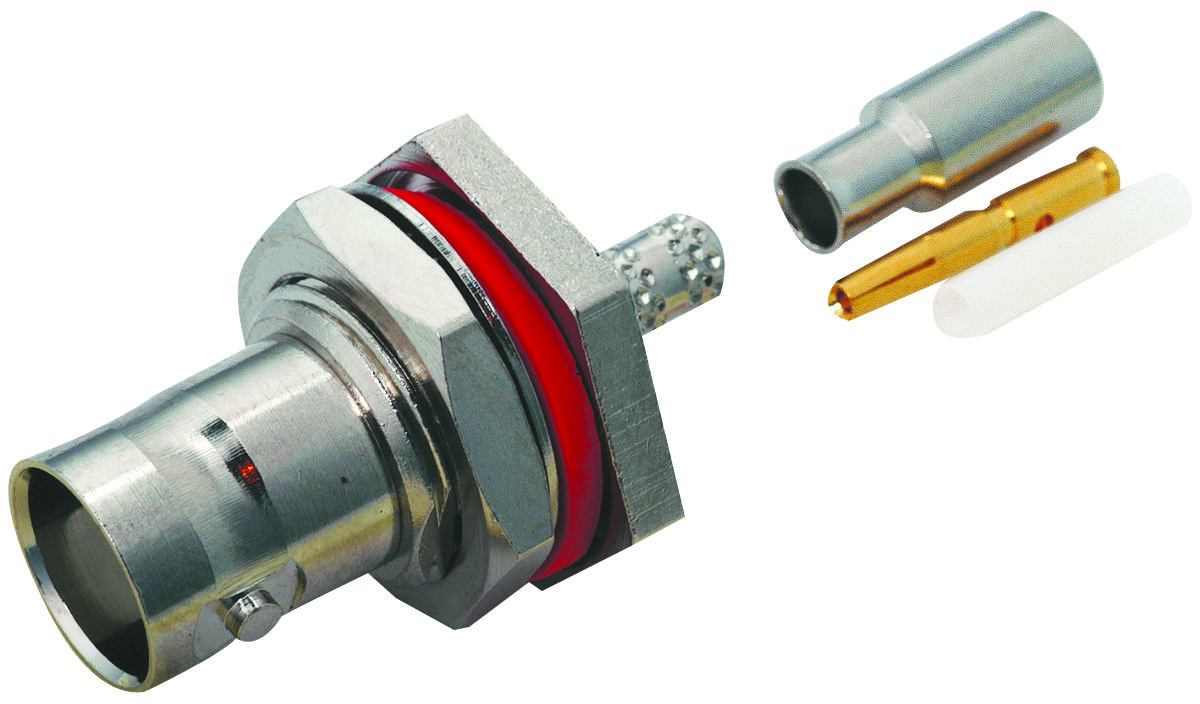

Buy the Connex 112252 – Reliable RF Coaxial BNC Connector for Industrial Applications
Get the Connex 112252 RF Coaxial BNC Straight Jack connector online now and enjoy top-quality RF connections for industrial, communication, and test equipment. Designed with durable nickel-plated brass, gold-plated contacts, and a PTFE insulator, this connector supports up to 500 mating cycles with a temperature range from -65°C to 165°C. Its compact design and reliable bayonet coupling make it ideal for RF communication systems, test setups, and industrial applications. Purchase today for fast shipping and dependable performance.
Order your Connex 112252 Crimp BNC Straight Jack today and ensure reliable RF connections for industrial and communication projects with confidence.
Frequently Asked Questions
Where can I buy AMPHENOL RF 112252?
You can click on the BUY or RFQ button to purchase 112252 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 112252?
You can download the 112252 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 112252?
AMPHENOL RF
