AMPHENOL RF 112507 RF BNC Connector
The 112507 is a BNC series RF connector, featuring a straight crimp-male style plug with gold-plated brass contacts. Its body is made of brass with a nickel-plated finish, and it uses a Delrin insulator. This bayonet-style connector allows for quick and secure connection and disconnection through a simple quarter-turn of the coupling nut, which provides a positive locking mechanism. Designed for 75 ohm impedance, it ensures high-performance, low-distortion signal transmission suitable for applications requiring true 75-ohm connectivity. Compatible with Belden cables such as 1426A, 1505A, 8281, 9100, 9278, and RG-59 20 AWG coaxial cable. The connector offers a minimum insulation resistance of 5000 Megaohms, withstands up to 500 mating cycles, and operates reliably within a temperature range of -40°C to 85°C. Ideal for RF communications, networking, automotive, computer peripherals, medical devices, sensing, and instrumentation applications.
AMPHENOL RF 112507 RF BNC Connector Specifications:
- Impedance: 75 ohm
- Body Material: Brass, Nickel plated
- Insulator Material: Delrin
- Contact Material: Brass, Gold plated
- Connection Style: Bayonet lock, quarter-turn coupling nut
- Voltage Rating: 500 Volts rms
- Working Voltage: 500 Volts rms
- Dielectric Withstanding Voltage: 1500 Volts rms
- Contact Resistance: Center contact 1.5 milliohm, Outer contact 1.0 milliohm
- Insulation Resistance: Minimum 5000 Megaohms
- Temperature Range: -40°C to 85°C
- Compatibility: Connects with standard BNC interface, compatible with various RG coax cables
- Durability: Up to 500 mating cycles

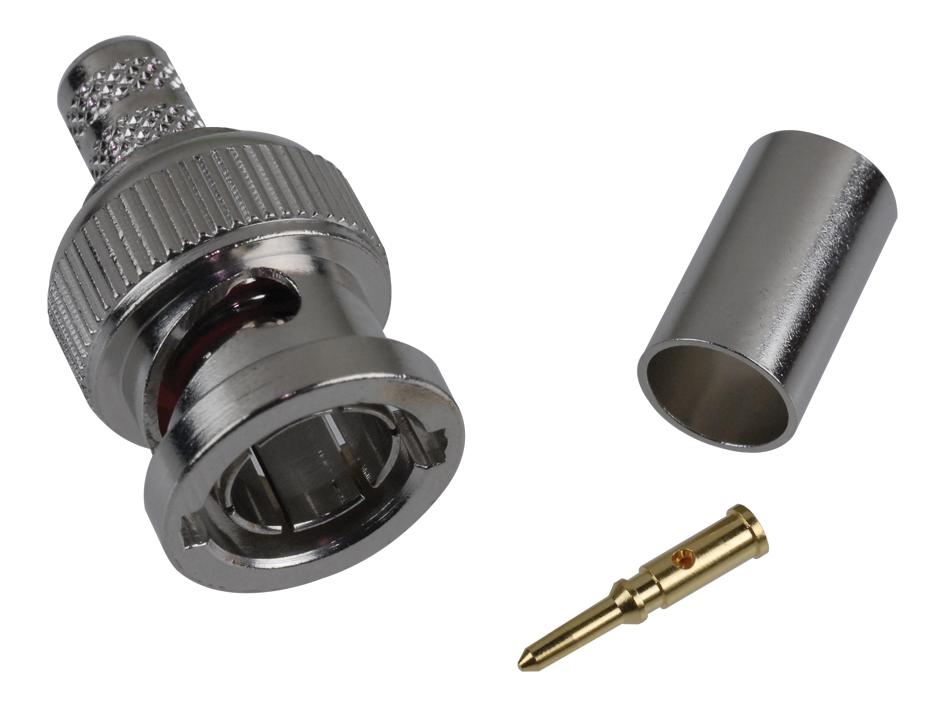

Buy the Connex 112507 – Reliable 75 Ohm RF Connector for Industrial Applications
Enhance your RF connections with this high-quality 75 ohm BNC connector featuring gold-plated brass contacts, a brass body with nickel finish, and a secure bayonet lock. Designed for superior signal integrity and reliable performance, it withstands many mating cycles and operates efficiently within a wide temperature range. Compatible with popular coax cables like RG59 and Belden series, this connector ensures minimal signal loss and distortion, making it ideal for RF communications, networking, automotive, and medical applications. Buy online now for quick delivery and professional-grade connectivity.
Order your Connex 112507 series, high-performance 75 ohm RF connector today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL RF 112507?
You can click on the BUY or RFQ button to purchase 112507 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 112507?
You can download the 112507 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 112507?
AMPHENOL RF
