AMPHENOL RF 112512 BNC Connector

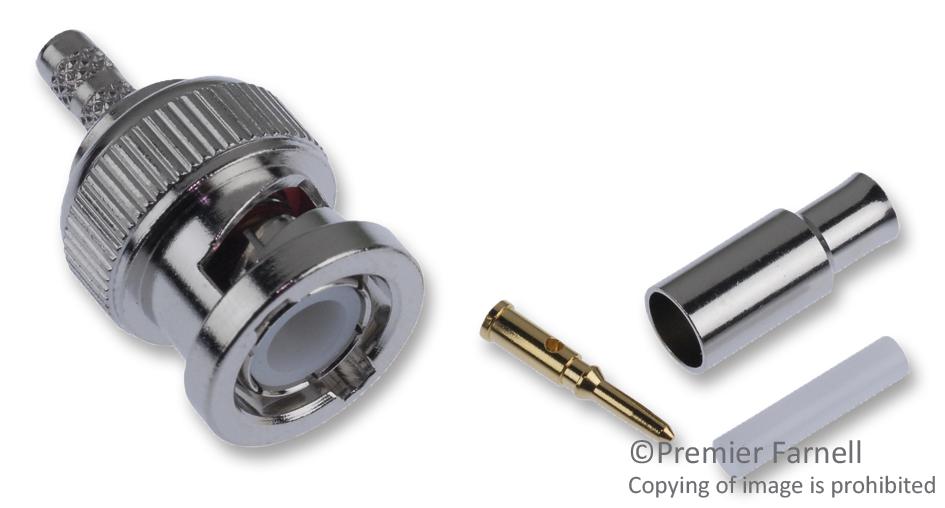

The 112512 is a BNC straight crimp plug featuring a gold-plated brass contact and a brass body with a nickel-plated finish. It includes a Delrin insulator and is compatible with M17/152-RD316, RG-179, RG-188, and RG-316 double-braided cables. The connector utilizes a bayonet coupling mechanism, supports standard polarity, and offers durability for up to 500 mating cycles. It operates within a temperature range of -40°C to 85°C and is suitable for RF communication applications.
AMPHENOL RF 112512 BNC Connector Specifications:
- Impedance: 75 ohm
- Contact Material: Brass, gold-plated
- Body Material: Brass, nickel-plated
- Insulator: Delrin polymer
- Operating Temperature Range: -40°C to 85°C
- Coupling Mechanism: Bayonet lock
- Durability: Up to 500 mating cycles
- Compatible Cables: M17/152-RD316, RG-179, RG-188, RG-316 double-braided
- Dimensions: Length approximately 21.3 mm, diameter 12.0 mm
- Voltage Rating: 500 Volts RMS
- VSWR: 1.06:1 at 2000 MHz
Buy the Buy Connex BNC Crimp Plug Part Number 112512 Online
Order the Connex BNC Connector 112512 online today for a high-quality RF connection. Featuring a gold-plated brass contact, durable brass body, and Delrin insulator, this connector is ideal for professional antenna, test, and communication systems. Its bayonet lock ensures secure coupling while supporting up to 500 mating cycles. Suitable for frequencies up to 4 GHz, operate within -40°C to 85°C, and handle voltages up to 500V RMS. Buy now for reliable, industry-standard performance in your RF setups.
Get Connex 112512 today—built for RF precision, reliable connection, and long-lasting durability in high-frequency applications.
Frequently Asked Questions
Where can I buy AMPHENOL RF 112512?
You can click on the BUY or RFQ button to purchase 112512 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 112512?
You can download the 112512 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 112512?
AMPHENOL RF
