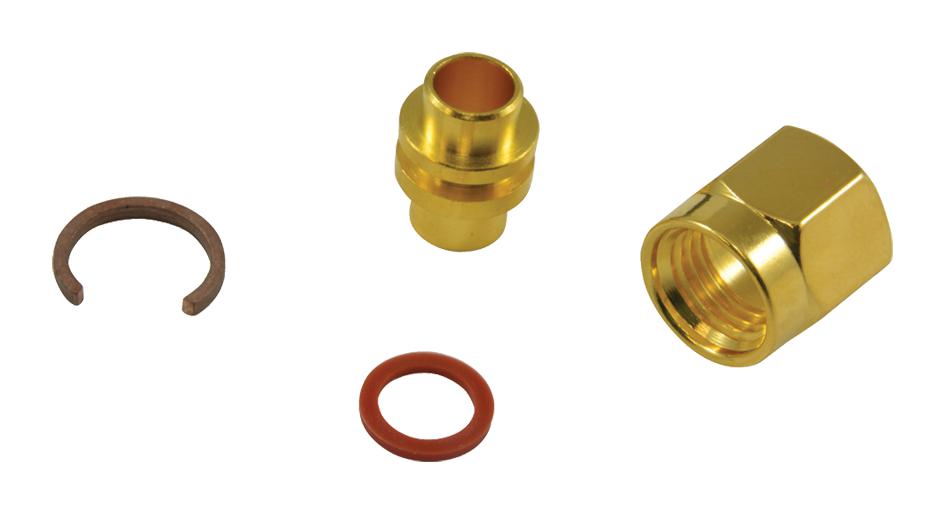

AMPHENOL RF 132100 SMA Coaxial Connectors
The Connex SMA coaxial connectors are semi-precision, high-frequency components designed for broadband performance from DC to 18 GHz. These connectors provide low reflection, constant 50 ohm impedance, and high mechanical strength for reliable use. Constructed with materials like stainless steel, brass, and PTFE insulators, they comply with MIL standards. Suitable for semi-rigid and flexible cables, they feature various mounting options including panel and bulkhead mounts, and are ideal for RF, microwave, and communication applications requiring durability and precision.
AMPHENOL RF 132100 SMA Coaxial Connectors Specifications:
- Impedance: 50 ohm
- Frequency range: 0-18 GHz (semi-rigid cable), 0-12.4 GHz (flexible cable)
- Voltage rating: 500V peak (RG-58, 141, 142, 223), 375V peak (RG-174, 188, 316)
- Dielectric withstanding voltage: 1000V RMS (semi-rigid), 750V RMS (flexible)
- VSWR: 1.05 + 0.005f (semi-rigid), 1.15 + 0.01f (RG-58), 1.20 + 0.025f (RG-178)
- Contact resistance: 2.0 milliohms (center and body), 0.5 milliohms (braid to body)
- Insulation resistance: 5000 Megohms
- RF leakage: -90 dB min at 2-3 GHz
- Materials: Non-magnetic stainless steel, brass, beryllium copper, PTFE insulators, nickel or gold plating
- Mechanical features: High durability, suitable for panel mounting, with various configurations including straight, right-angle, bulkhead, and panel mount options.
- Standards: MIL-C-39012 & MIL-C-83517, UL, CSA
Buy the Connex Series SMA Coaxial Connectors: 50 Ohm Impedance, 0-18GHz
Discover the reliable high-frequency SMA coaxial connectors designed for broadband performance, low VSWR, and durable construction. Ideal for RF, microwave, and communications systems requiring precision, these connectors meet MIL standards and feature easy mounting options. Whether for semi-rigid or flexible cable setups, these connectors deliver consistent, low reflection signals from DC to 18 GHz, ensuring optimal system performance. Shop online today to enhance your RF and microwave communication solutions with superior quality and dependability.
Buy Connex SMA coaxial connectors now and experience unmatched reliability and performance for high-frequency RF and microwave applications.
Frequently Asked Questions
Where can I buy AMPHENOL RF 132100?
You can click on the BUY or RFQ button to purchase 132100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 132100?
You can download the 132100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 132100?
AMPHENOL RF
