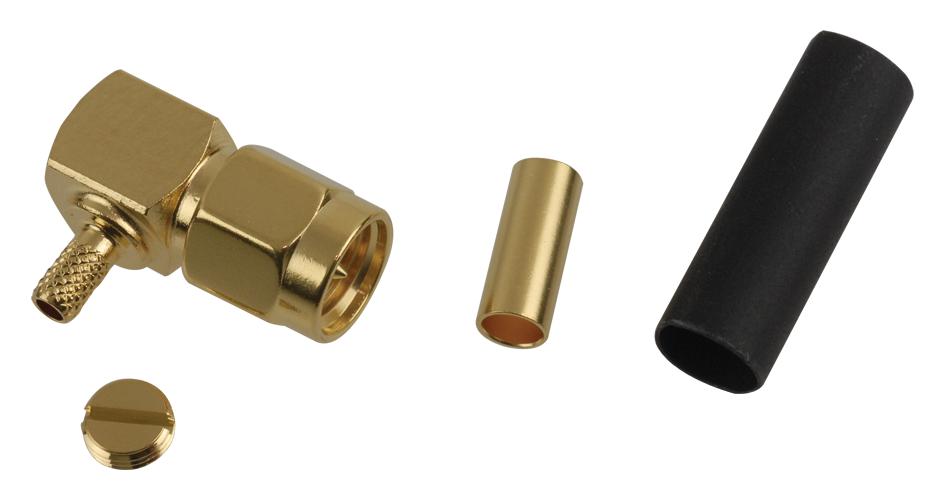

AMPHENOL RF 132123 SMA Connector
The part is a right-angle SMA crimp connector designed for use with RF coaxial cables such as LMR-100, M17/119-RG174, RG174, RG188, RG188A, and RG316. It features a gold-plated brass body and contacts, with a natural PTFE insulator. The connector has a standard polarity, threaded coupling mechanism, and is rated for up to 500 mating cycles. It operates within a temperature range of -65°C to 165°C, making it suitable for RF communication and industrial applications.
AMPHENOL RF 132123 SMA Connector Specifications:
- Impedance: 50 ohm
- Material: Brass, gold-plated
- Insulation: PTFE (Teflon)
- Temperature Range: -65°C to 165°C
- Connection Type: Crimp
- Polarity: Standard
- Mating Cycles: Up to 500
- Thread Type: Threaded (1/4-36UNS-2B)
- Physical Dimensions: Length approximately 22.2 mm, width 8.4 mm, height 14.2 mm
- Operating Frequencies: DC to 18 GHz for semi-rigid cable, DC to 12.4 GHz for flexible cable
- Voltage Rating: 500 V peak
Buy the Buy Connex SMA Crimp Connector Part Number 132123 Online
Get your Connex SMA Crimp Connector Part Number 132123 now available online. This high-performance RF coaxial connector features a gold-plated brass body, PTFE insulator, and threaded coupling. Designed for DC to 18 GHz frequencies, it supports up to 500 mating cycles and operates reliably in temperatures from -65°C to 165°C. Perfect for RF communication, industrial, and military applications, it guarantees excellent signal integrity and durability. Purchase today for seamless, professional-grade connections that meet industry standards.
Order your Connex SMA Crimp Connector Part Number 132123 today and ensure reliable RF connections with high-quality, durable performance suitable for industrial and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF 132123?
You can click on the BUY or RFQ button to purchase 132123 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 132123?
You can download the 132123 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 132123?
AMPHENOL RF
